Clarion CC2001E [9/10] Caution

284-0877-01

CC-2011E 9

English

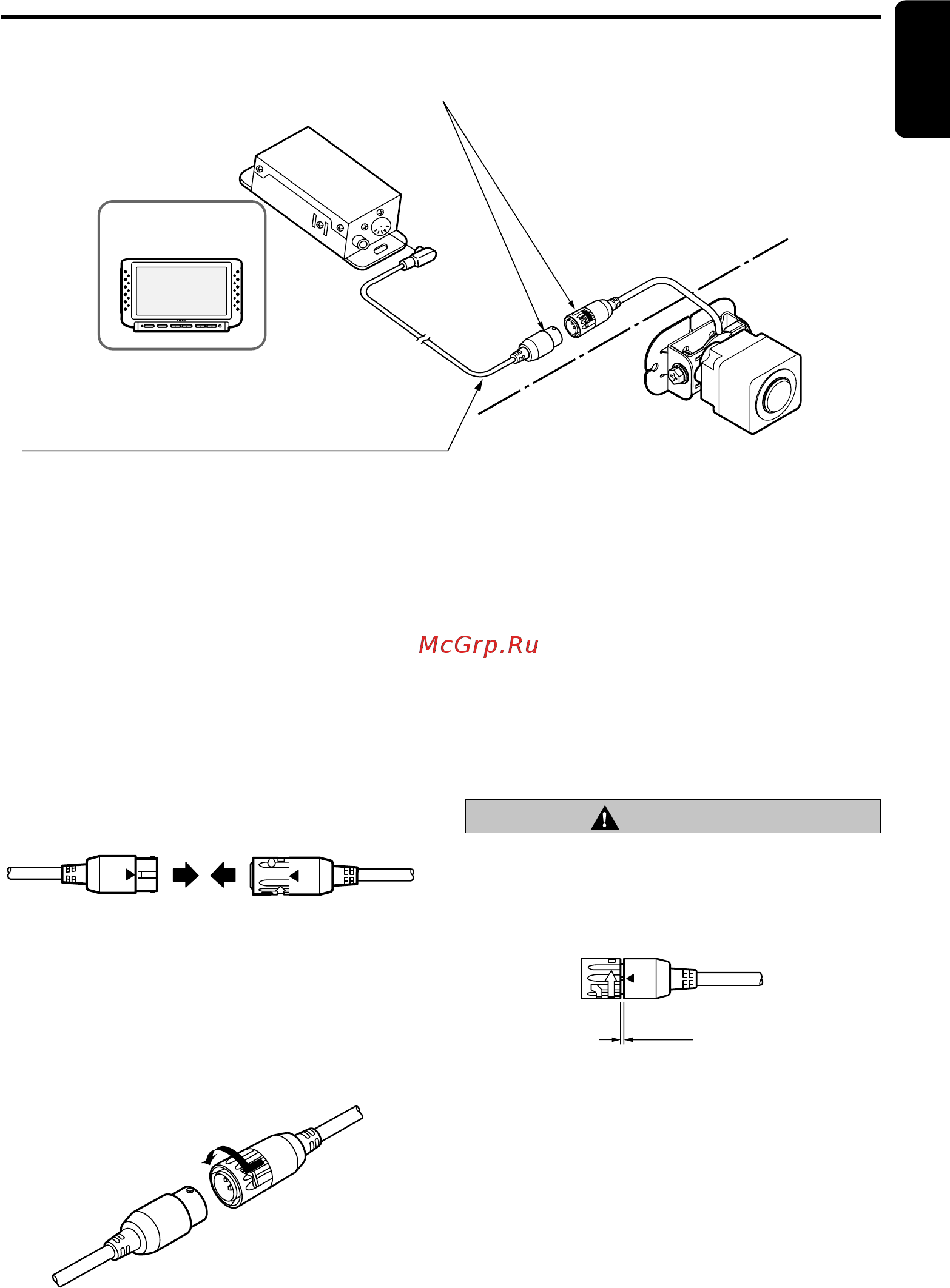

Wiring

Exclusive waterproof relay cable (sold separately)

Inside the vehicle

Outside the vehicle

Securely tighten the connectors.

CCD camera

power supply box

Monitor for

Clarion rear-view

ADJ

POWER

SELECT IRIS

ZOOM

CAM1/DIM

MODE

CCA-532-100 (7 m)

CCA-533-100 (10 m)

CCA-534-100 (15 m)

Note:

• See the Instruction Manual supplied with the

monitor for information regarding wiring,

operation, and composition of the monitor unit.

■

Waterproof Connector Fastening Procedure and Cautions

1 w Mark : Align the arrow marks on both

connectors in order to connect the cable.

Exclusive waterproof

relay cable (female)

Camera cable (male)

2 Hold the two connectors together and twist

the ring on the camera cable’s connector as

far as it will go.

Twist the ring in the direction

of the arrow while holding both

connectors together.

Twist the yellow ring until there is no gap

between the ring and the connector.

Should there be any gap between the ring and

the connector, twist the ring to close it.

Gap

CAUTION
