12
TASCAM CD-200SB
2 – Names and functions of parts

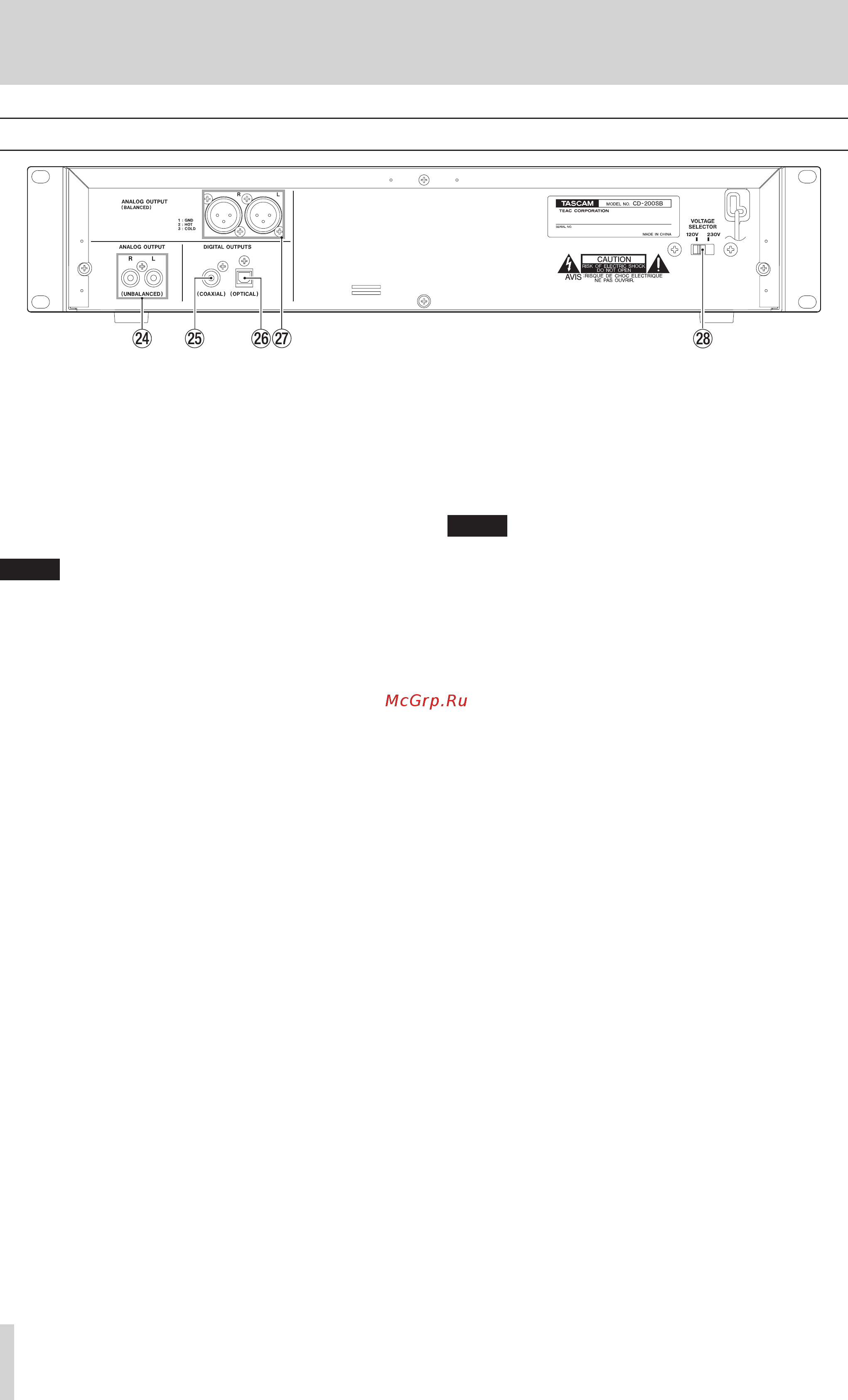

Rear panel
f ANALOG OUTPUT (UNBALANCED) jacks
These jacks output analog signals (–10 dBV) of the
CD, SD card or USB flash drive playback sound signal.
g DIGITAL OUTPUTS (COAXIAL) jack
This jack outputs the CD, SD card or USB flash drive playback
signal in S/PDIF digital format.
h DIGITAL OUTPUTS (OPTICAL) jack
This jack outputs the CD, SD card or USB flash drive playback
signal in S/PDIF digital format.
NOTE
•
The sampling frequency of this unit’s digital output is always
44.1 kHz regardless of the playback media/file sampling
frequency.
•
Digital output is possible when the pitch control function is
on with Audio CD or Data CD, but the sampling frequency
is changed by an amount proportional to the pitch control
value.
j ANALOG OUT (BALANCED) connectors
These balanced analog connectors output the playback
signals from CDs, SD cards and USB flash drives.
The maximum output level is +20 dBu (1: GND, 2: HOT, 3:
COLD).
k VOLTAGE SELECTOR
Switches the voltage to either 230 V or 120 V.
NOTE
•
The voltage selector is only available on units for specific
markets.
•
In North America, use only on 120V supply.
