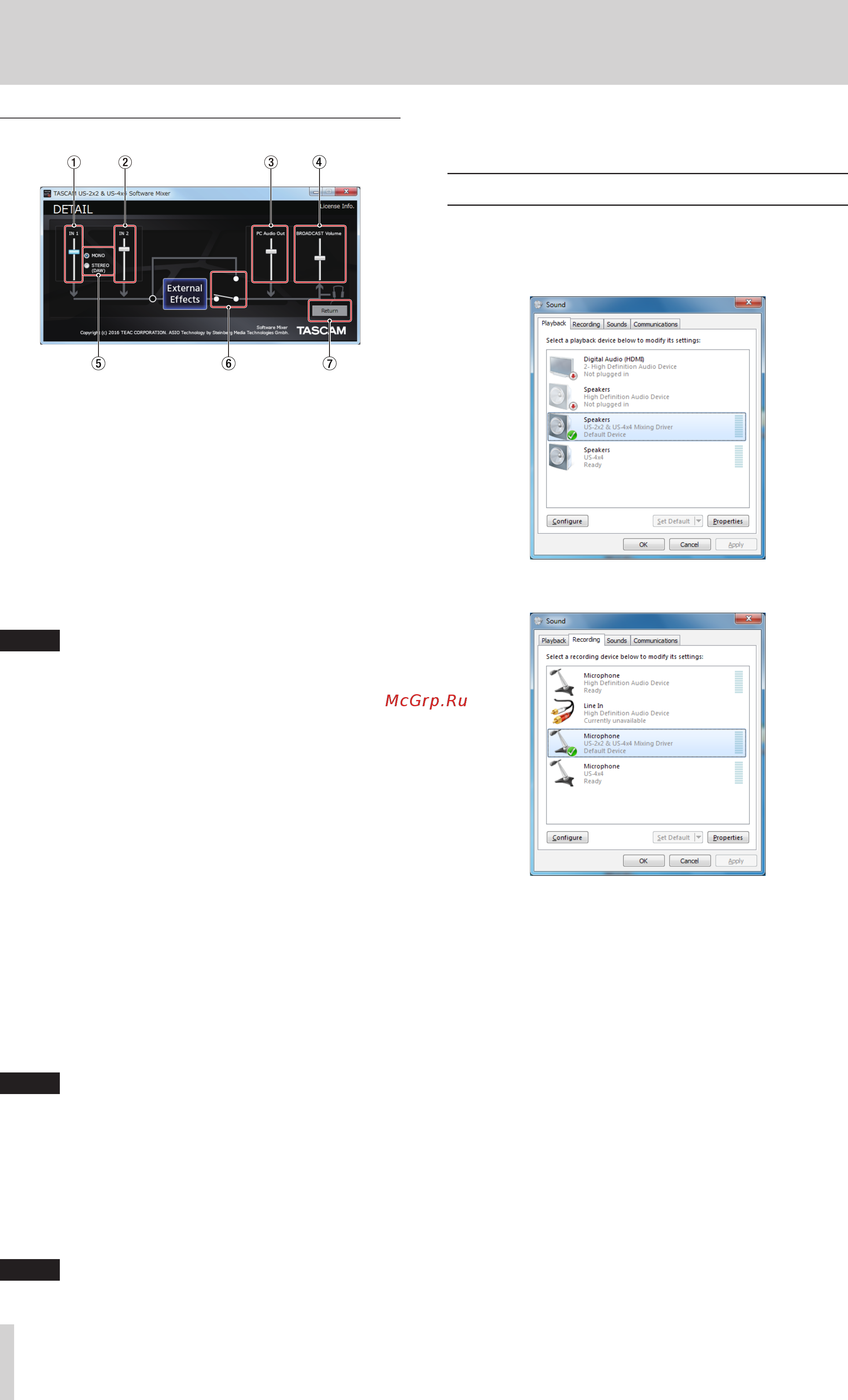

18
TASCAM US-2x2/US-4x4
8 – Using the Software Mixer (for Windows)
DETAIL screen settings
Software Mixer DETAIL screen
1 IN 1 volume slider
Use to adjust the volume input through the unit's IN1 jack.
2 IN 2 volume slider
Use to adjust the volume input through the unit's IN2 jack.
3 PC Audio Out volume slider
Use to adjust the playback volume of Windows Media Player
and karaoke apps.
4 BROADCAST Volume slider
Use to adjust the playback volume of Sound Recorder and
karaoke apps. Use this also to adjust the broadcast volume
with live broadcast apps.
NOTE
• Turn the MONITOR BALANCE knob on the unit all the way
to the right (COMPUTER) to check levels while adjusting the
volume sliders.
• Double-click a volume slider to reset it to its default value.
5 MONO/STEREO (DAW) selection
Use to set whether the input signal is handled as “MONO” or
“STEREO (DAW)”.
Options
“MONO”
When using one mic (connected to the IN1 jack), it will be
treated as input from both “IN 1” and “IN 2”. The audio from
“IN 1” will be heard from both left and right headphone
channels. In most circumstances, select this when using a
mic for a live broadcast, for example.
“STEREO (DAW)”
Even when using one mic (connected to the IN1 jack), it
will not be treated as being input from both “IN 1” and “IN
2”. It will be treated as only being input from “IN 1”. The
audio from “IN 1” will be heard from the left headphone
channel, and audio from “IN 2” will be heard from the
right headphone channel. Use this if a keyboard or other
stereo audio sources is being input for live broadcasting
or karaoke.
NOTE
When “DAW” mode is selected, if set to “MONO”, this will
automatically be switched to “STEREO (DAW)”.
6 External Effects switch
When a check (4) is in the “MODE” item “External Effects
(ASIO)” checkbox, this switch will be set to the “External
Effects” side and light.
7 Return
Return to the previous screen.
NOTE
When using a US-4x4 in “BROADCAST/KARAOKE” mode,
input is only possible through the IN1 and IN2 jacks. When
using it for live broadcasting and karaoke, connect mics to
the IN1 and IN2 jacks.
Setting the playback/recording device
When using the Software Mixer, set the default device to
“US-2x2 & US-4x4 Mixing Driver” on the Recording and Playback
tabs. See “7 – Application Guide” on page 15 for information
about setting the playback/recording device.
Playback device settings
Recording device settings
