10
11
EN
x 4
x 16
approx. 350 mm
x 1
x 1
x 4x 8
x 2
560 + 1 mm

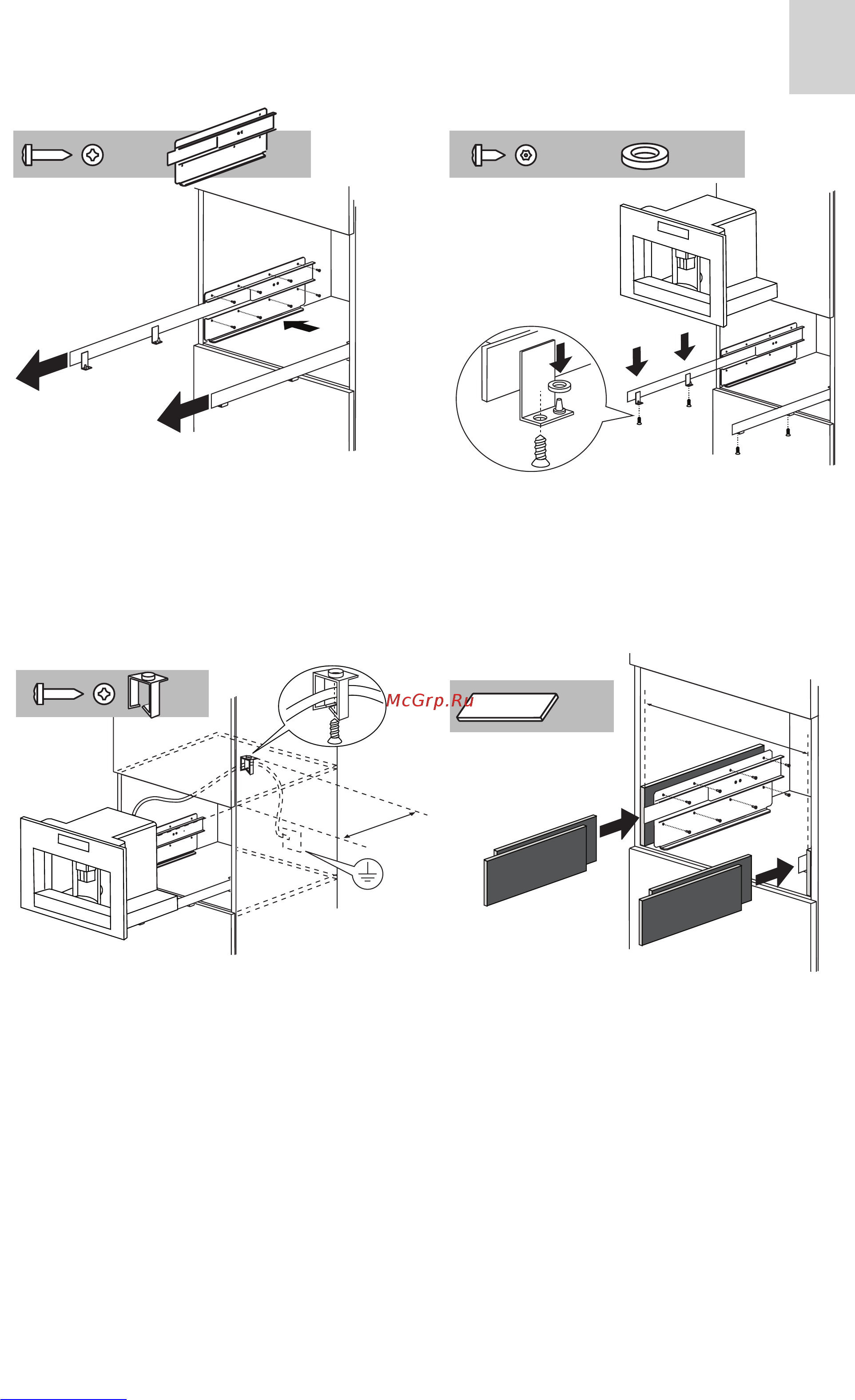

Position the rails on the sides of the cabinet as shown in the
gure.
Fix with the screws, then extract them completely.
If the coee maker is installed over a warmer drawer, use the top
surface of this as a reference to position the rails.
In this case, there will be no surface to rest the rails on.
x 4
x 16
approx. 350 mm
x 1
x 1
x 4x 8
x 2
560 + 1 mm
Fix the power cable with the clip.
The power cable must be long enough to allow the appliance to
be extracted from the cabinet to ll the coee bean container.
The appliance must be earthed in compliance with legi-
slation.
Electrical connections must be performed by a qualied
electrician following the instructions.
x 4
x 16
approx. 350 mm
x 1
x 1
x 4x 8
x 2
560 + 1 mm
Position the appliance on the rails, making sure the pins are
correctly inserted in the housings, then x it with the screws
supplied.
If the height of the appliance requires adjusting, use the spacer
disks provided.
x 4
x 16
approx. 350 mm
x 1
x 1
x 4x 8
x 2
560 + 1 mm
If necessary, correct alignment of the appliance by positioning
the spacers supplied under or at the sides of the support.
