Сервисный мануал Страница: 12

Sony KDL-40X4500 [12/78] Kdl 40x4500

KDL-40/46/55X4500 (HK) 1-3

KDL-40X4500

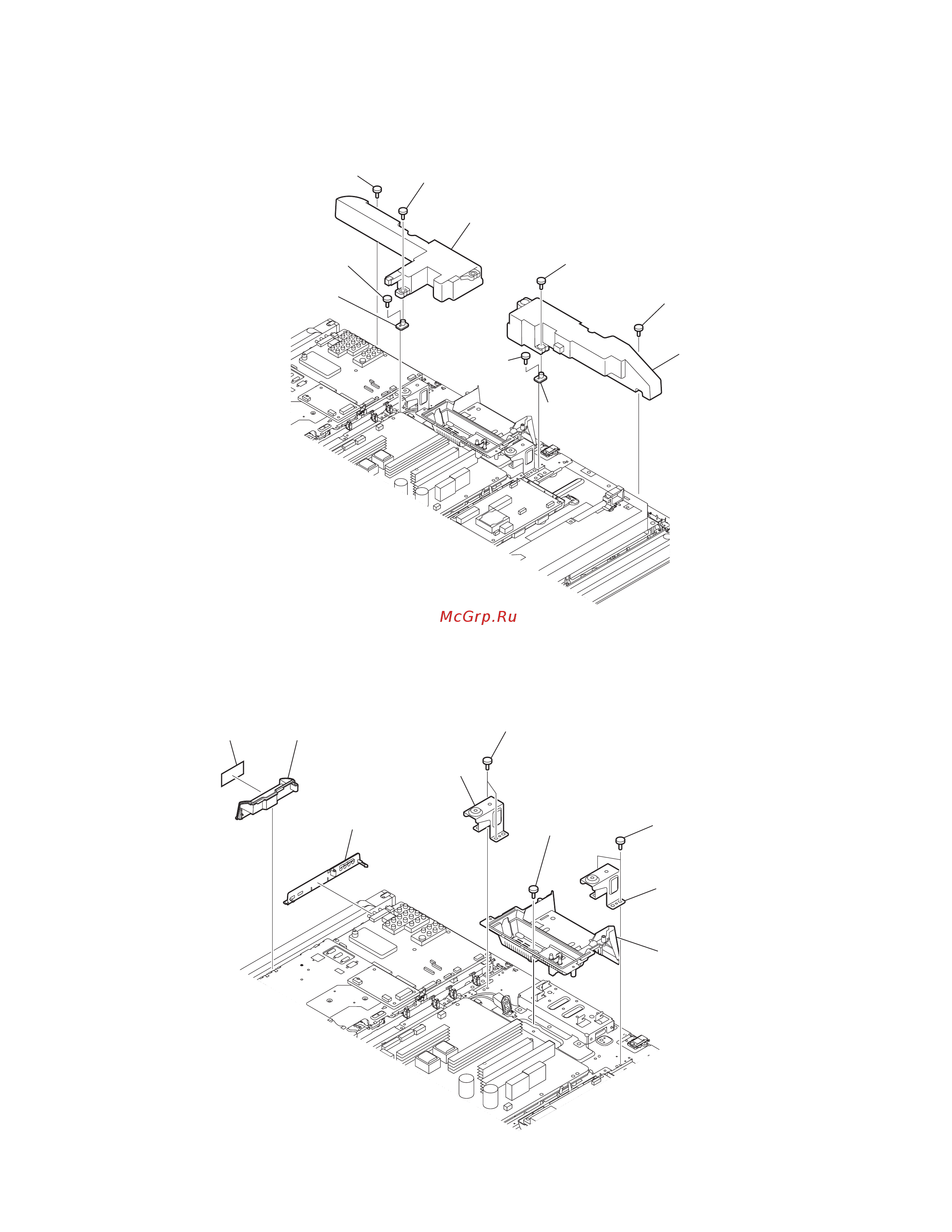

1-1-5. SP BOX ASSY (WOOFER) REMOVAL

1-1-6. UNDER COVER, SIDE JACK BRACKET AND CARD BRACKET REMOVAL

1 One screw

(+PWTP2 4X16)

1 One screw

(+PWTP2 4X16)

2 SP box assy

(WOOFER)

3 One screw

(+BVST 3X8)

4 AWF bracket

5 One screw

(+PWTP2 4X16)

5 One screw

(+PWTP2 4X16)

6 SP box assy

(WOOFER)

7 One screw

(+BVST 3X8)

8 AWF bracket

1 Two screws

(+PSW M4X8)

2 Vesa frame (BOTTOM)

assy

3 Two screws

(+PSW M4X8)

4 Vesa frame (BOTTOM)

assy

5 One screw

(+PSW M4X8)

7 Card bracket assy

8 MS cover

9 Side jack bracket (AEJ)

6 Under cover (40)
