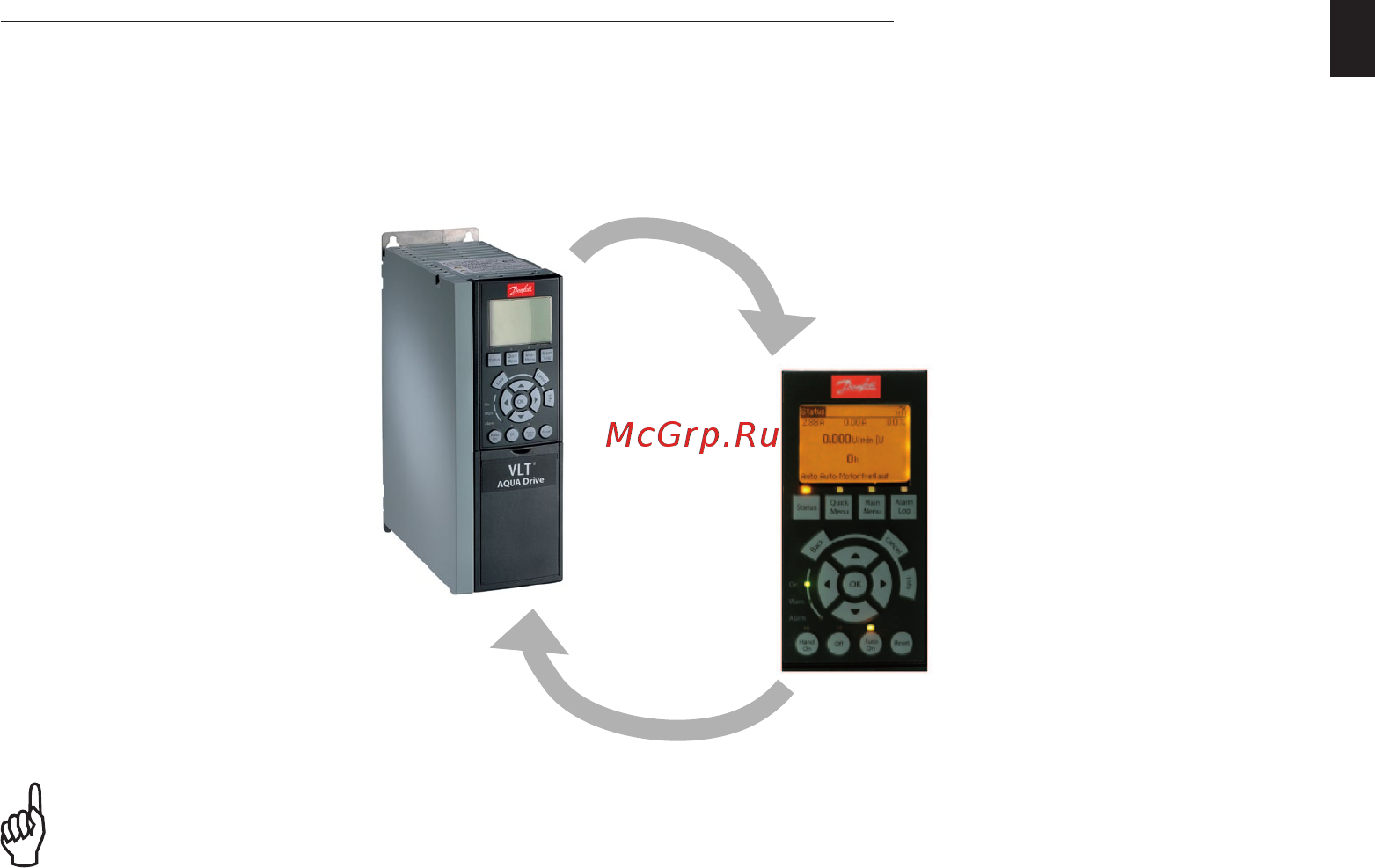

3.3 Using the LCP copy function (parameter 0-50) to transfer device parameters
The copy function can be used to store all unit parameters in the LCP 102 control panel. The stored parameters can be transferred to the same
unit of other units if necessary. The data is permanently stored (in EEPROM) in the LCP and can only be changed or deleted by overwriting with
new data. The parameters in the LCP memory can only be accessed by loading them back from the unit. Parameter 0-50 can be accessed by
pressing the [Main Menu] button and selecting menu „0-** Operation/Display“ or „0-5* Copy/Store“.
No motor data is transferred if „Load from LCP, only Fct.“ is selected.
Parameter 0-50: Load from LCP (All)
Parameter 0-50: Load from LCP (only Fct.)
Parameter 0-50: store in LCP
3
