4

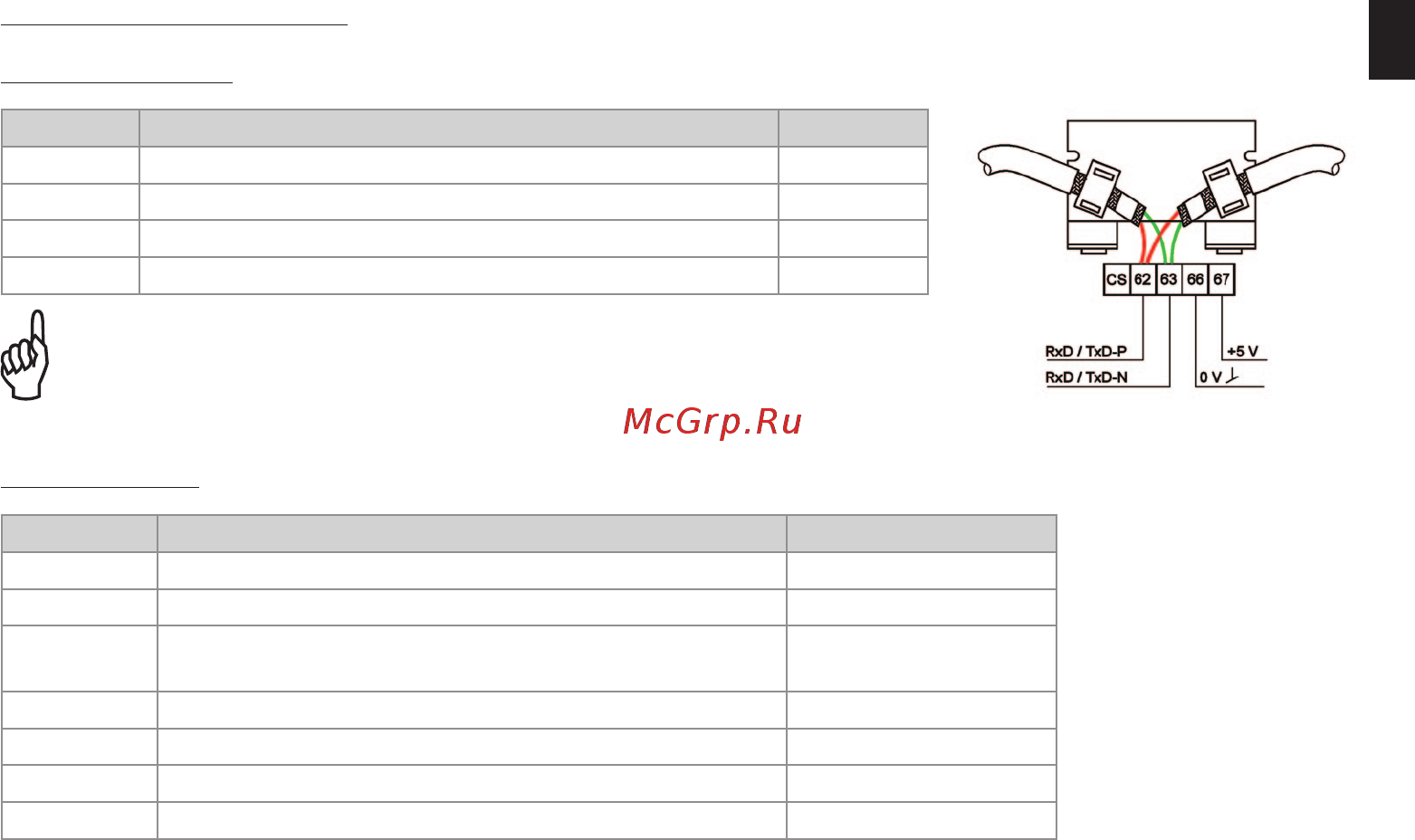

4. Profibus DP interface
4.1 General settings
The settings do not take effect until the Profibus interface
has been initialised (use parameter 9-72 to reset the interface or
switch the external 24 V supply off and back on).
4.2 Further settings
Parameter Description Setting
8 - 10 Control Word Profile See PLC
9 - 18 Profibus node address (set all address DIP switches to „ON“) 0–125
9 - 22 PPO type Automatic
9 - 63 Baud rate Automatic
Parameter Description Setting
8 - 01 Control Site Activate control word
8 - 02 Active control word Option A
8 - 50 … 8 - 56 Priorities between bus/terminal operation (observe parameter
8-01)
Application dependent
8 - 03 … 8 - 05 Control word timeout (defined response to bus failure) Application dependent
8 - 07 Diagnosis Trigger (disable in case of doubt) See PLC
9 - 15 … 9 - 16 PCD Configuration See PLC
9 - 27 … 9 - 28 PCW/PCD enabled/disabled Enabled
