Elenberg DW-600 [17/24] Installation instructions

Electrical Instructions:

An electrical supply of 220-240 volts AC only, 50Hz is required. Make sure that a

suitable electrical supply socket is located close to where the dishwasher is to be

placed. For your personal safety, the appliance must be earthed. The appliance

is equipped with a power supply cord having a 3-pin grounding plug. To minimize

possible shock hazards it must be plugged into a matching 3-pin grounding type

electrical outlet.

If the mains plug is unsuitable for the socket outlet in your home or is removed for

any other reason, then the cut off plug should be disposed of safety to prevent the

hazard of electric shock

SAVE THESE INSTRUCTIONS

1. Remove all packing materials carefully

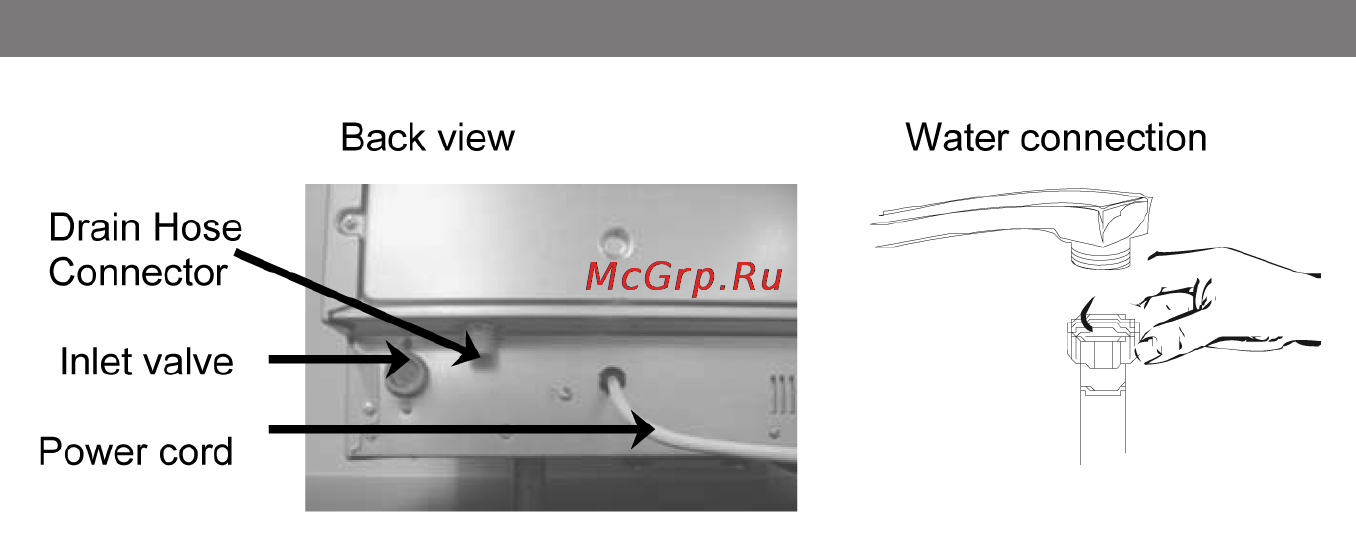

2. The water inlet hose from the machine terminates in a ℃” female connector. The

water supply should therefore terminate in a similar male connector and should

have a stopcock close by in the pipe. Connect the straight connector of the inlet

hose to the water supply securely. Connect the other end (bent connector) to the

water inlet valve at the back of the dishwasher cabinet. Do not over-tighten to

avoid damage to threads.

3. Prepare the drainage hose so that it has hooked end. Use the plastic U-bend

fitting provided for this purpose. The end of this should be dropped into a

drainage standpipe, the maximum height of which should be no more than 6”

above the base of the dishwasher. To allow for an air gap around the end of the

drain hose, the diameter of the standpipe should be at least 30 mm. Connect the

other end of the drain hose (L shaped) to the drain port connection at the back

of the dishwasher cabinet. Tighten the drain hose end on to the drain port using

the metal clip included in the package.

4. If you so wish, you may connect the water inlet hose on to the kitchen sink tap.

You must obtain correct fittings/adaptors to match the inlet hose connectors to

ensure secure connection. However, permanent plumbing is recommended.

5. If leaks are located, immediately shut the water supply and check the hose

connections fully. Tighten connections if necessary.

INSTALLATION INSTRUCTIONS
