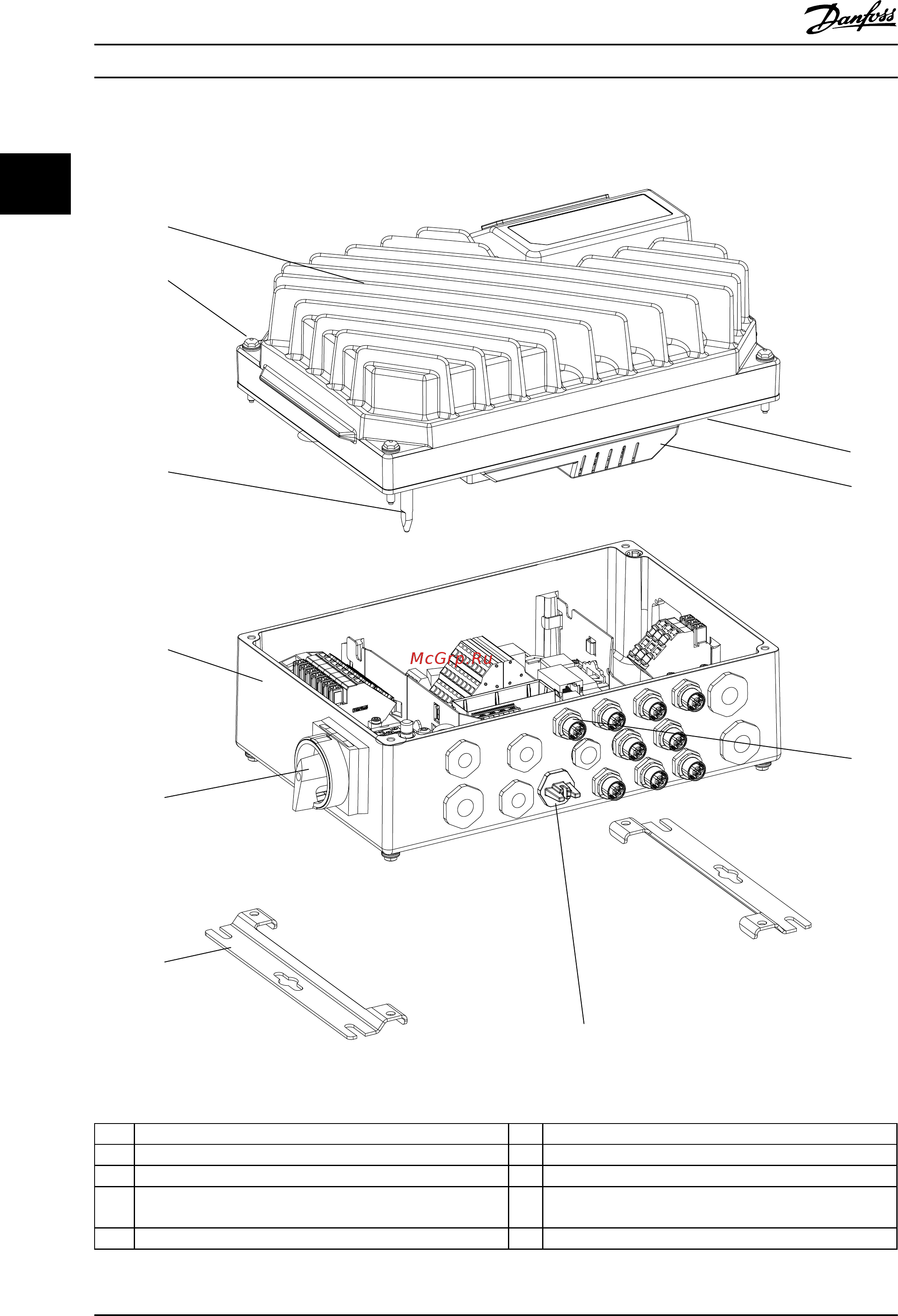

2.2 Exploded View of the FCD 302
130BC379.10
3
1
4
6
5
9
10
7
2
8
Illustration 2.1 Exploded View Small Unit
1
Inverter part 6 Installation box
2 Fastening screws (4 x, one in each corner) 7 Display connection
3 Sealing gasket 8 Access to USB port
4 Inverter part plastic cover 9 Service switch-motor side (alternatively, switch located on
mains side, or not mounted)
5 Ground connection pin 10 Flat mounting brackets
