Danfoss FCD302 [14/85] Warning
![Danfoss FCD302 [14/85] Warning](/views2/1560801/page14/bge.png)
100 (4)
100 (4)
100 (4)
100 (4)
195NA261.10

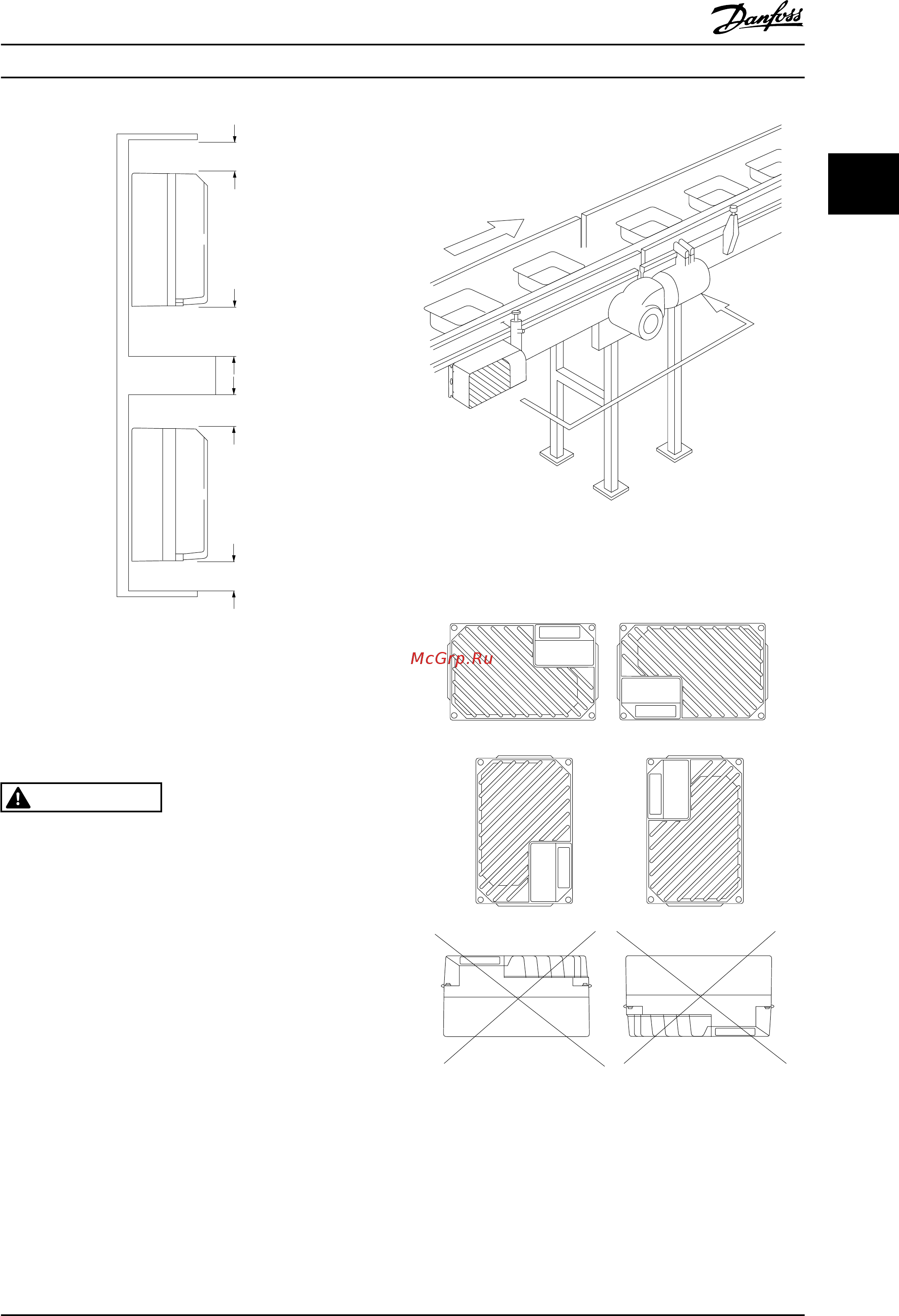

Illustration 2.5 Top and Bottom Cooling Clearance
2.3.4
Mounting
The FCD 302 consists of two parts: The installation box and
the electronic part. See 2.2 Exploded View of the FCD 302.
WARNING
Do not switch on the mains before the 4 screws are
tightened. Failure to tighten these screws can result in
personal injury or material damage when the unit is
loaded.
Stand alone mounting
•
The holes on the rear of the installation box are
used to fix mounting brackets
•
Ensure that the strength of the mounting location
can support the unit weight
•
Make sure that the proper mounting screws or
bolts are used
130BB701.10
Illustration 2.6 FCD 302 Stand Alone Mounted with Mounting
Brackets
Permitted mounting positions
130BC382.10
Illustration 2.7 Permitted Mounting Positions - Standard
Applications
Installation
VLT
®
Decentral Drive FCD 302 Operating Instructions
MG04F302 - VLT
®
is a registered Danfoss trademark 13
2 2
