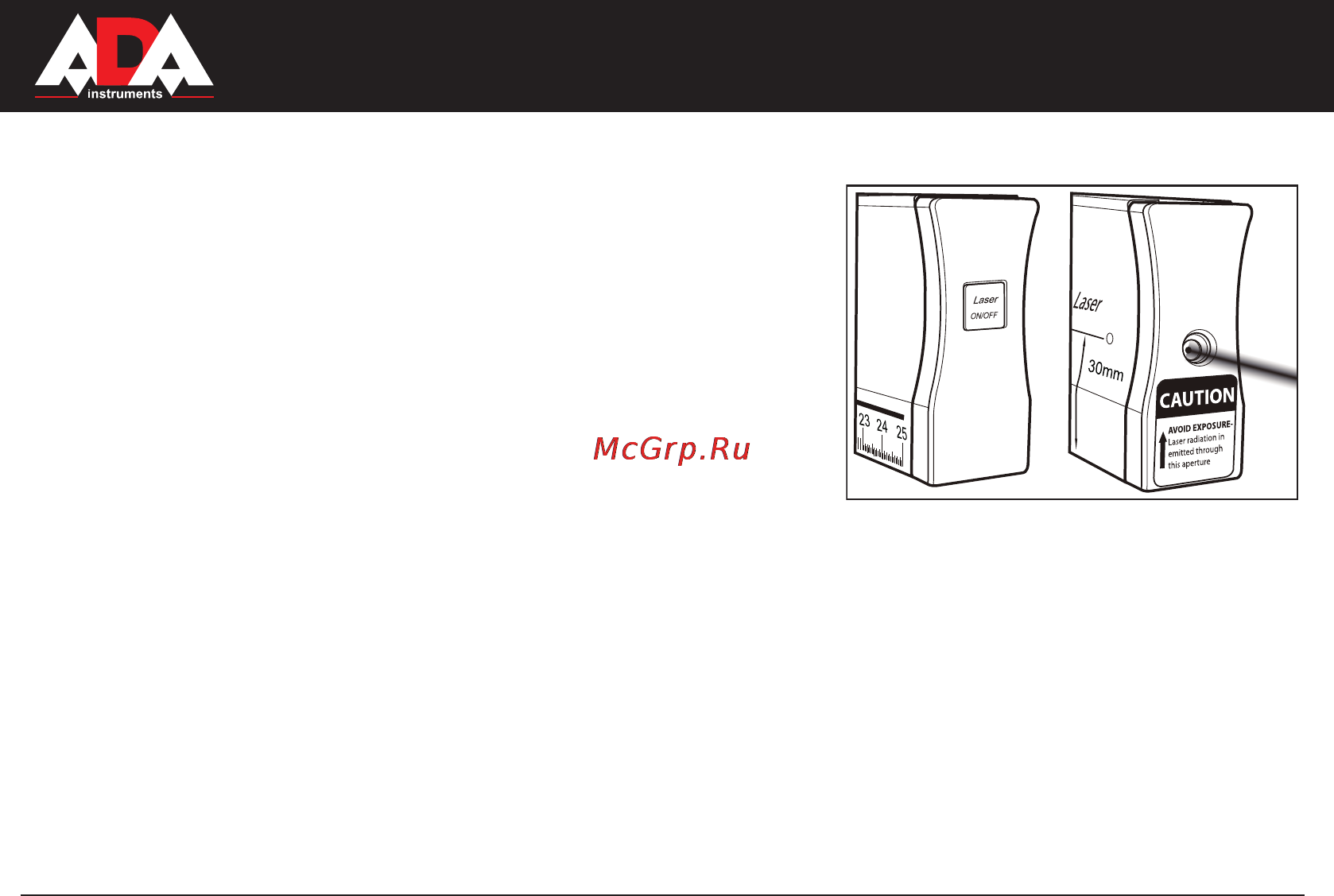

Laser alignment (Fig.10)

This digital level contains a laser diode located inside the left endcap of the level.

It provides a bright 635-665 nanometer beam with a useful visibility that extends

up to 50m indoors or outdoors (This range is only applicable at night or dark

environment.)

To activate the laser dot, press in the Laser ON/OFF button located on the

right endcap of the level

The center of the laser beam is 30mm above the bottom (working) surface

of the level.

Remember to account for this when doing layouts and taking measure-

ments.

Level the work surface, and the laser will project the level up to 50m away

to enable you to level large areas.

The laser projects a round dot on the targeted surface. The dot size and

shape may change slightly with distance, temperature or target surface mate-

rial. The point to use is the center of the dot pattern.

Operation with tripod (Figs.11,12 and 13)

This level can be used with a tripod to project a beam for up to 50m away. This feature is perfect for home improvement projects such

as aligning pictures, chair rails and other wall xtures, plumbing runs, and many other uses.

Adjust the tripod to true level, using the bubble vial on the base of the tripod.

Screw the level to the tripod using the 1/4-in. threaded hole located in the center of the working surface of the level (see Fig. 11).

Adjust the height of the laser line you want to project.

Make any nal adjustments to tripod and level to nd the true level point. This will be

at 0.00° on the LCD display screen and, if activated, the beeper will beep.

•
