MCD 200 Design Guide
MCD
202
■ MCD 202
■ MCD 202 Range
MCD 202 soft starters provide Current Limit
control, TVR soft stop and include a range of
motor protection features.

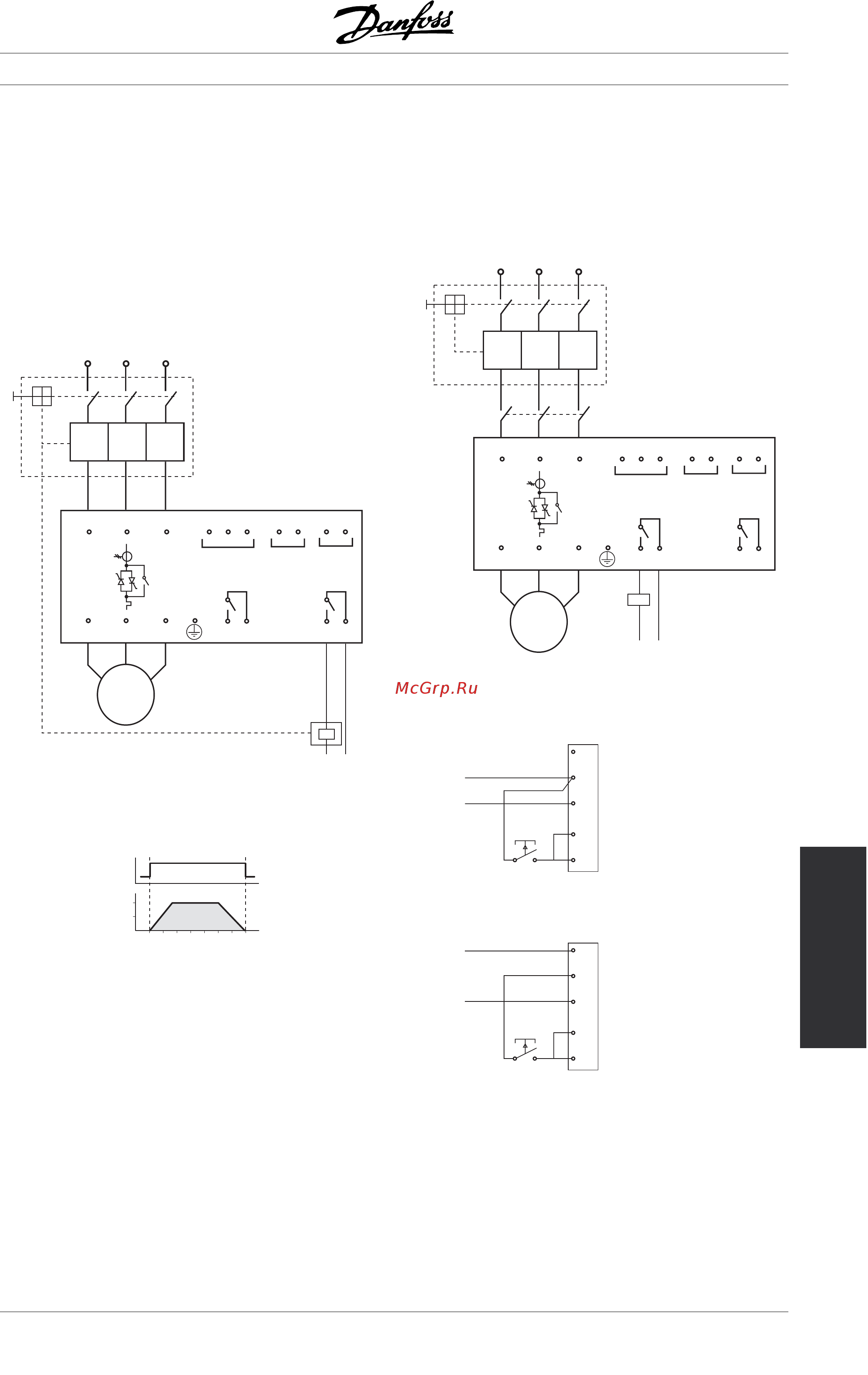

■ Electrical Schematic
Example 1 – MCD 202 installed with system protection
circuit breaker complete w ith shunt trip device.
6/T34/T22/T1
5/L33/L21/L1
Motor
3Ø
A3A2A1 N2N1 0605
1413 2423
I
>
I
>
I
>
L3L2L1
1,3
Q1
Control
Voltage
177HA253.11
Shunt Trip
1,2
1
6A@30VDCresistive/2A400VACAC11
2
Main Contactor
U
e
177HA241.10
3
Auxiliary Relay Function = Trip (see parameter 8)
Example 2 – MCD 202 installed with system p rotection
circuit breaker and line contactor.
6/T34/T22/T1
5/L33/L21/L1
Motor
3Ø
A3A2A1 N2N1 0605
1413 2423
I
>
I
>
I
>
L3L2L1
K1M
K1M
Q1
Control
Voltage
177HA254.11
1,2 1,3
■ Control Circuits
2WireControl
A3
A1
A2
N1
N2
START/
STOP
*
380-440 VAC (CV3)
177HA211.10
110-240 VAC (CV3)
OR
24 VAC/VDC (CV1)
A3
A1
A2
N1
N2
START/
STOP
*
(+)
(-)
* Also resets the MCD 202
MG.17.C2.02 - VLT is a registered Danfoss trademark
