LCE

RG66004766_rev.05

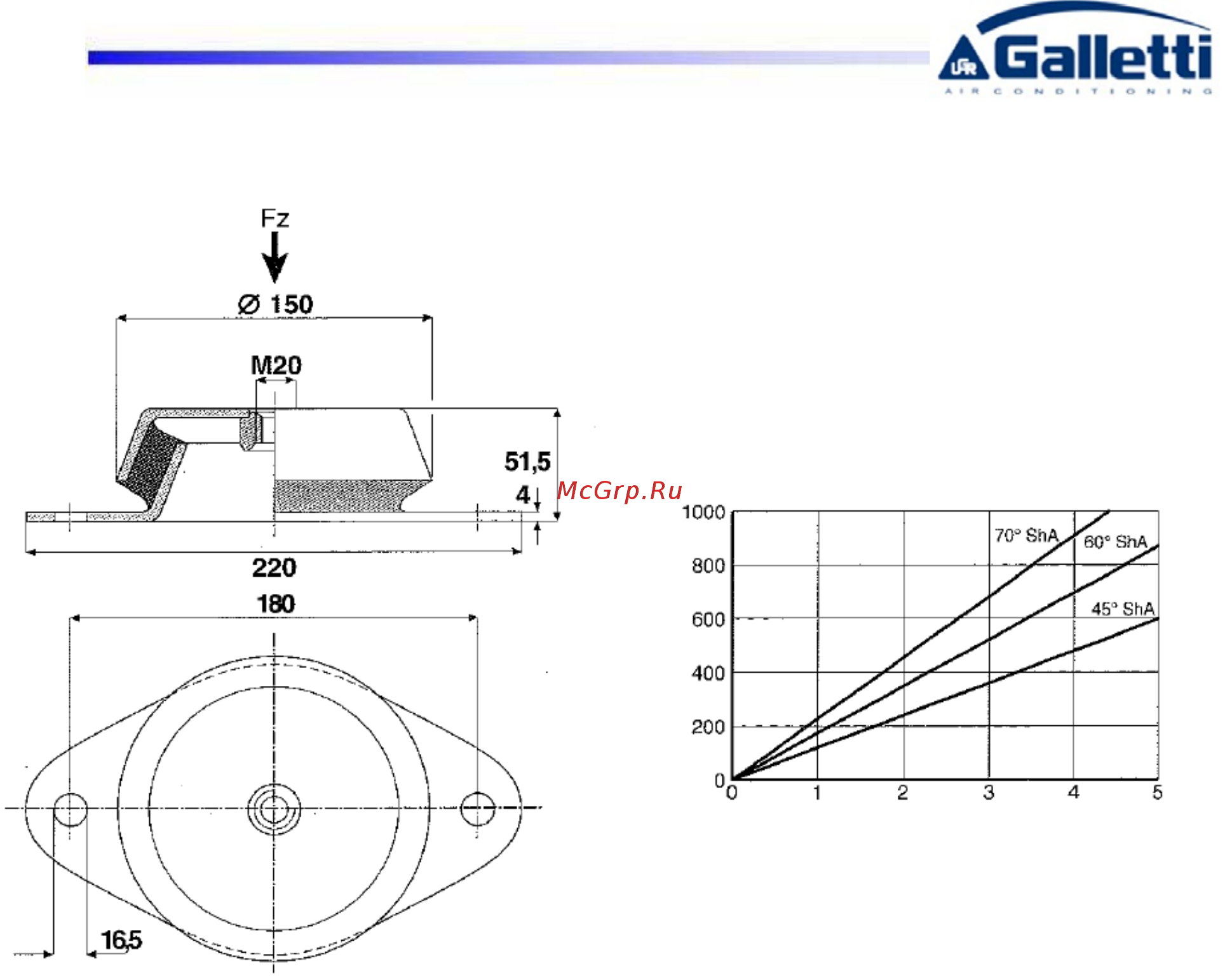

Upon request, LCE Frame 6 units can be fitted with the rubber anti-vibration devices with a hardness

value of 60°Shore:

NOTE: For the exact position of every pin please refer to the dimensional drawing enclosed.

°ShA 45 60 70

Fz max adm. – daN 400 500 700

f arrow (mm)

Vertical

static

load

(daN)
