6. Installation

WARNING! The welder must be well grounded before using. No disassembling of earth cable if

welding is not end, otherwise, it will do harm to human body. When several welders or some other

electrical appliances are using a common grounding device, they must be parallel connection,

series connection is forbidden. The welder's ground cable sectional area should not be less than

that of input power cable.

The welder must be loaded in the place where are less dust, no chemical, erodible, inflammable or

explosive gas and like items around the welding site.

The welder should be installed in the place where it can not be exposed to sun and rain. Also it

must be stored in less humid place with the temperature range: -10~40

There should be at least 50 cm space for the welding machine.

Apparatus to exclude wind and smoke should be equipped if the inside aeration is not sound.

℃.

7. Installation

Open the left side board, you can see the wire feeding system.

Install the wire spool to the wire spool axle, and then fix.

Open the wire feed compaction equipment, let the terminal of wire through the wire guide tube,

drive roller and import the wire guide tube of welding torch, and close the impaction equipment,

adjust the compaction nut of drive roller.

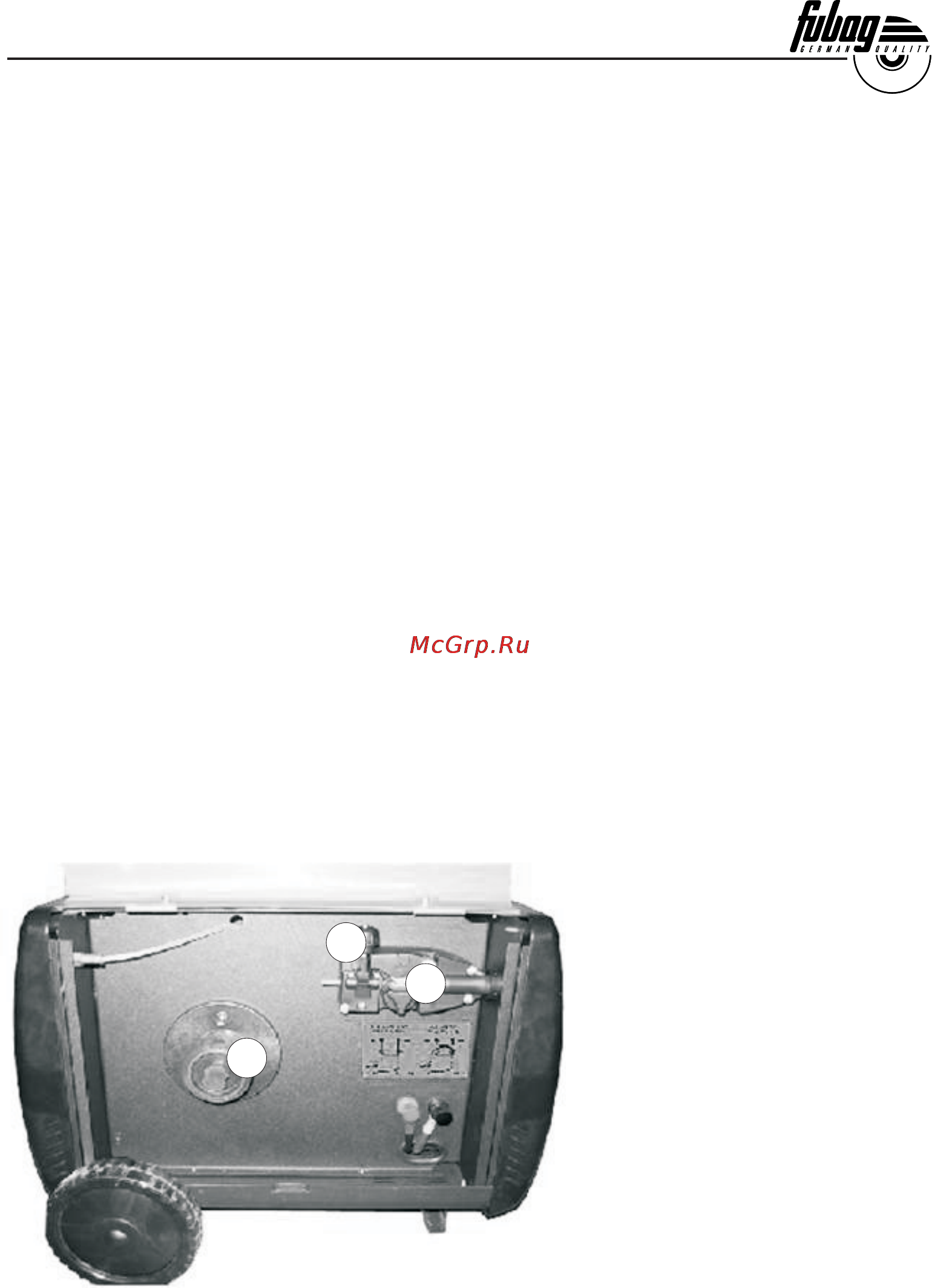

1 - Wire spool axle

2 - Compaction equipment

3 - Compaction nut
