8. Operation
-
-
-
-
-
-
“-”
- “+”
.
,
.
-
.
-.
- “OFF”
-
- Power ON.
-)
.
-
.
-
.
- .
-
.
- °
-
.
Cut off power and close valve when finish welding or leave the job site temporary.
The welding worker should wear canvas suit and mask to prevent arc light and heat radiation.
There should be set with an arc-shielded screen to prevent the arc light to interfere human body.
Inflammable or explosive materials are prohibited to access the job site.
Each interface must be connected correctly and reliably.

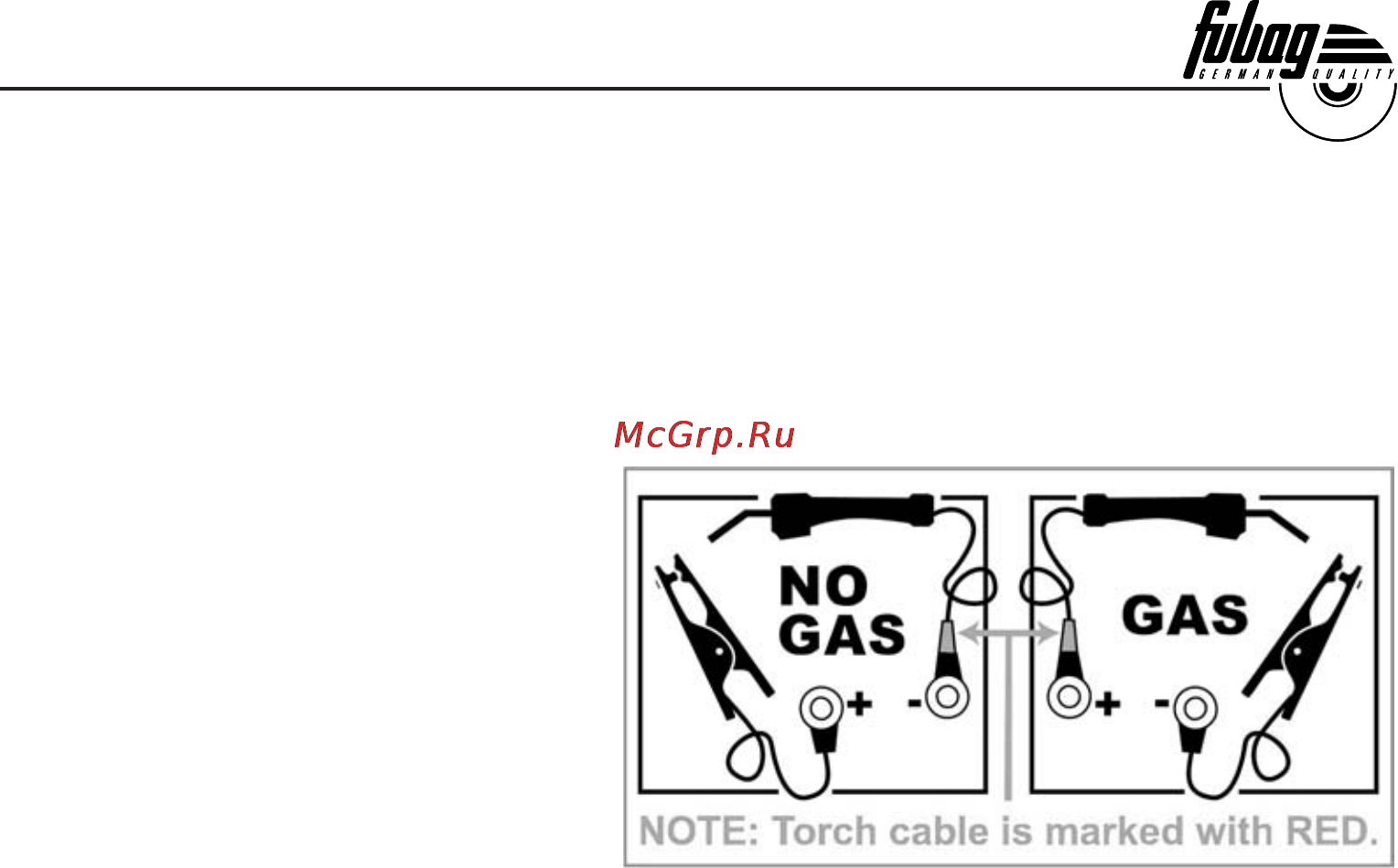

If using flux core wire, connect the torch to
the , as the diagram. It is the leaving
factory setting.
If using solid wire, connect the torch to ,
as diagram In this mode, need gas to
protect, connect mixed gas widepipe of
argon/CO2 to the tie-in that on the back of
the machine, and tighten it avoid leaking
Use ground clamp to connect the grounding cable and work piece or connect the metal carriages
(as work table) make sure the clamp has been contacted fully with work piece and clear the rust and
paint
According the metal specification, adjust the position of switch
Check the position of power switch, position must be on , then connect the power supply via
power cord.
Discharge the nozzle cover and contact tip at the head of welding torch, pull the soft pipe
Press (and hold the torch button until distance between wire and welding torch is 30 mm loosen
torch button
Close the power, fix the contact tip and nozzle cover onto the welding torch.(wire must through the
contact tip and nozzle cover)
Open the power, press the switch spasmodically, adjust the speed by turning the adjusting wire
feed speed knob
Orient yourself on the area to be welded ,and then place the face shield over your eyes
Press (and hold) the torch button and stroke the area to be welded with the electrode wire to ignite
the arc
Once the arc is ignited, tilt the electrode wire forward at an angle of approximately 35
When the weld is complete, lift the electrode wire clearly away from any grounded object, set the
face shield down and turn off the power switch
