Additional information on use:

Observe the technical safety regulations for working on electrical

systems, especially: 1. Safely isolating from power supply, 2. Securing

to prevent system being switched on again, 3. Checking zero

potential, two-pole, 4. Earthing and short-circuiting, 5. Securing and

covering adjacent live components.

A Measured value display

(3.5 segments, 1999 digits)

B Negative measured values

C Direct (DC)

D Alternating (AC) variables

E Automatic range selection

F Diode test

G Continuity test

H Actual measurement is

retained

I Low battery charge

J Measurement units:

mV, V, mA, Ohm,

kOhm, MOhm

Display: O.L: Open line/

NUDQ×NVLD@RTQHMF

circuit not closed or

measuring range

exceeded

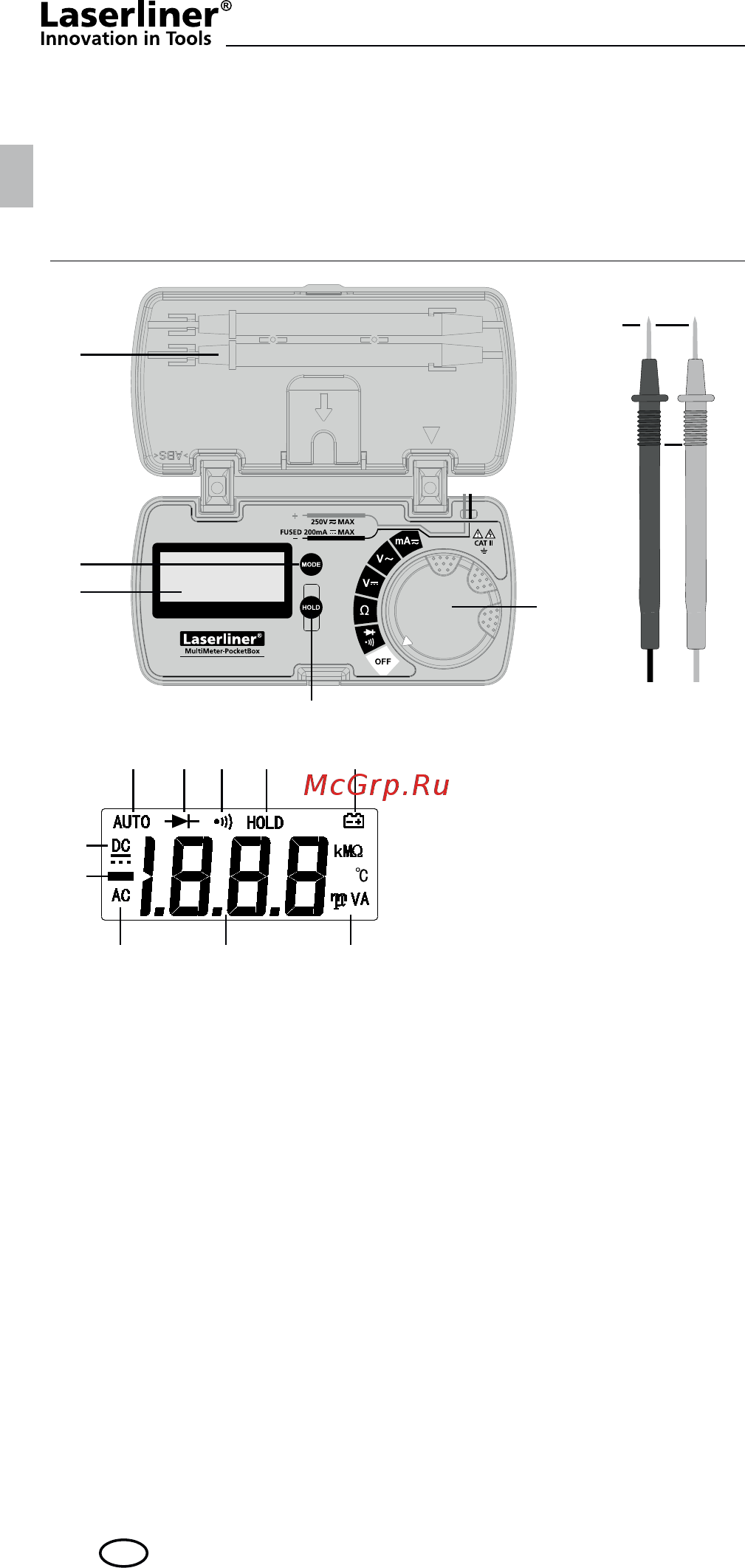

1 Rotary switch to set the

measuring function

2 Switch over measuring

function

3 LCD

4 Holder for test prods

5 Hold actual measured

value

6 Measuring contacts:

black „–“, red „+“

7 Test prods
