Disassembly/Inspection and Service

KohlerEngines.com 14 690 01 Rev. G

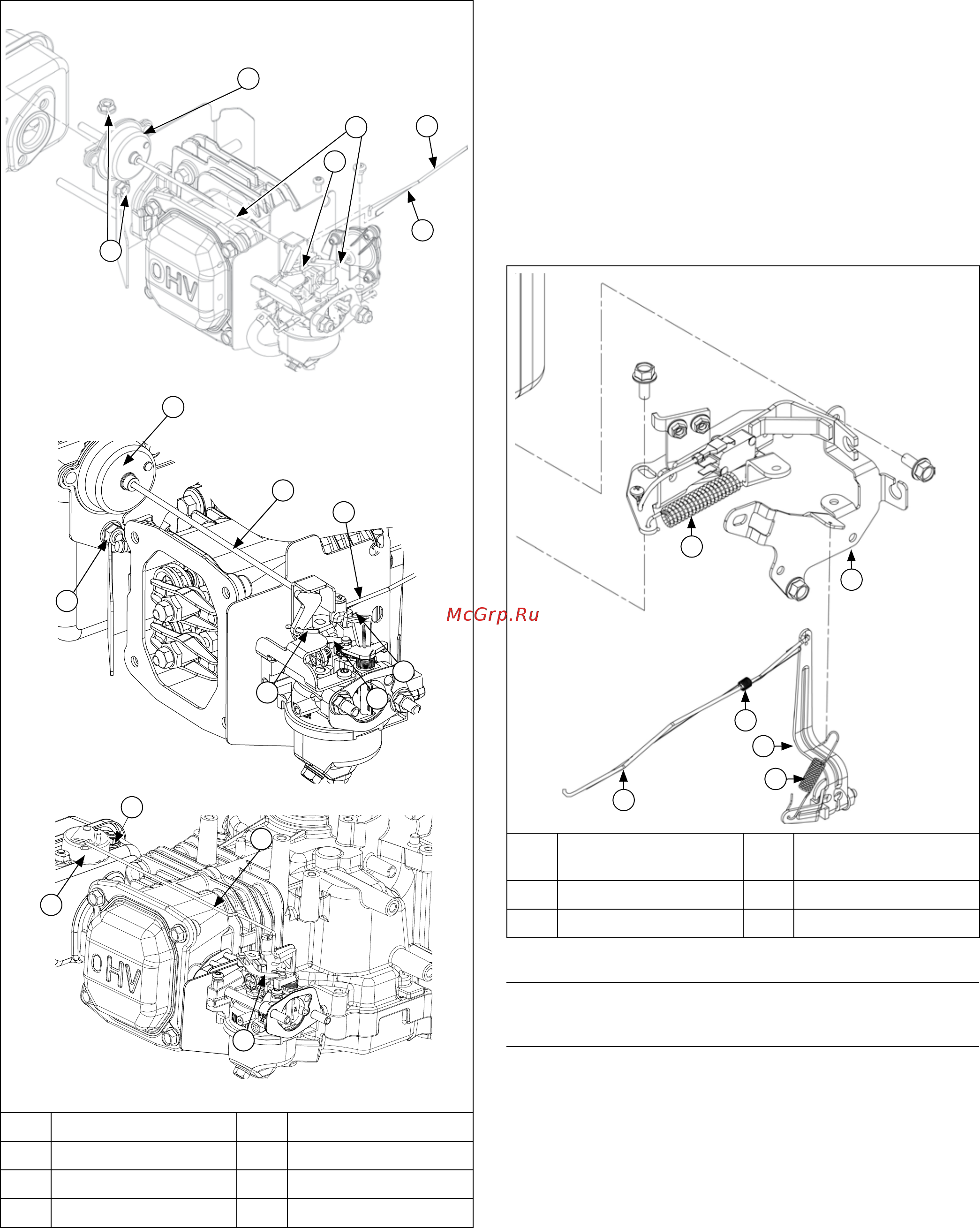

Remove Carburetor with Auto Choke (if equipped)

A Nut(s) B Arm Assembly

C Linkage D Choke Linkage

E Governor Linkage F Linkage Spring

G Wire Choke Linkage H Choke Link

1. Remove screws securing arm assembly to

carburetor.

2. Disconnect fuel line.

3. Remove wire choke linkage while sliding carburetor

away from engine a couple of inches.

4. Disconnect governor linkage and linkage spring from

carburetor.

5. Remove carburetor.

6. Remove nuts securing arm assembly to mufer.

Second nut is located behind arm assembly base

securing it to top of mufer.

7. Remove arm assembly from mufer.

Control Components

A Flywheel Brake

Spring

B Speed Control

Bracket

C Linkage Spring D Governor Lever

E Governor Spring F Throttle Linkage

Remove Speed Control Bracket

Disconnect governor spring from speed control bracket.

Remove Speed Control Bracket

NOTE:

Fuel hose connecting carburetor and fuel tank is

held in place by a plastic ring, mounted on back of

speed control bracket. If bracket is removed from

crankcase, it will remain attached to fuel hose (not

including California engines). Should replacement

of speed bracket be required, disconnect fuel line

from fuel lter or carburetor and slide bracket off

hose. Do not disconnect fuel hose from fuel tank.

Remove screws securing speed control bracket.
