Reassembly

KohlerEngines.com 14 690 01 Rev. G

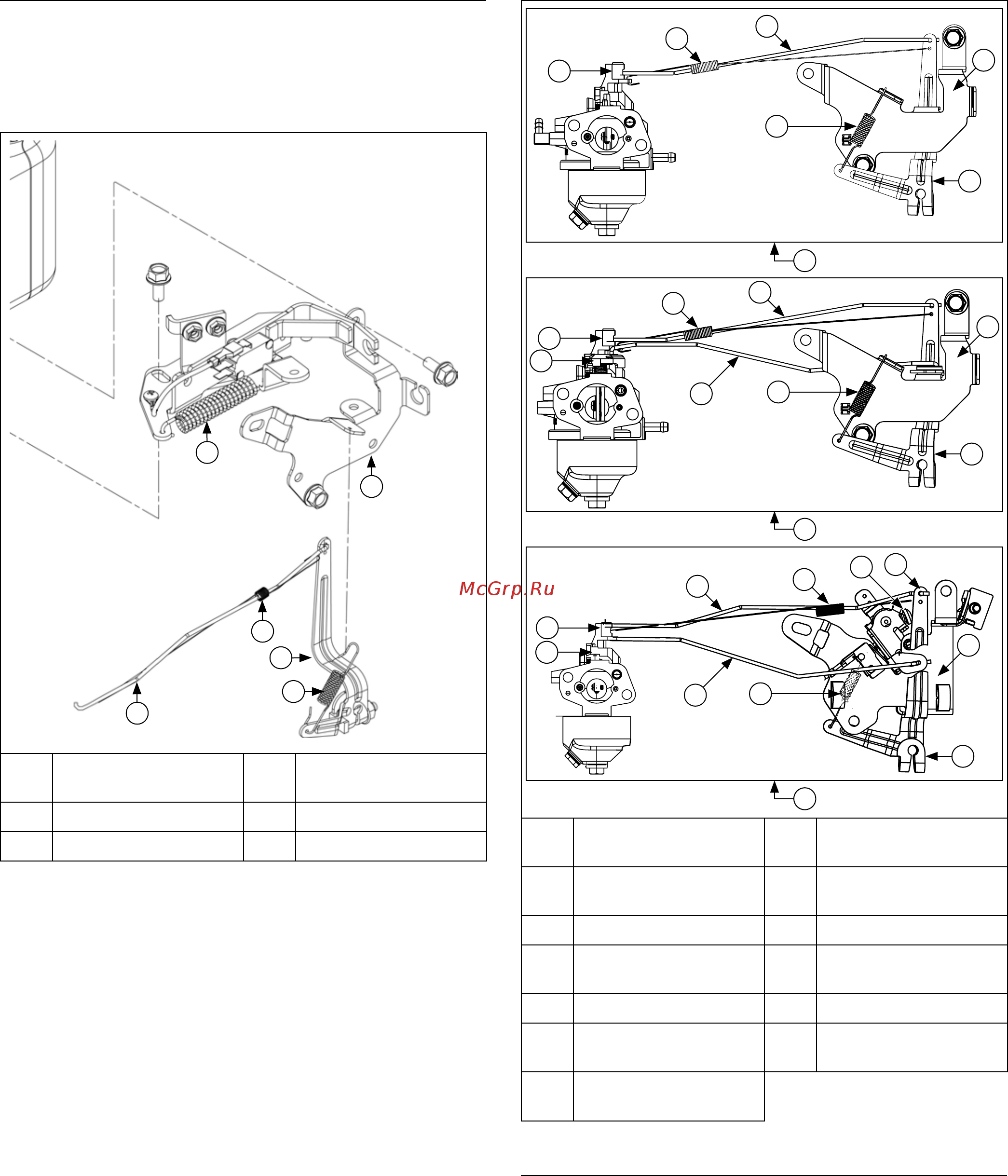

Install Governor Assembly

1. Install governor lever onto governor shaft with lever

up.

2. Attach throttle linkage and linkage spring to top of

governor lever.

Control Components

Flywheel Brake

Spring

Speed Control

Bracket

C Linkage Spring D Governor Lever

E Governor Spring F Throttle Linkage

Speed Bracket Details

Fixed Speed with

Primer (No Choke)

Fixed Speed with

Choke

Variable Speed with

Choke

D Throttle Linkage

E Linkage Spring F Throttle Lever

G Governor Spring H

Speed Control

Bracket

I Governor Lever J Choke Lever

K Choke Linkage L

Dual Throttle Choke

Control

Speed Control

Screw

Install Speed Control Bracket

NOTE: There are 3 different speed bracket variations for

this engine. Images shown identify how different

brackets connect to carburetors with and without

choke.
