Lubrication System

KohlerEngines.com 14 690 01 Rev. G

These engines use a splash lubrication system, supplying necessary lubrication to crankshaft, camshaft, connecting

rod, and valve train components.

Lubrication Components

OIL RECOMMENDATIONS

Refer to Maintenance.

CHECK OIL LEVEL

NOTE: To prevent extensive engine wear or damage,

completely down and turn 1/4 turn.

or

b. Threaded cap: reinsert dipstick into tube; rest cap

on tube, do not thread cap onto tube.

2. Remove dipstick; check oil level. Level should be at

top of indicator on dipstick.

3. If oil is low on indicator, add oil up to top of indicator

mark.

4. Reinstall and secure dipstick.

CHANGE OIL

Change oil while engine is warm.

Dipstick tube

1. Clean area around oil ll cap/dipstick.

ordinances.

Crankcase plug

1. Disable engine by disconnecting spark plug.

2. Clean area around oil ll cap/dipstick. Remove oil ll

cap/dipstick.

3. Remove crankcase plug on bottom of engine; drain

oil into appropriate container.

4. Apply thread sealant around three full threads of

drain plug; reinstall drain plug. Torque drain plug to

13.6 N·m (120 in. lb.).

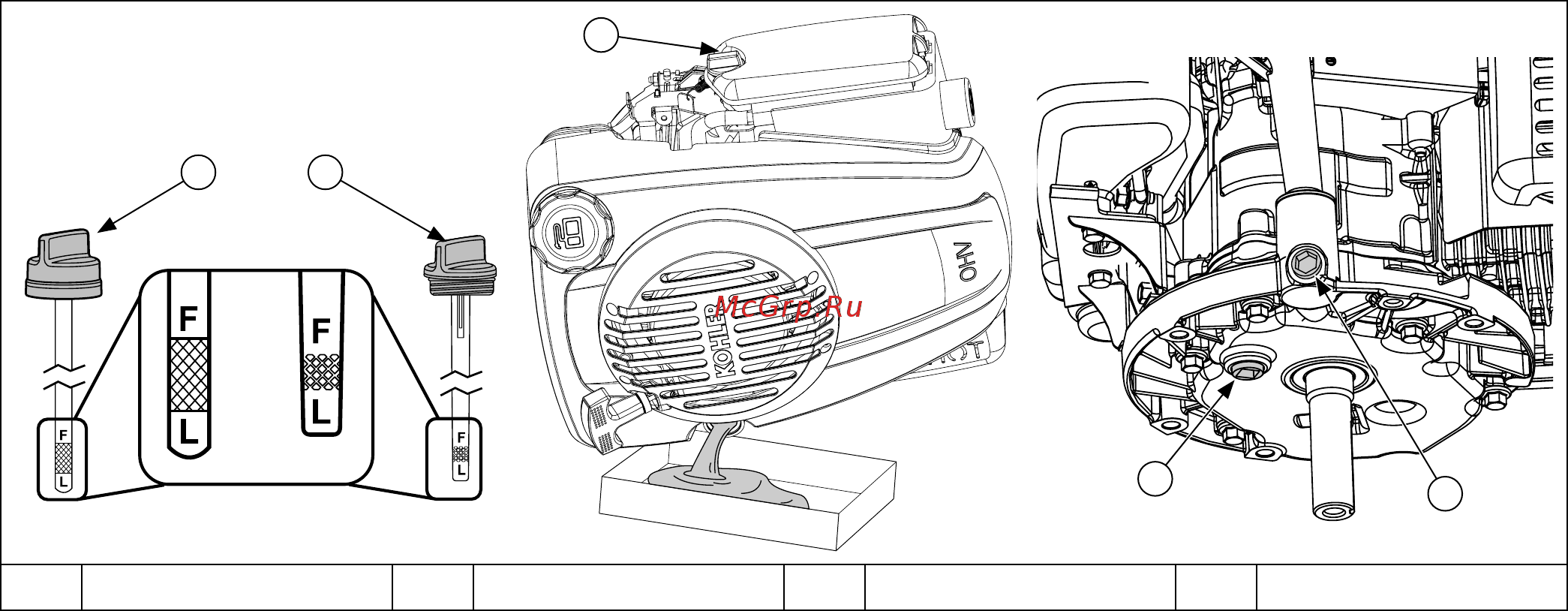

A 1/4 Turn Cap B Threaded Cap C Air Cleaner D Crankcase Plugs
