Kohler KT735 [35/96] Fuel system

Fuel System

3532 690 03 Rev. I KohlerEngines.com

Smart-Choke

™

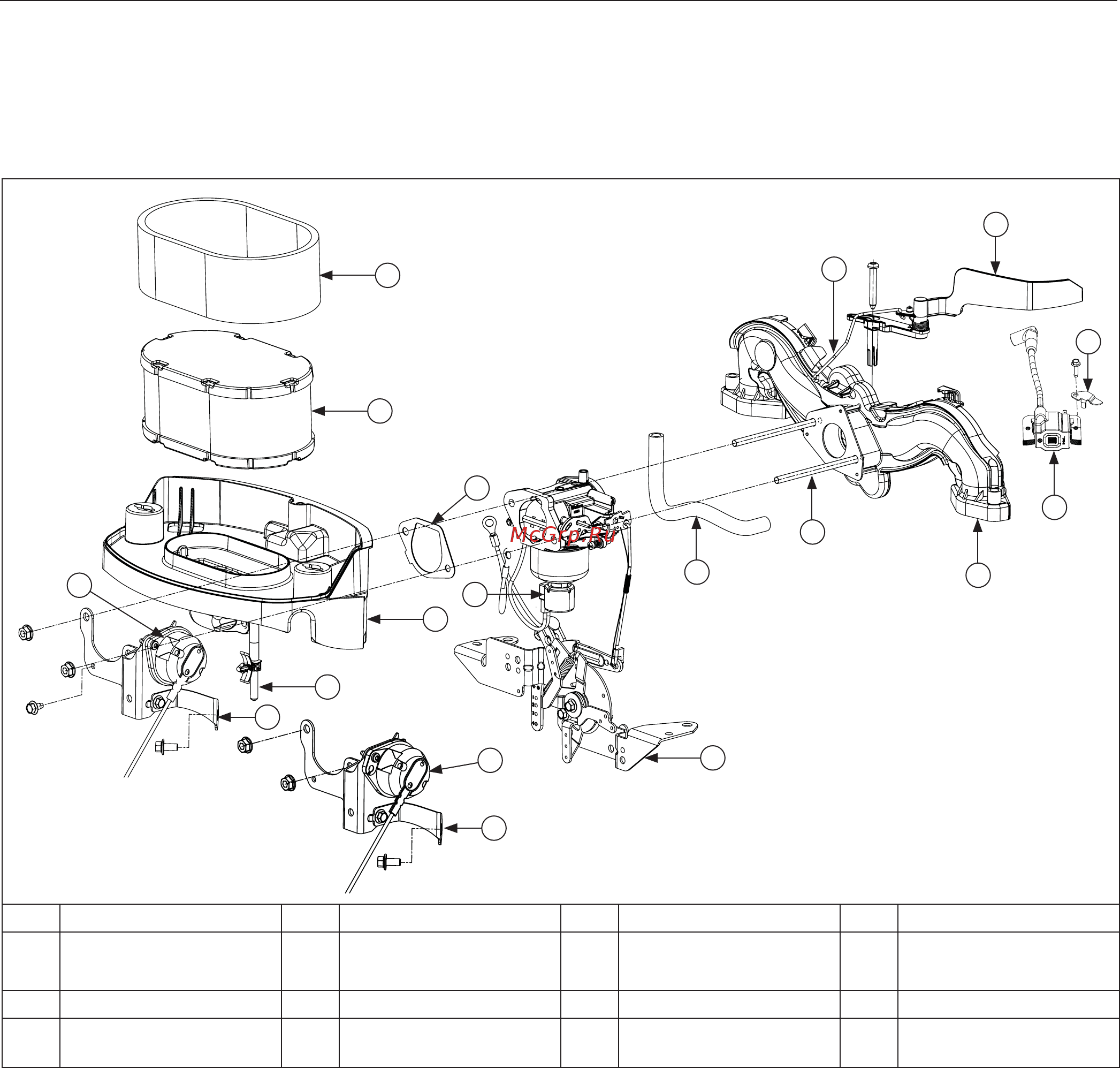

Components

A

B

C

D

N

M

P

G

O

E

F

A Precleaner B Paper Element C Air Cleaner Base D Evap Hose

E

Smart-Choke

Smart-Choke

™

An air vane defl ector assembly that operates by air from cooling fan opens choke partially when engine is running.

When engine is cold, a spring on air vane defl ector assembly, in conjunction with a bimetallic spring, holds choke

closed for starting. A bimetallic spring reacts to heat generated by electrical resistance as engine is running and

opens choke plate position. When engine is warm, bimetallic spring holds choke completely open, while engine

is running. Choke will be 2/3 closed when warm and not running. These two elements work together to operate a

smooth choke system that facilitates easy reliable starting.
