Electrical System

54 32 690 03 Rev. IKohlerEngines.com

Ignition Systems

These systems use a capacitive discharge (CD) coil. With CDI ﬁ xed timing, ignition timing and spark remains constant

regardless of engine speed. Timing of spark is controlled by location of ﬂ ywheel magnet group as referenced to

engine TDC. MDI adjustable timing uses a digital microprocessor which is located in ignition modules. Ignition timing

varies depending upon engine speed with this system.

A typical ﬁ xed ignition system consists of:

● 1 magnet assembly which is permanently afﬁ xed to ﬂ ywheel.

● 2 electronic capacitive-discharge or magnetic discharge ignition modules which mount on engine crankcase.

● 1 kill switch (or key switch) which grounds modules to stop engine.

● 2 spark plugs.

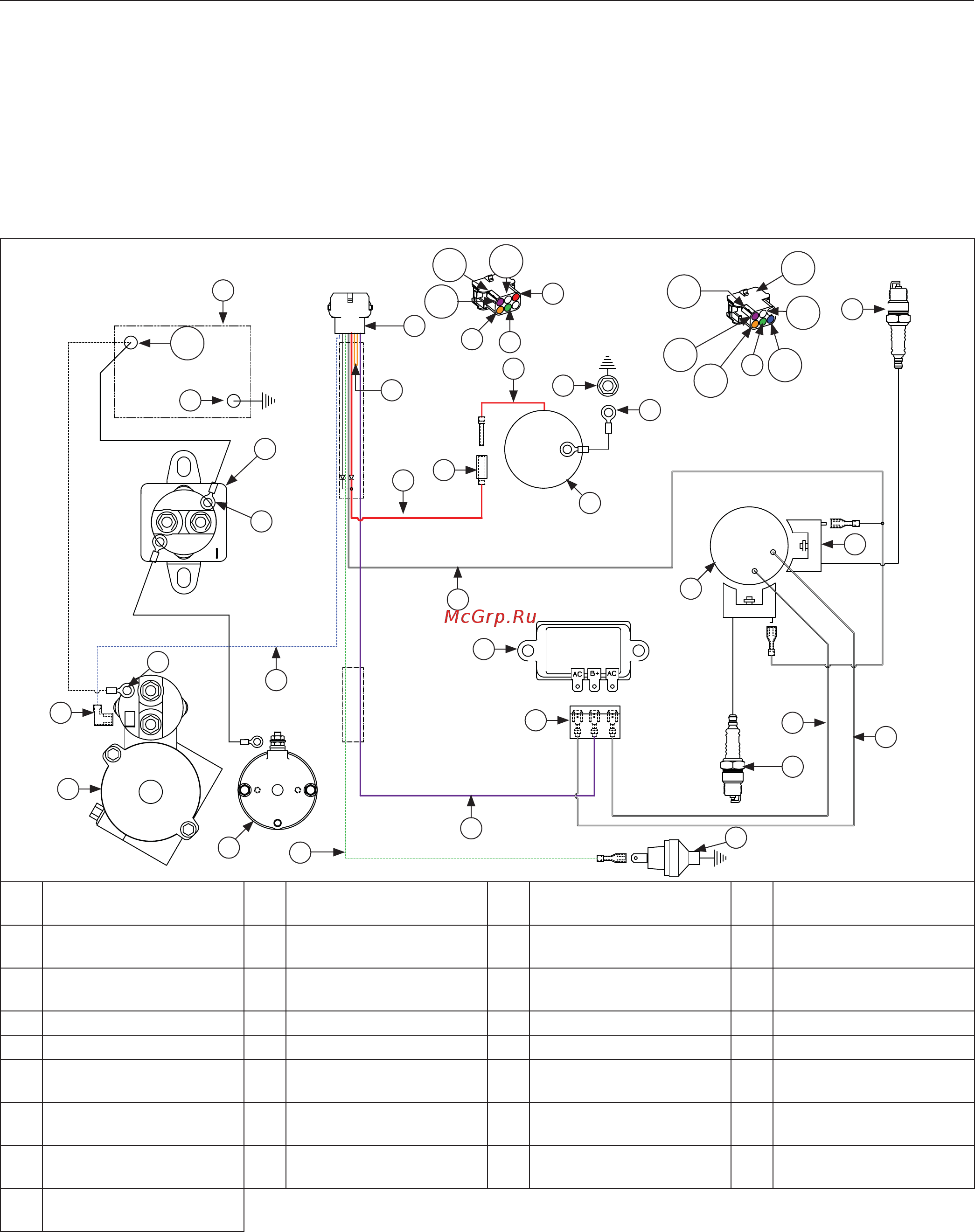

Wiring Diagram-Electronic Ignition System Diagram

A Starter Solenoid Tang B

Solenoid Shift

Starter Assembly

Inertia Driver

Starter Assembly

D Green

E Violet (Charging) F Oil Sentry

(Optional) G Spark Plug(s) H

White

(AC Charging Leads)

Rectiﬁ er-Regulator

Connector

J Rectiﬁ er-Regulator K

Flywheel Stator

Assembly

L Ignition Module(s)

M Intake Manifold Screw N Ground O Carburetor P White (Ignition Kill)

Q Red R Solenoid Lead S Orange T Connector

U Blue V Starter Solenoid Stud W Relay Stud X

Relay Cranking

(Customer Supplied)

Y Battery Negative Z Battery AA Battery Positive AB

Violet (shown)

or Orange

AC White AD

Orange (shown)

or Red

AE Blue (shown) or Red AF Polarity Rib

Solenoid Shift Starter

Assembly (Optional)
