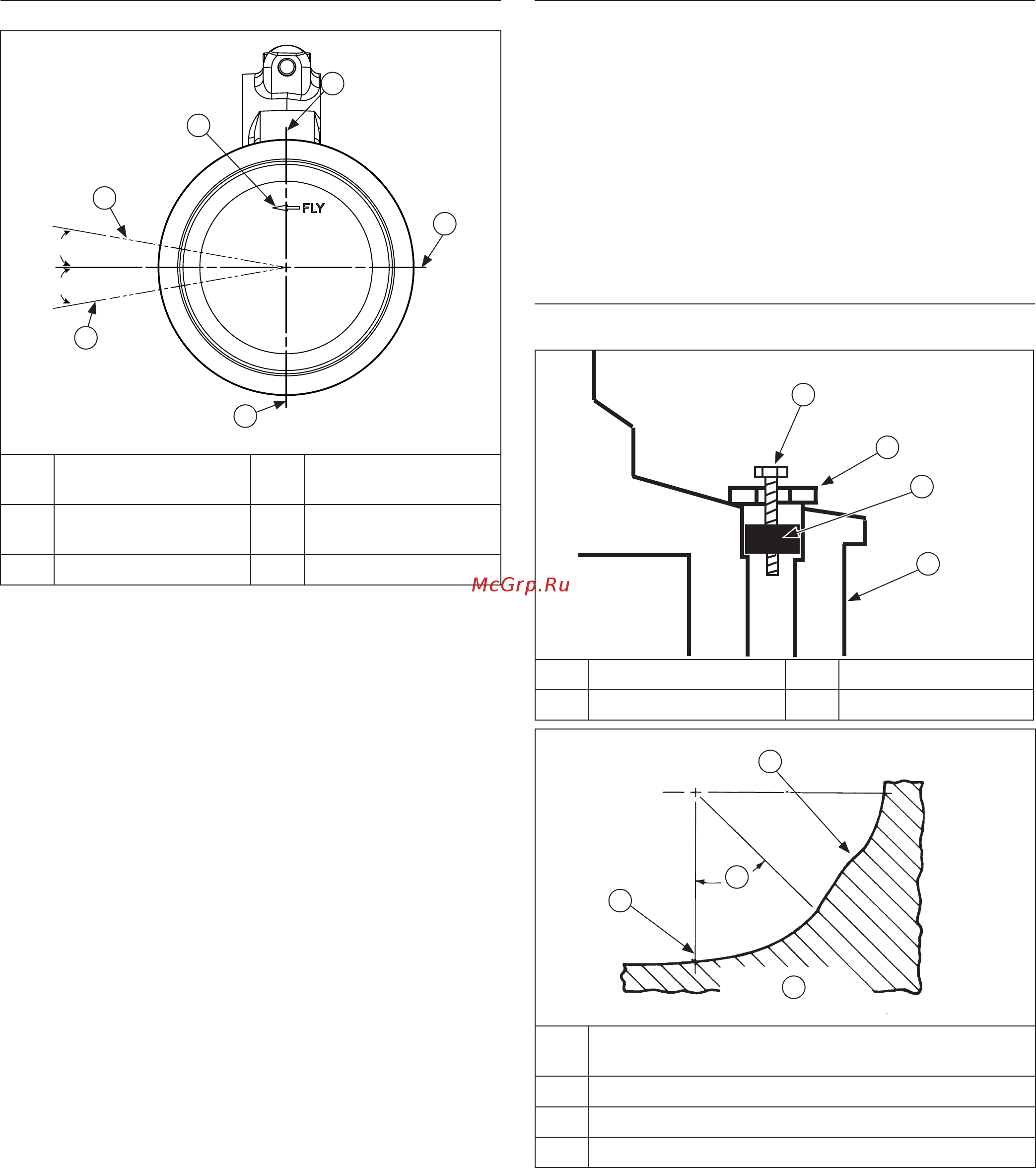

Install New Piston Rings
Piston Ring Orientation
10°
10°
F
A
B
C
D
E
A
Top Oil Ring Rail
Gap
B
Bottom Oil Ring Rail
Gap
C
Intermediate Ring
Gap
D
Oil Ring Expander
Gap
E Top Ring Gap F FLY Stamp
NOTE: Rings must be installed correctly. Ring
installation instructions are usually included with
new ring sets. Follow instructions carefully. Use
a piston ring expander to install rings. Install
bottom (oil control) ring fi rst and top
compression ring last.
To install new piston rings, proceed as follows:
1. Oil control ring (bottom groove): Install expander and
then rails. Make sure ends of expander are not
overlapped.
2. Middle compression ring (center groove): Install
center ring using a piston ring installation tool. Make
sure identifi cation mark is up or colored dye stripe
(if contained), is to left of end gap.
3. Top compression ring (top groove): Install top ring
using a piston ring expander. Make sure
identifi cation mark is up or colored dye stripe
(if contained), is to left of end gap.
Connecting Rods
Off set, stepped-cap connecting rods are used in all
these engines.
Inspection and Service
Check bearing area (big end) for excessive wear,
score marks, running and side clearances (refer to
Specifi cations). Replace rod and cap if scored or
excessively worn.
Service replacement connecting rods are available in
STD crankpin size and 0.25 mm (0.010 in.) undersize.
Undersized rods have an identifi cation marking on lower
end of rod shank. Always refer to appropriate parts
information to ensure correct replacements are used.
Remove Crankshaft
Inspection and Service
Crankshaft Components and Detail
A Self-Tapping Screw B Flat Washer
C Plug D Crankshaft
A
B
C
D
E
G
F
H
E
Fillet Must Blend Smoothly with Bearing Journal
Surface
F High Point from Fillet Intersections
G 45° Minimum
H This Fillet Area Must Be Completely Smooth
NOTE: If crankpin is reground, visually check to insure
fi llet blends smoothly with crankpin surface.
NOTE: To prevent repeat failures, camshaft and
crankshaft should always be replaced as a set.
Carefully pull crankshaft from crankcase.
Disassembly/Inspection and Service
5124 690 37 Rev. D KohlerEngines.com
