32

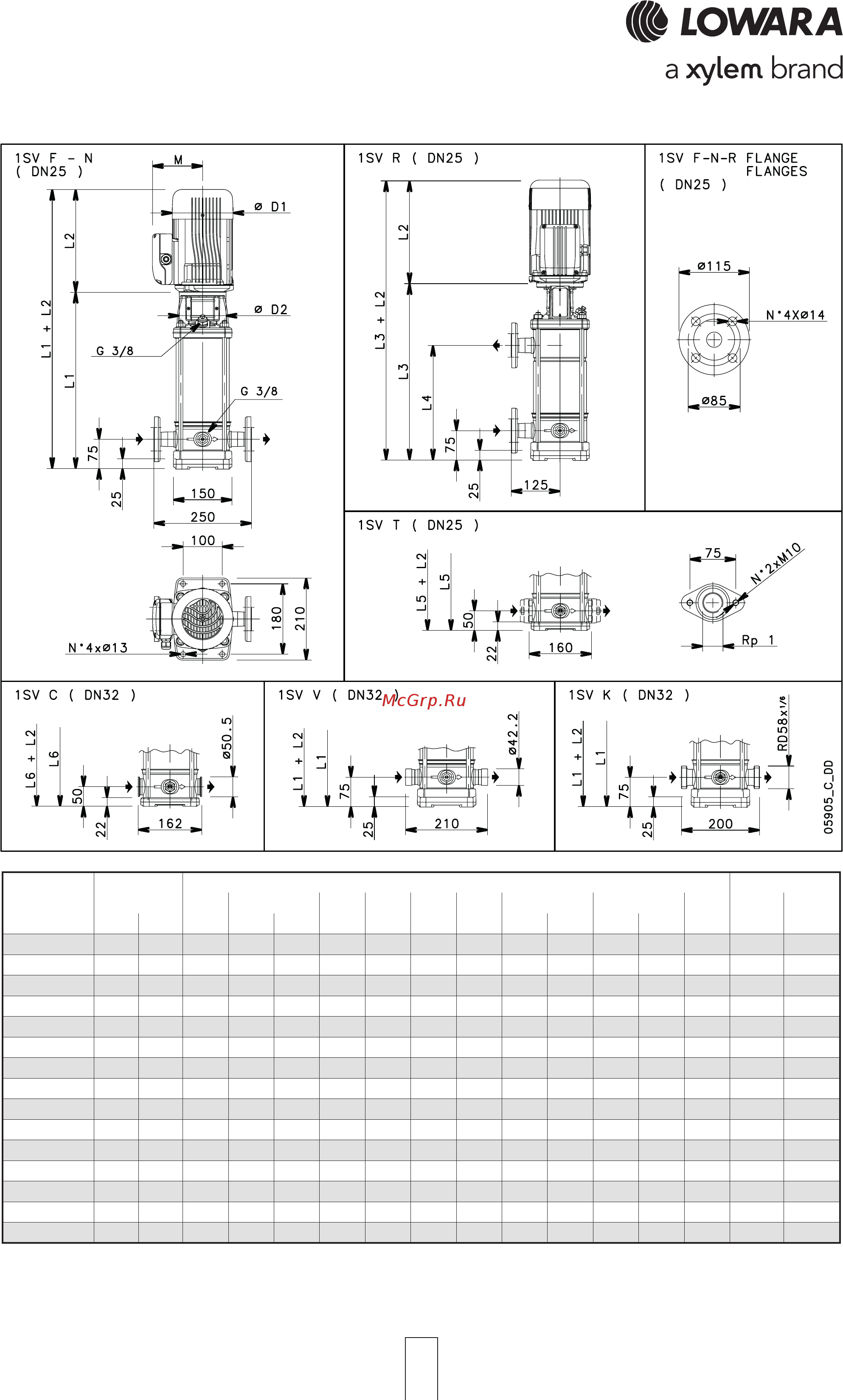

1SV SERIES, 17 TO 37 STAGES
DIMENSIONS AND WEIGHTS AT 50 Hz, 2 POLES
DIMENSIONI E PESI SERIE 1SV 2 poli 50 Hz
PUMP
TYPE
ELECTRIC
kW SIZE L1
1
~
3
~
L3 L4 L5 L6
1
~
3
~
1
~
3
~
D2
PUMP
PUMP
1SV17../D 1,1 80 568 263 263 568 407 543 543 137 129 155 155 120 14,7 26,6
1SV19../D 1,1 80 608 263 263 608 447 583 583 137 129 155 155 120 15,5 28
1SV22../D 1,1 80 668 263 263 668 507 643 643 137 129 155 155 120 16,7 28,6
1SV25../D 1,5 90 738 263 263 738 567 713 713 137 129 155 155 140 18,7 32
1SV27../D 1,5 90 778 263 263 778 607 - 753 137 129 155 155 140 19,5 33
1SV30../D 1,5 90 838 263 263 838 667 - 813 137 129 155 155 140 20,7 34
1SV32../D 2,2 90 878 298 298 878 707 - 853 151 134 174 174 140 21,5 37,8
1SV34../D 2,2 90 918 298 298 918 747 - 893 151 134 174 174 140 22,3 38,6
1SV37../D 2,2 90 978 298 298 978 807 - 953 151 134 174 174 140 23,5 39,8
1sv-2-2p50-en_d_td
MOTOR WEIGHT kg
D1
DIMENSIONS (mm)
M L2
