60

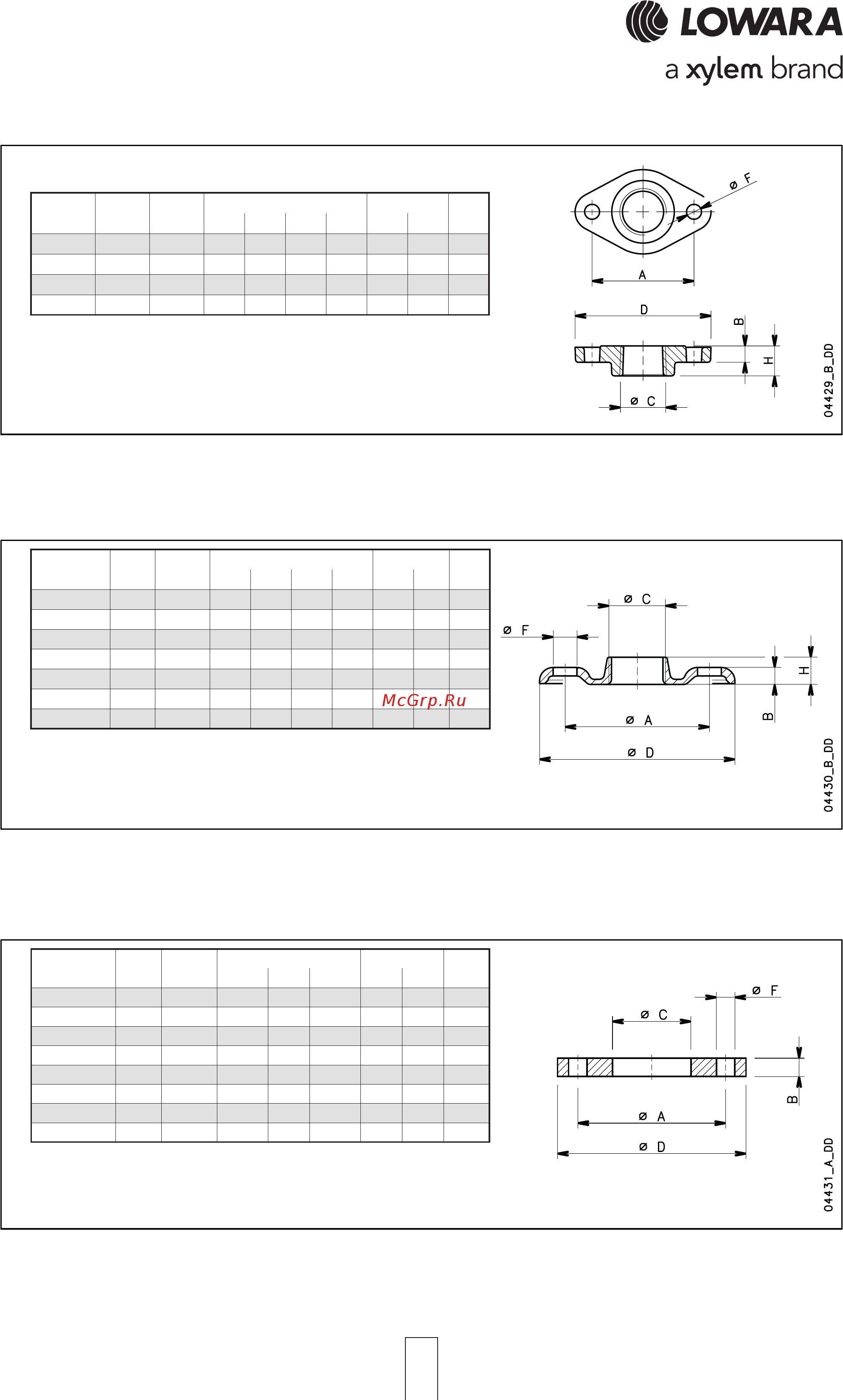

DIMENSIONS OF OVAL COUNTERFLANGES (SV T)
DIMENSIONS OF ROUND THREADED COUNTERFLANGES (SV F, N, R, G)
ACCORDING TO EN 1092-1
DIMENSIONS OF WELD-ON ROUND
COUNTERFLANGES
(SV
G, N)
ACCORDING TO EN 1092-1
DIMENSIONI CONTROFLANGE OVALI per 1-2
PUMP
TYPE DN ø C A B D H ø F N° PN
1-3SVT 25 Rp 1 75 12 100 22 11 2 16
5SVT 32 Rp 1¼ 75 12 100 22 11 2 16
10SVT 40 Rp 1½ 100 15 132 25 14 2 16
15-22SVT 50 Rp 2 100 15 132 25 14 2 16
1-22sv-ctf-ovali-en_a_td
DIMENSIONS (mm) HOLES
DIMENSIONI CONTROFLANGE TONDE FILETT
A
PUMP
TYPE DN ø C ø A B ø D H ø F N° PN
1-3SV 25 Rp 1 85 10 115 16 14 4 25
5SV 32 Rp 1¼ 100 13 140 16 18 4 25
10SV 40 Rp 1½ 110 14 150 19 18 4 25
15-22SV 50 Rp 2 125 16 165 24 18 4 25
33SV 65 Rp 2½ 145 16 185 23 18 4 16
46SV 80 Rp 3 160 17 200 27 18 8 16
66SV-92SV 100 Rp 4 180 18 220 31 18 8 16
1-92sv-ctf-tonde-f-en_a_td
DIMENSIONS (mm) HOLES
DIMENSIONI CONTROFLANGE TONDE A SA
L
PUMP
TYPE DN ø C ø A B ø D ø F N° PN
33SV 65 77 145 18 185 18 4 16
46SV 80 90 160 20 200 18 8 16
66SV-92SV 100 115,5 180 22 220 18 8 16
125SV 125 141 210 24 250 18 8 16
33SV 65 77 145 24 185 18 8 25-40
46SV 80 90 160 26 200 18 8 25-40
66SV-92SV 100 115,5 190 26 235 22 8 25-40
125SV 125 141 220 28 270 25 8 25-40
33-125sv-ctf-tonde-s-en_a_td
DIMENSIONS (mm) HOLES
Round counterflanges Kit available on request:
Kit containing 2 counterflanges with bolts and gaskets.
- threaded, galvanized steel (F, R, G versions).
- threaded, AISI 316L stainless steel (N versions).
Standard supply (included with the pump)
- AISI 304L stainless steel (T versions).
Round counterflanges Kit available on request:
Kit containing 2 counterflanges with bolts and gaskets.
- weld-on counterflanges, galvanized steel (G versions).
- weld-on counterflanges, AISI 316L stainless steel (N versions).
