SMH5 MultiCom
11
English

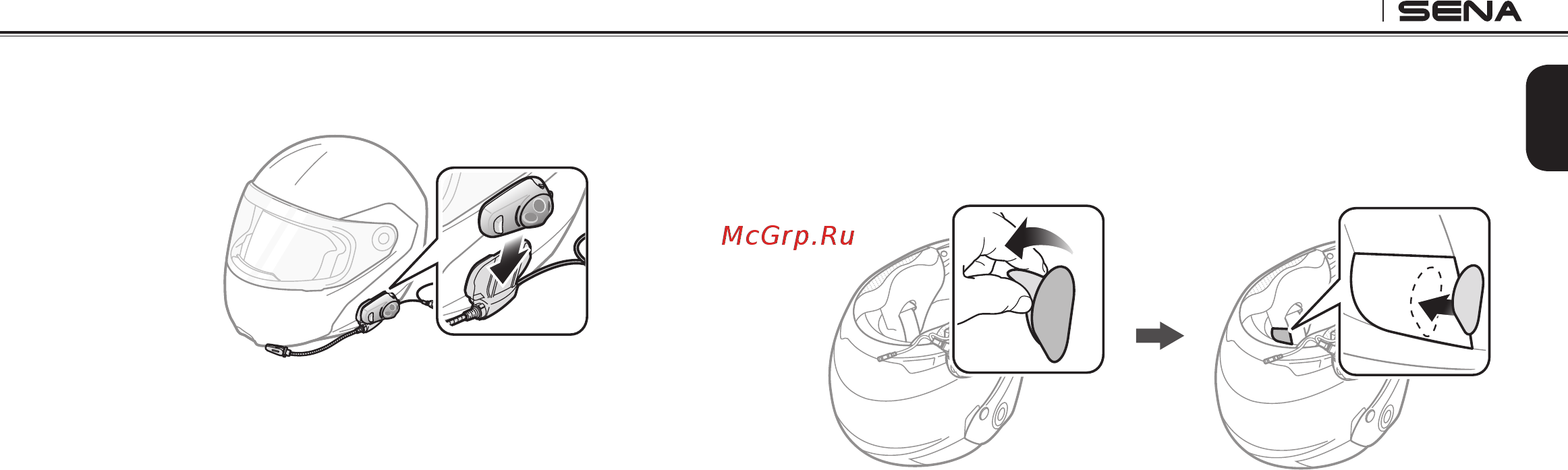

2. Attach the main unit to the clamp unit until you hear a click. The main
unit is now fastened to the clamp unit
3.2 Installing the Speakers
1. Peel off the cover of the hook and loop fastener for the speaker to
expose the adhesive surface. Then, attach the fastener to the left ear
pocket inside of the helmet.
