Lowara LSN 2 - 100-65-315 [10/12] Controller mode invers
![Lowara LSN 4 - 200-150-250 [10/12] Controller mode invers](/views2/1622027/page10/bga.png)

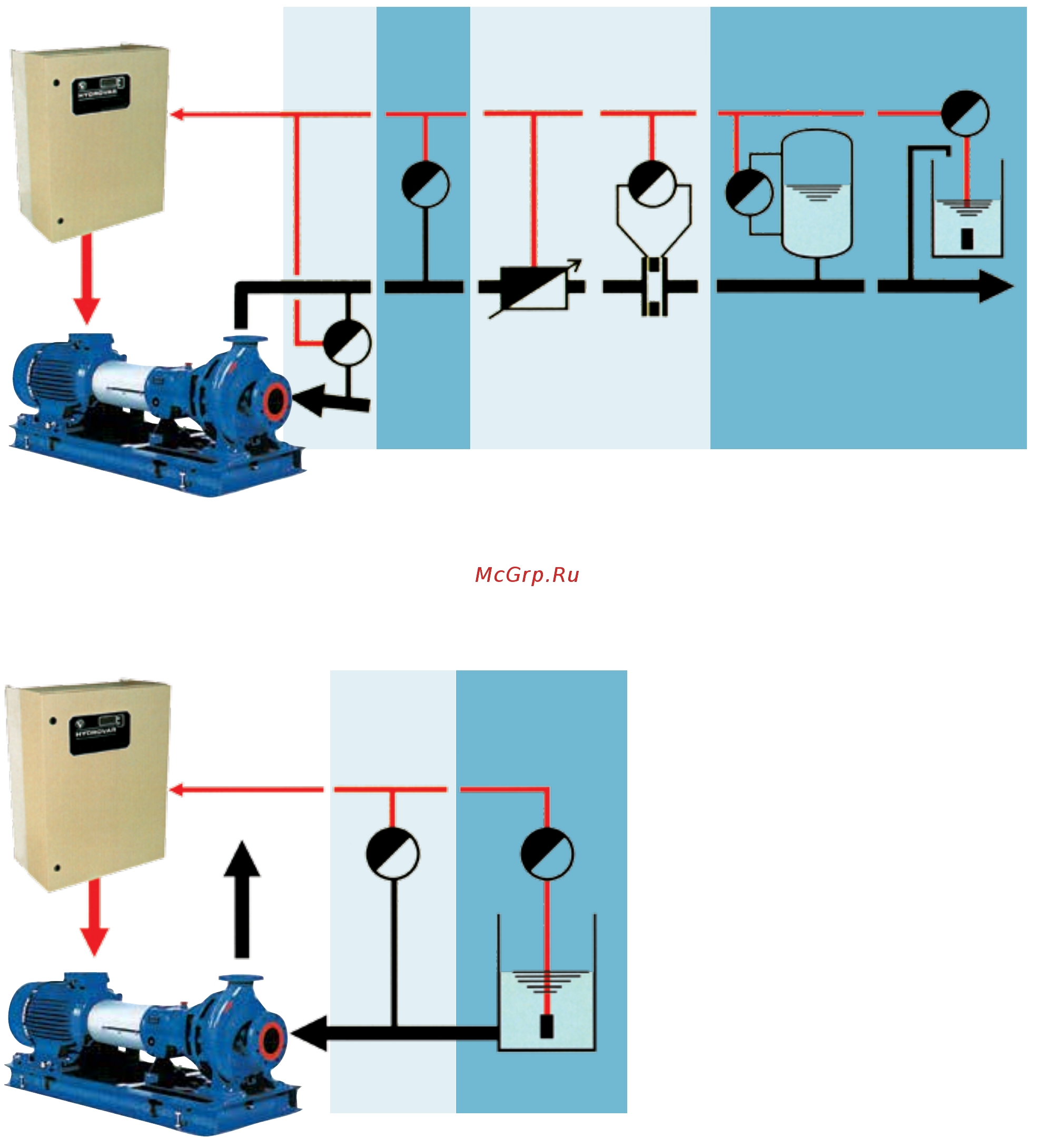

Controller Mode „Normal”
Controller Mode „Invers”
At controller mode „normal” the operating frequency increases in case of decreasing signal measuring.
At controller mode „invers” the operating frequency decreases in case of decreasing signal measuring.
For more detailed information of HYDROVAR refer to separate brochure.
Control
for
pressure
Flowmeter Orificeplate
Control for flow Control for level
m
3
/h
Boiler
Tank
m
3
/h
(mbar)
bar
∆ρ
Control for
difference
pressure
Control for
difference
pressure
Control for
level
Tank
bar
