Gespasa MG-80 (32000-CF00000) Инструкция по эксплуатации онлайн
MG-80 CODE 32000
VOLUMETRIC MECHANICAL METER
MG-80V CODE 32070
VOLUMETRIC MECHANICAL METER with VITON JOINTS
MGI-80 CODE 32050
VOLUMETRIC MECHANICAL METER WITH PULSER
MGI-80V CODE 32230
VOLUMETRIC MECHANICAL METER WITH PULSER and VITON JOINTS
INSTRUCTION MANUAL
WARRANTY AND CONFORMITY DECLARATION

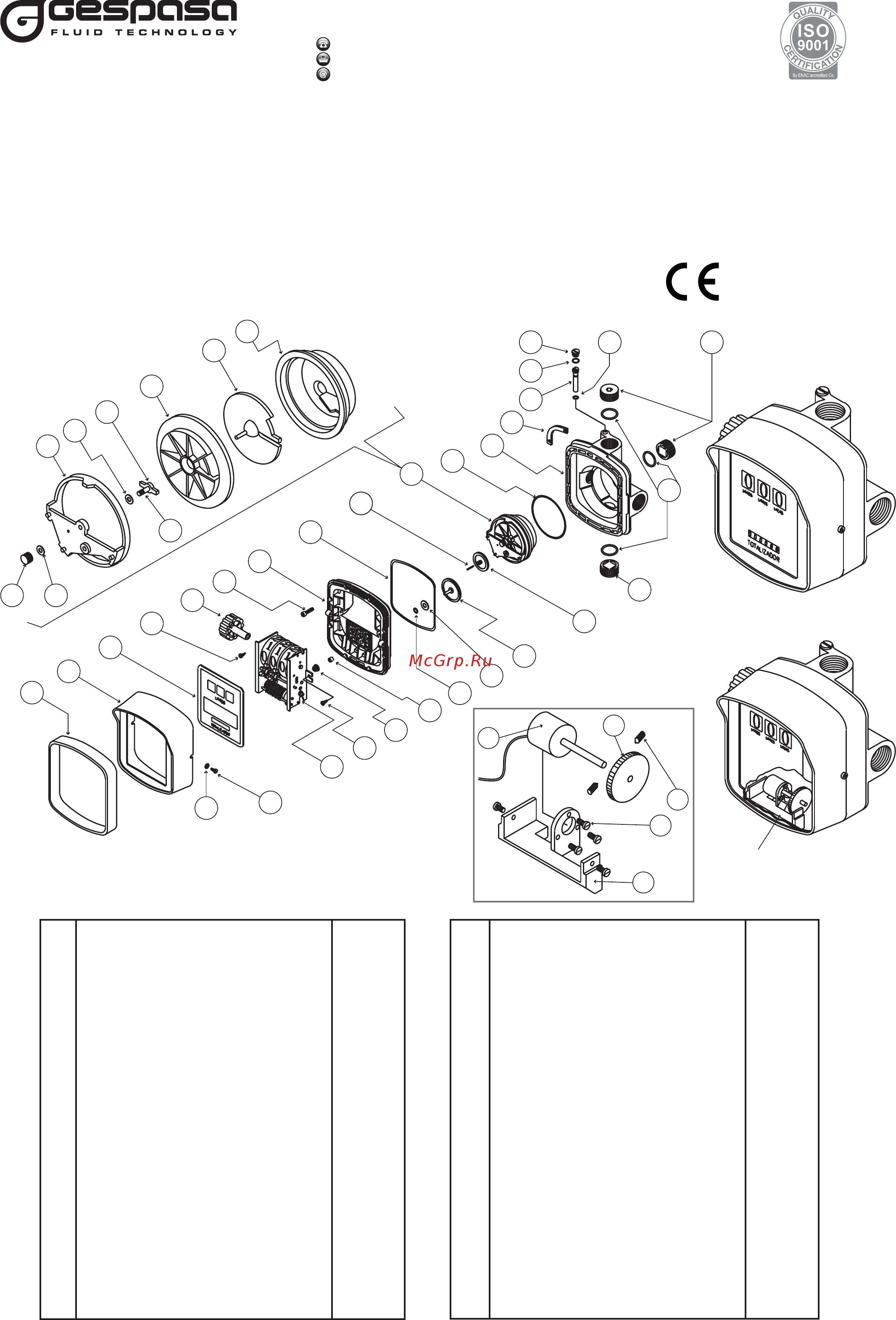

MG-80
2
1
27
26
25
24
34
23
17
22
21
20
12
19
18
17
16
15
14
13
10
9
8
7
6
5
4
11
3
1
25
33
35
32
25
31
30
29
28
37
38
39
40
41
MGI-80
PULSER
EMISOR DE IMPULSOS
No. DESCRIPTION CODE
1 1" INLET/OUTLET PLUG 320004001
2 24x3.5 mm JOINT 803100022
2 D.24x3.5 mm VITON JOINT 803101022
3 5.28x1.78 mm CALIBRATION JOINT 803100024
3 D.5.28x1.78 mm VITON CALIBRATION JOINT 803101024
4 PLUG WITH PROTECTION REGULATION 320004004
5 D.9.5x1.5 mm JOINT 803100045
5 D.9.5x1.5 mm VITON JOINT 803101031
6 10x47 mm FLOW SCREW 320004006
7 HOUSING FIXATION SUPPORT 320004007
8 METER HOUSING 320004008
9 80x3 mm VITON JOINT 803101025
10 MEASURING CHAMBER 320002000
11 D.2x16 mm DIN.6325 PIN 804000001
12 BLACK RUBBER NUT CAP 320004010
13 SPECIAL SQUARE VITON JOINT 320704011
14 CENTRAL COVER 320004012
15 M-5x22 mm DIN.912 SCREW 805400008
16 RESET DRIVE 320005001
17 D.4.2x9.5 mm DIN.7981 ZINC-PLATED SCREW 805404003
18 3-DIGIT PLATE 320004113
19 NUMERATION SET COVER 320004014
No. DESCRIPTION CODE
20 M-4 WASHER 800300001
21 D.3.5x9.5 mm DIN.7981 ZINC-PLATED SCREW 805404002
22 NUMERATION 320005002
23 CONICAL GEAR 320001002
24 D.3.69x1.78 mm JOINT 803100023
24 D.3.69x1.78 mm VITON JOINT 803101023
25 GEAR WHEEL RING 320001005
26 GEAR WHEEL 320001003
27 DOUBLE PINION 320001004
28 MEASURING BOX 320002001
29 NUTATING DISC 320002002
30 TOP COVER 320002003
31 COVER LEVER 320002004
32 MEASURING BOX SUPPORT 320002006
33 CM GEAR MEASURING UNIT PINION 320002005
34 D.7 x D.4x6 mm SLEEVE 320004016
35 4x15 mm LEVER SHAFT 320002007
37 PULSER 805800002
38 TRANSMISSION GEAR 805890003
39 3x6 mm ALLEN STUD 805701001
40 M-3x5 mm DIN.7985 SCREW 805406003
41 3-DIGIT ENCODER SUPPORT 321105009
M-1
Partida Horta d’Amunt s/n · Apdo. de Correos nº 149
25600 BALAGUER (Lleida) · SPAIN
++34 (9)73 451 072
++34 (9)73 448 400
gespasa@gespasa.es · http://www.gespasa.es
