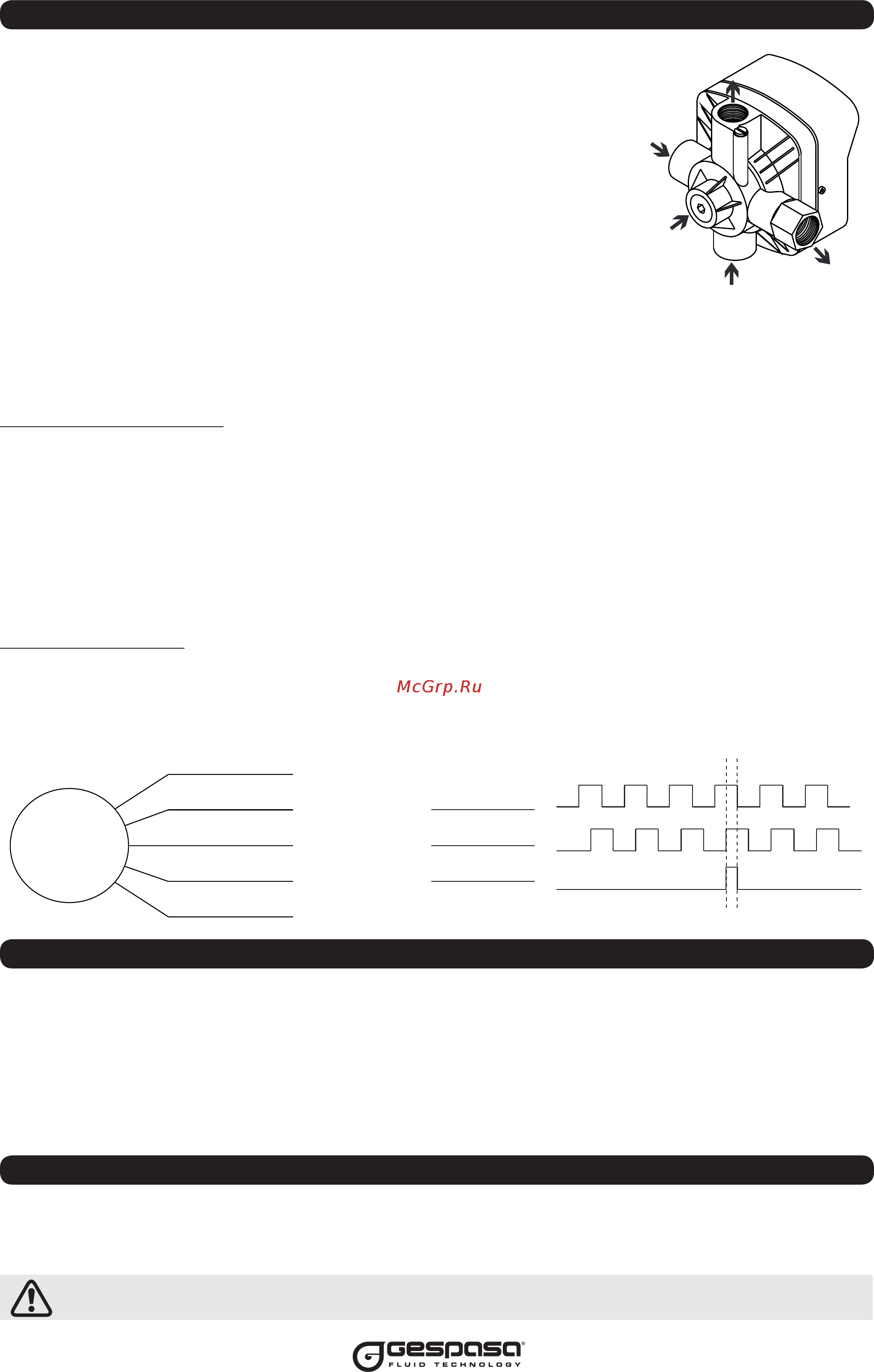

1. TECHNICAL FEATURES
MG-80 · MGI-80 (MG-80V · MGI-80V)
Flow: From 10 to 90 l/min
Accuracy: ±1 %
Connections: Inlet 1" GAS (BSP), with three optional positions.
Outlet 1" GAS (BSP), with two optional positions.
Counter: Mechanical · 3 digits (999 litres) Partial Indicator
· 6 digits (999,999 litres) Totalizator
Resistance Pressure: 13 bar
Test Pressure: 6 bar
Max. Operating Pressure: 3.5 bar
Measuring Chamber: Disc Fireproof
Construction: Made in non-toxic recyclable plastic with Viton-nitrilic joints and fi re-
proof chamber
Maximum Ambient Temperature: 60 ºC
Additional Adaptors: It can be supplied with special Male/Female Adaptors, in NPT, BSW, BSF, BRIGGS thread sizes.
Size: 150x150x170 mm
Total Weight: 1.6 kg
MG-80 · MG-80V DESIGN FACTORS
The MG-80 meter is for private use.
The 1" GAS (BSP) Female Inlet and Outlet Threads take part of the housing. It has 3 inlets. They can be seen from the back: frontal, left lateral
and bottom. It also has 2 outlets. They can be seen from the back: right side and top.
The meter is delivered with horizontal inlet and outlet. Nevertheless, the user can change their position in a short time; the plugs of the desired
direction must be taken out and put them on the non-desired direction. The inner threads have joints which guarantee the sealing; you must only
tighten until its locking, giving up pastes, liquids and sealing products.
The MG-80 volumetric mechanical meters have two numerations (registers):
- The partial with three big numbers where it is possible to read up to 999 litres. It can be reset through a lateral wheel after each supply.
- The 6-digit totalizer with capacity up to 999,999 litres; after that and with its operation, it is automatically reset, starting the cycle again.
MGI-80 · MGI-80V FEATURES
The MGI-80 · MGI-80V pulsers are different from the MG-80 meter. They have a pulser in its inner of 2 communication channels where the con-
nection to a consumption controller is allowed. It also has a lateral packing gland and 90 cm of connection cable.
There is a cable of fi ve little wires from the encoder:
Brown colour with 6-24 V feeding, white 0 V, A (or 1) green channel, B (or 2) yellow channel, and Z (or 3) grey channel.
The encoder generates 10 pulses per channel and supplied litre.
Please read all the instructions carefully before using the product. The people who do not know the instructions must not use it.
This manual describes how to use the mechanical meter according to the project hypothesis, the technical features, the types of installation, the
use, the maintenance and the training regarding to possible dangers.
The operation manual must be considered as a part of the mechanical meter and keep it for future inquiries during all its working life.
We suggest keeping it in a dry and protected place.
The manual refl ects the technical situation in the meter sale and cannot be considered inadequate for the reason of being updated according to
the new experiences. The manufacturer reserves the right to update the production and the manuals without being forced to update the production
and previous manuals.
The meter security, regarding to the equipment quality and reliability, is determined by the EC Directive Regulations and endorsed by the quality
controls of the enterprise leaders in the sector. It also guarantees the toxicity absence and the negative ecological effects. To avoid the possible
accidents, it is advisable to read the following warnings and cautions carefully:
3.1. A wrong meter installation or use can cause serious effects, both physical and material.
In
Entrada
In
Entrada
In
Entrada
Out
Salida
Out
Salida
Brown
Green
Yellow
Grey
White
MGI-80
Pulser
V + 6 to 24 V
Channel A
Channel B
Channel Z
0
2. WARNINGS
3. SECURITY INSTRUCTIONS
3.2. Do not smoke when the fl ammable fl uids, hydrocarbons, are transferred. A FIRE CAN BE CAUSED.
