4. Charge the battery cartridge once in every six

months if you do not use it for a long period

of time.

FUNCTIONAL DESCRIPTION

CAUTION:

• Always be sure that the tool is switched off and the

battery cartridge is removed before adjusting or

checking function on the tool.

Installing or removing battery cartridge

Fig.1

CAUTION:

• Always switch off the tool before installing or

removing of the battery cartridge.

•

Hold the tool and the battery cartridge firmly when

installing or removing battery cartridge.

Failure to

hold the tool and the battery cartridge firmly may cause

them to slip off your hands and result in damage to the

tool and battery cartridge and a personal injury.

To remove the battery cartridge, slide it from the tool

while sliding the button on the front of the cartridge.

To install the battery cartridge, align the tongue on the

battery cartridge with the groove in the housing and slip

it into place. Insert it all the way until it locks in place

with a little click. If you can see the red indicator on the

upper side of the button, it is not locked completely.

CAUTION:

• Always install the battery cartridge fully until the

red indicator cannot be seen. If not, it may

accidentally fall out of the tool, causing injury to

you or someone around you.

• Do not install the battery cartridge forcibly. If the

cartridge does not slide in easily, it is not being

inserted correctly.

Battery protection system

(Lithium-ion battery with star marking)

Fig.2

Lithium-ion batteries with a star marking are equipped

with a protection system. This system automatically cuts

off power to the tool to extend battery life.

The tool will automatically stop during operation if the

tool and/or battery are placed under one of the following

conditions:

• Overloaded:

The tool is operated in a manner that causes

it to draw an abnormally high current.

In this situation, release the switch trigger on

the tool and stop the application that caused

the tool to become overloaded. Then pull the

switch trigger again to restart.

If the tool does not start, the battery is

overheated. In this situation, let the battery

cool before pulling the switch trigger again.

• Low battery voltage:

The remaining battery capacity is too low

and the tool will not operate. In this situation,

remove and recharge the battery.

Indicating the remaining battery capacity

Fig.3

When you pull the switch trigger, the LED display shows

the remaining battery capacity as the following table.

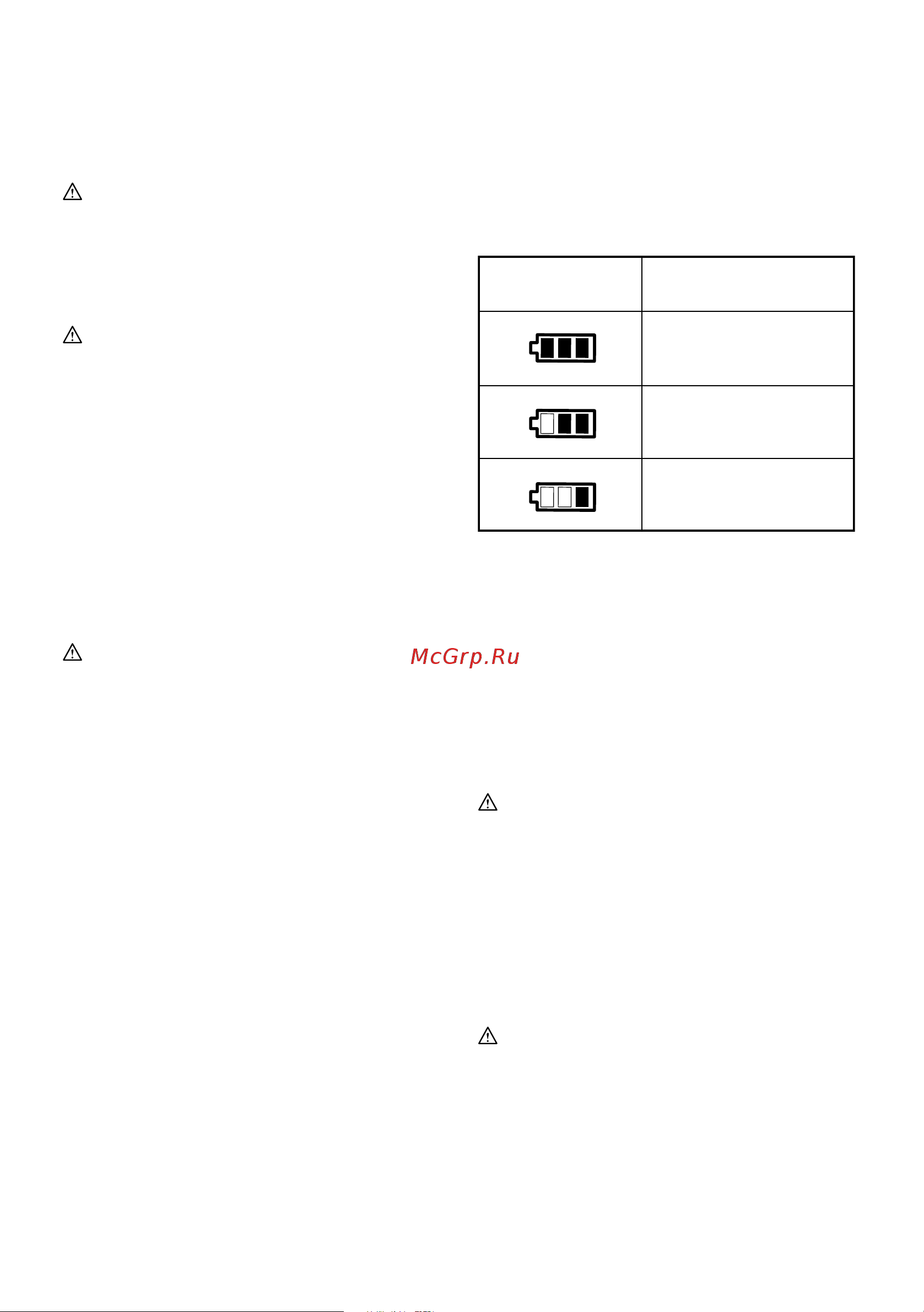

LED indicator status Remaining battery capacity

About 50% or more

About 20% - 50%

About less than 20%

013980

NOTE:

• The LED display goes off approximately one

minute after releasing the switch trigger to save

the battery power. To check the remaining battery

capacity, slightly pull the switch trigger.

• When the LED display lights up but the tool does

not work even with a recharged battery cartridge,

cool down the tool fully. If the condition does not

change, have the tool repaired by a Makita local

service center.

Switch action

CAUTION:

• Before installing the battery cartridge into the tool,

always check to see that the switch trigger

actuates properly and returns to the "OFF"

position when released.

Fig.4

To start the tool, simply pull the switch trigger. Tool

speed is increased by increasing pressure on the switch

trigger. Release the switch trigger to stop.

Lighting up the front lamp

CAUTION:

• Do not look in the light or see the source of light

directly.

Fig.5

Pull the switch trigger to light up the lamp. The lamp

keeps on lighting while the switch trigger is being pulled.

The lamp goes out 10 -15 seconds after releasing the

trigger.
