CONDTROL UniX 360 Green Pro

PRODUCT DESCRIPTION

This cross line laser UniX 360 Green Pro CONDTROL is intended for determining and checking

horizontal and vertical lines. (see figure A-C). This mode allows constructing inclined planes

(see figure D).

The measuring instrument is suitable for operation in enclosed working sites and outdoor.

It has 2 operation modes:

- working with automatic levelling. Levelling function automatically compensates

irregularities within the self-levelling range of ±5°(see figure E,F).

- working without automatic levelling for inclined planes. (see figure D)

PULSE mode allows to use laser receiver to increase a working range of the instrument or to

work when laser is hard to define in bright lighting conditions.

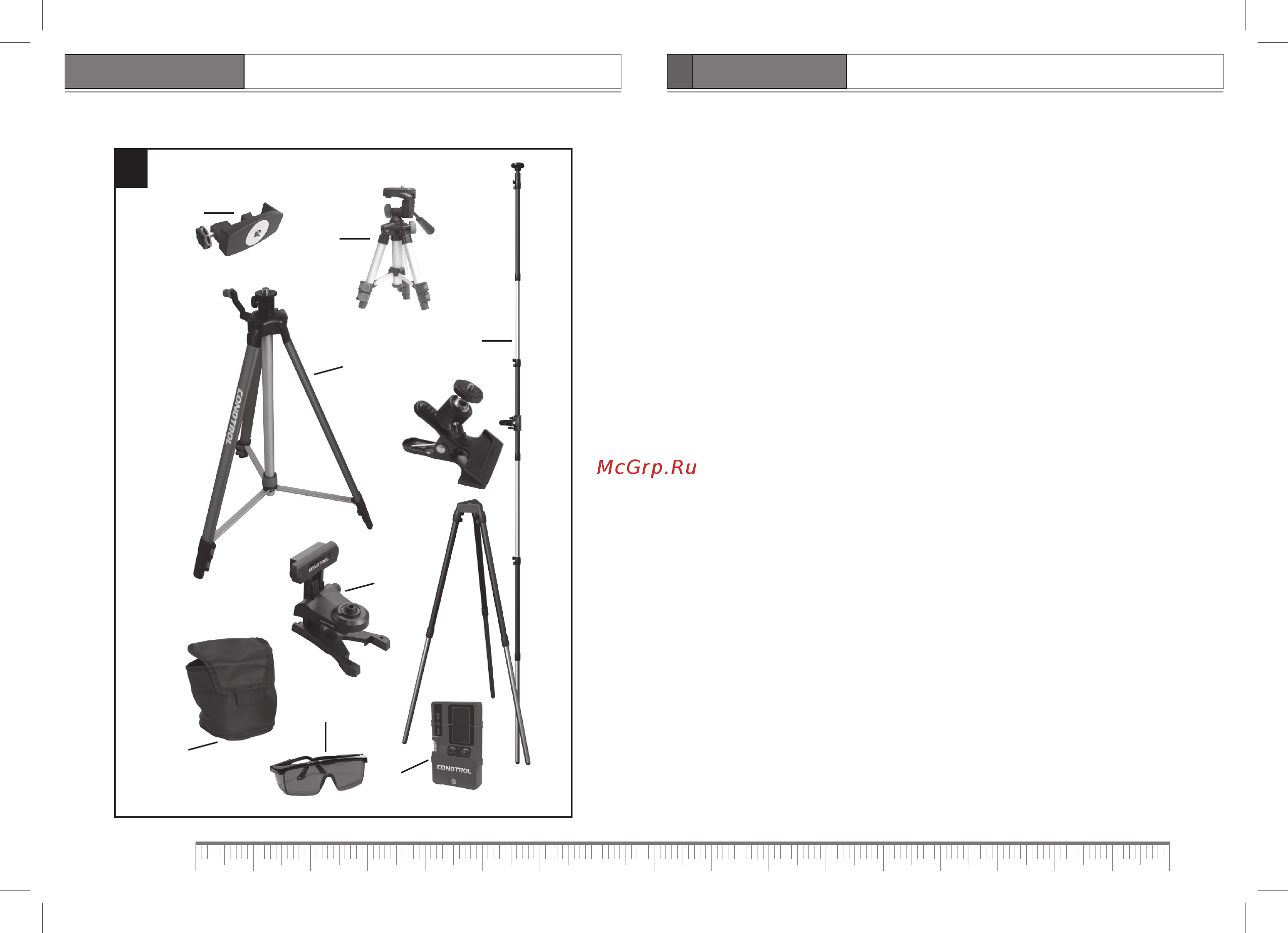

1 - Laser lines apertures

2 - Switch on/off laser lines

3 - Activate pulse mode / locked mode

4 - Low battery indicator

5 - Pulse mode indicator

6 - Battery cover

7 - Tripod thread 1/4’’

8 - Switch bar

9 - Screw mount

10 - Power plug

11 - Tripod with elevating head 1/4”*

12 - Tripod-Transformer*

13 - Universal Wall Mount *

14 - Pouch

15 - Laser intensive Glasses*

16 - Electronic Receiver*

17 - Tripod 1/4’’*

18 - Universal mount Clamp*

* not included in the delivery set

SET

Cross line laser – 1 pc.

Pouch – 1 pc.

Batteries (type АА) – 4 pcs.

Power cable – 1 pc.

User manual – 1 pc.
