Gespasa IRON-50 Ex 230 VAC (10035) [2/4] Technical specifications

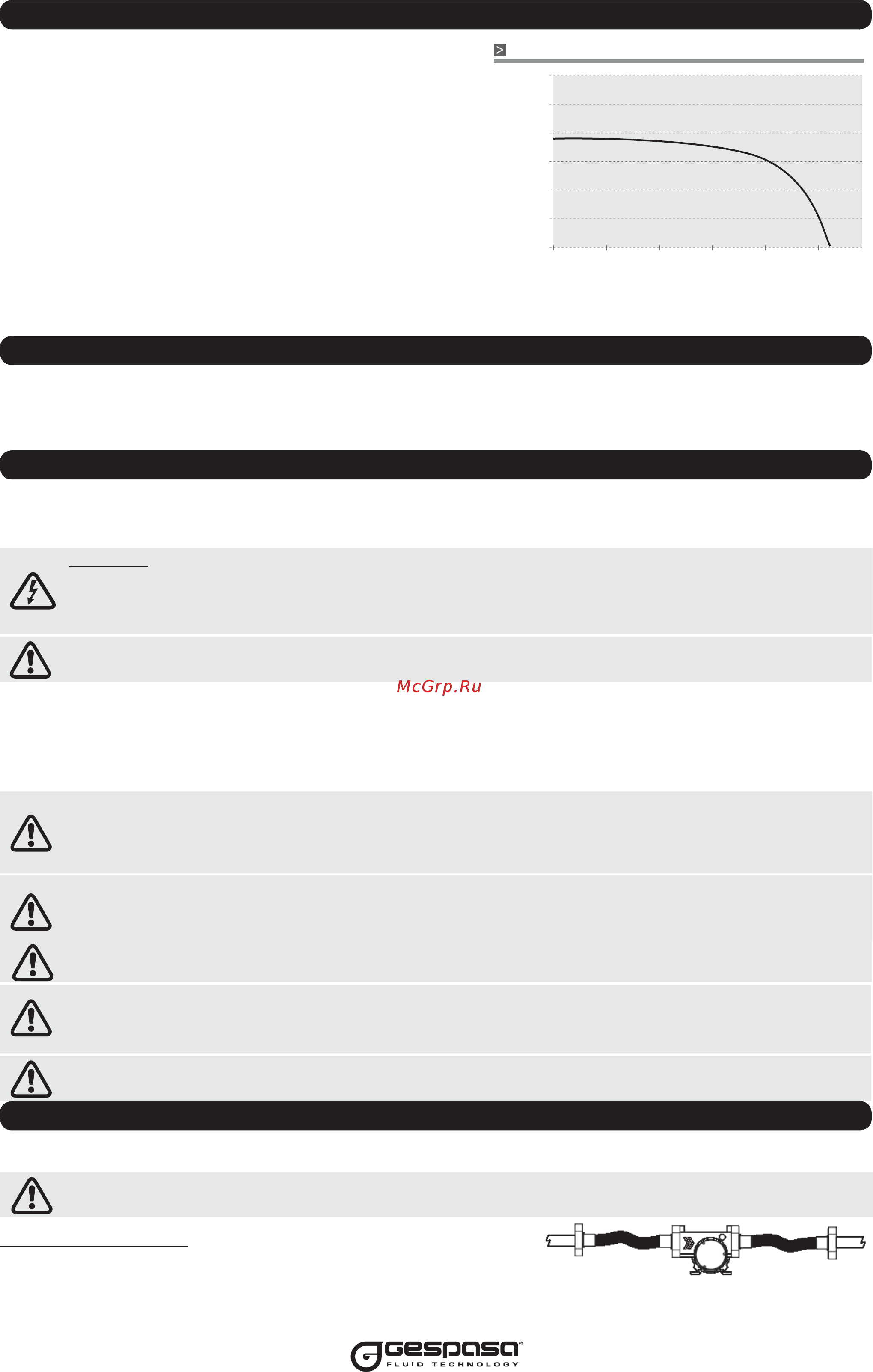

![Gespasa IRON-50 Ex 230 VAC (10035) [2/4] Technical specifications](/views2/1633071/page2/bg2.png)
Read this manual before installing or handling this kit.
INSTALLATION WITH OWN EQUIPMENT
- Before connecting the pump, check the supply is 230 VAC and the installation has an earth connection.
- If possible, connect the pipe to the pump through fl anges (code 800003022 · F1" aluminium fl ange kit). This
system is better than those connected through threads as the pump does not suffer any tension.
- If the installation has a rigid pipe, install a section of, at least, 20 cm of fl exible pipe before and after the pump.
- If the pump is connected through threads, avoid to force the pump body. Any little displacement between the body and the motor can cause damages.
- Seal the hose connections of the hoses or pipes with Tefl on or compatible seal liquid. Any air inlet through the suction tube will cause the pump does not suction. Make sure the
leak absence.
1. TECHNICAL SPECIFICATIONS
2. WARNINGS
Please read these instructions carefully before using this product. The people who do not know the instructions must not use it.
This manual describes how to use the pump according to the project hypothesis, the technical specifi cations, the installation type, the use, the maintenance and the training relating
to the possible dangers.
The instruction manual must be considered as a part of the pump and keep it for future inquiries during all its working life. We suggest keeping it in a dry and protected place.
The manual refl ects the technical situation when selling the pump and cannot be considered inadequate for the reason of being updated according to the new experiences. The
manufacturer reserves the right to update the production and the manuals without being forced to update the old ones.
3. SECURITY INSTRUCTIONS
3.1. Make the electric connection only with the qualifi ed personnel following the applicable electric regulations.
3.2. Connect adequately to the earth. Use approved cables and electric equipment.
3.3. The broken down motors must be fi xed in an authorized workshop or in our factory.
3.4. Check the packaging in the receipt of the goods and store it in a dry place.
3.5. Check the kit does not have any damage during their transportation or storage.
For the correct pump operation, do not let the pump work over +40 ºC and under -10 ºC. Otherwise, there can be a leak or an explosion danger.
4. INSTALLATION
3.7. ATTENTION: If the pump, the hose and the nozzle are outdoors in summer weather or hot countries, after the refuelling (once the pump is stopped), it is advisable to open the
nozzle in order to discharge the accumulated pressure of the hose.
Otherwise, the high sun temperature makes possible to create an overpressure because of the expansion due to the diesel dilation the pipes have, being able to cause a retainer or
mechanical element breaking of the pump and/or the meter.
If the pump was without operating in a place exposed to bitterly cold weather or ice, it would be necessary to empty the hoses and the pump body.
It would be also advisable to make this operation if the pump or the supply kit was without operating during a long time even though the temperature was normal.
3.8. If the hose connections are made with clamps, ensure they are well-tightened in order to avoid any air intake.
3.9. Please avoid spilling any type of liquid on the motor.
3.10. ATTENTION
The installer will be responsible of using the pipes with the adequate features. The inadequate use of the pipes could cause the contamination and damages
to the pump or people.
Check all the connections after the fi rst installation and daily control they are not loosened. If necessary, tighten them. The connection loosening could cause
serious ecological and security problems.
3.11. ATTENTION
The pump must not be switched on before fi nishing its installation. It is completely forbidden to put the fi ngers or other parts of the body into the holes: the
pump has parts in motion. Before starting the pump disassemble or assembly, always switch it off and disconnect it from the power supply in order to avoid
accidental ignitions with the unprotected parts in motion.
The motor has an additional thermal protection (PTC's) limiting their coil temperature to 135 ºC. These should be connected to a power failure element that has an SIL-1 integrity safety
level according to the EN 61508 regulation. This device will be installed in a non-hazardous area. When placing in a classifi ed zone, it will be provided with an adequate protection
where it is installed.
Pay special attention to the earthing connection of the kit so that it meets the adequate technical requirements for the electrical discharge and the protection
of the potential eddy currents may be applied.
0
10 20 30 40 50
0
0.5
1
1.5
2
3
2.5
Flow Curves
Flow (l/min)
Pressure (bar)
NPSH (bar)
60
3.12. IT IS COMPULSORY THE MOTOR GUARD INSTALLATION FOR A POWER OF 0.18 kW AND AN ADJUSTABLE CONSUMPTION BETWEEN 1-2 A FOR THE KIT
WARRANTY.
3.6. ATTENTION
The electric connections must be done according to the EN 60204-1:2007 CORR:2010 Regulation. In their series version the electric motor is not equipped
with the protection against electric overloads. The user will take charge of Its assembly.
Connect the cable to the supply system after checking it has the same values as those written in the motor plate (it admits a tension tolerance of 10 %). The
box-switch of the motor has electric parts whose assembly must be done by specialized personnel complying with the security rules.
3.13. IMPORTANT
This pump has been designed for its use in explosive atmospheres of Class I Zone I according to EN 60079-10-1 with fl ammable liquid processes of petrol,
oil, aviation fuel and other included into Group IIB with autoignition temperature higher than 135 ºC. It is prohibited to use this pump associated to substances
of Classe I Group IIC, Class II (combustible powder), so as in Zone 0.
3.14. IMPORTANT
The user is the only responsible of this pump application, according to that describe in this instruction manual.
- IRON-50 EX 230 VAC self-suction explosionproof pump
- Eccentric of self-adjusting blades
- With recirculation bypass system
- *Flow with free outlet: 50 l/min
- Motor: 0.18 kW 230 VAC 50 Hz EExd
- Noise level: L
EQA
< 85 dBA (1 m)
- Operation duty: S2 30'
- With thermal protection · IP-55 protection
- Consumption: 1-1.8 A
- 2,850 rpm
- Bypass pressure: 1.7-1.9 bar
- ON/OFF switch
- 3 m cable
- Connection: 1" GAS (BSP) through threads and fl anges
- Operation temperature: -10 ºC +40 ºC
- ATEX II2G Category
- Protection mode: Own supply: Ex h IIB T4 Gb
Third-part supply: Motor: Ex d IIB T4 Gb
Dim. (approx.): 250x165x155 mm (length x width x height)
Weight (approx.): 11.80 kg
*NOTE: When using an automatic nozzle or any other accessory (like meter, fi lter...), the fl ow will be reduced (see the table in the front page).
