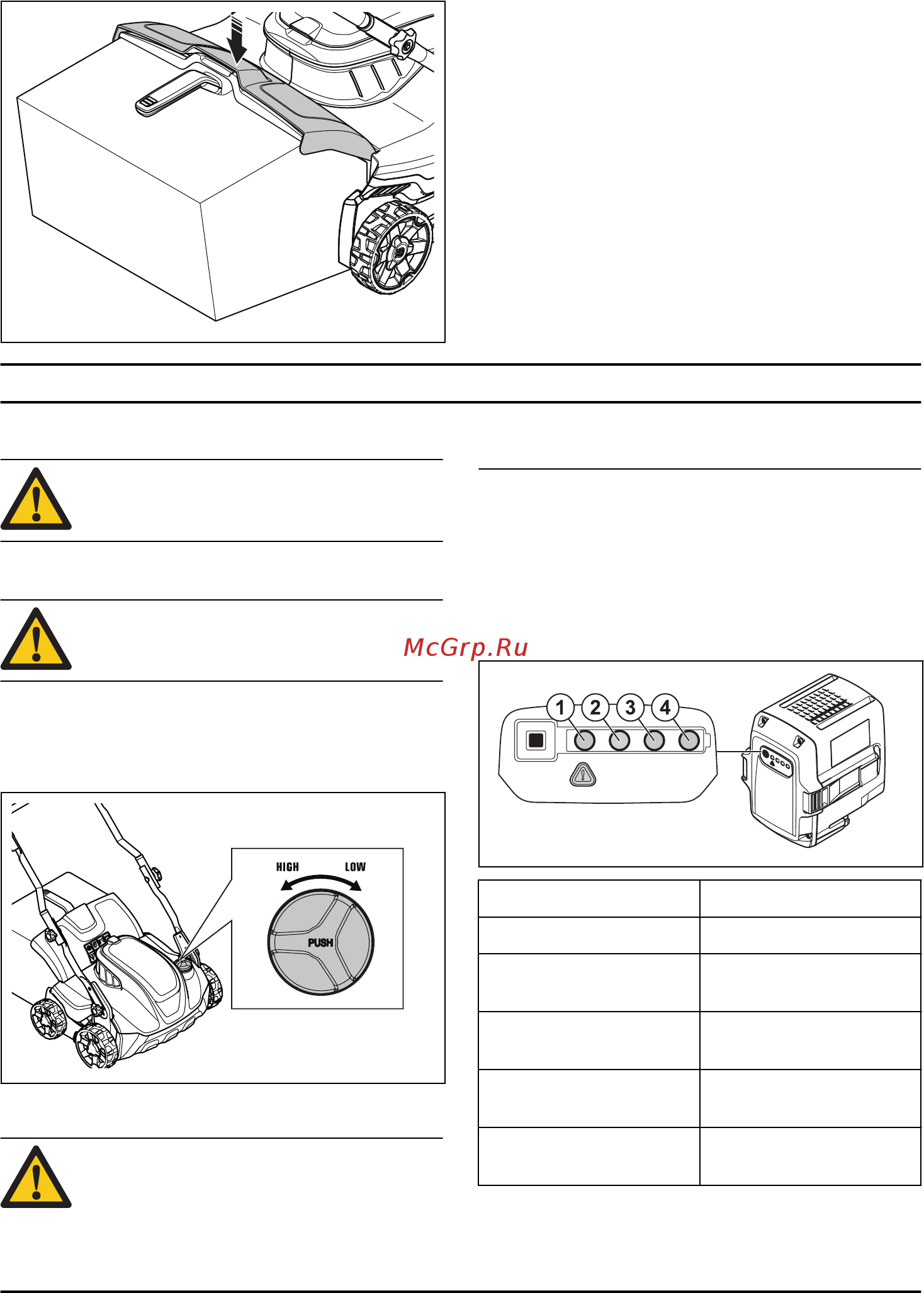

Husqvarna S138i (9679222-01) [15/720] Introduction

6. Attach the grass catcher to the top edge of the

chassis. Make sure that the rear cover seals against

the grass catcher to prevent leakage.

Operation

Introduction

WARNING: Before you operate the product,

you must read and understand the safety

chapter.

To set the work depth

WARNING: Do not adjust the work depth

when you operate the product.

1. Push and turn the adjustment knob for the work

depth counterclockwise to increase the work depth.

2. Push and turn the adjustment knob for the work

depth clockwise to decrease the work depth.

Battery

WARNING:

Before you use the battery, you

must read and understand the safety

chapter. You must also read and understand

the operator's manual for the battery and the

battery charger.

Battery status

The display shows the remaining battery capacity and if

there are problems with the battery. The battery capacity

is shown for 5 seconds after the product is switched off

or the battery indicator button is pressed. The warning

symbol on the battery is on when an error has occurred.

See

Battery on page 21

LED lights Battery status

All LEDs are lit Fully charged (75-100%)

LED 1, LED 2, LED 3 are

lit

The battery is 50%-75%

charged

LED 1, LED 2 are lit The battery is 25%-50%

charged

LED 1 is lit The battery is 0%-25%

charged.

LED 1 flashes The battery is empty.

Charge the battery.
