3631 Wireless Telephone Administrator Guide 11
Downloading 46xxsettings File via USB Cable
The 3631 telephone can support downloading of the 46xxsetings.txt file from a Windows
PC that is connected to the phone via a USB cable.
A single PC can be connected to one or multiple phones simultaneously. Connecting to
multiple phones requires a USB hub and multiple USB cables.
Note
Only a Samsung cable with an 18-pin connector can be used to support USB operations
on the 3631 telephone. This cable is orderable through Avaya. This cable works with the
standard Windows USB driver; it is not necessary to install a special USB driver to use
this cable.
Use the following procedure to download the 46xxsettings.txt file to the phone via a USB
cable.
1. On the 3631 telephone, access the Advanced Settings menu
• Be sure to select the Admin access mode and specify the Admin password
(default value is 00000000).
2. From the Advanced menu, select the Service sub-menu.
3. From the Service menu, select Backup & Restore over USB
4. From the Backup & Restore … menu, select Download settings file
• The “Starting USB driver …” status message is displayed
5. When prompted, insert (or remove and re-insert) the USB cable into its connector on
the bottom of the phone.
• A confirmation window appears, with instructions on copying files.

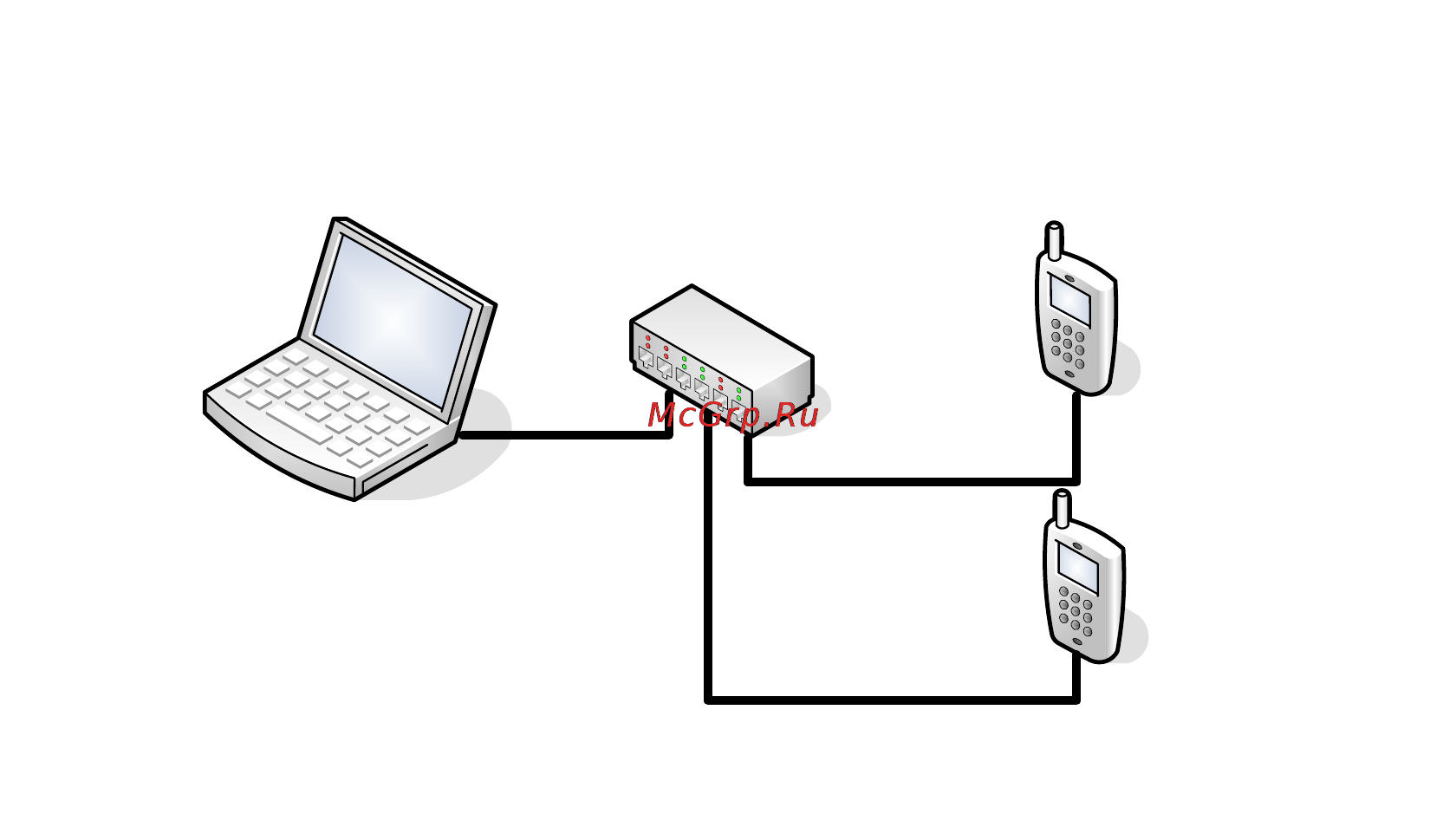

USB HUB
Windows PC
3631 Phone
Samsung USB
Debug Cable
Samsung USB
Debug Cable
USB Cable
Connect Samsung USB Debug Cable with the Phone for USB Operations
