Weldy BOOSTER EX 2 [4/48] Description of tool

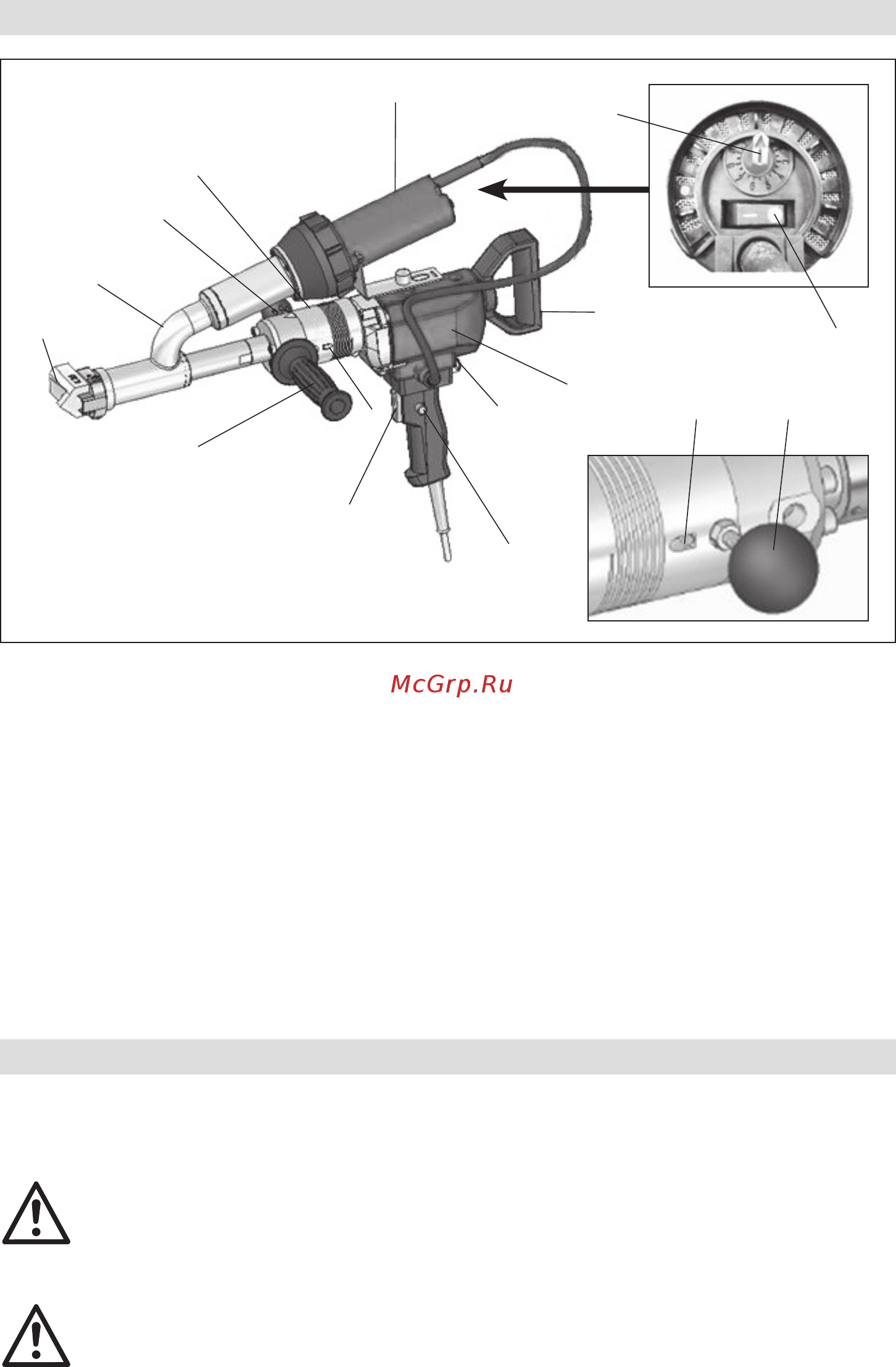

Description of tool

1. Welding shoe

2. Hot air tube group

3. Tool rest

4. Welding rod opening

5. Hot air blower

6. Tail handle

7. Drive unit

8. Overload protection fuse

9. Locking device drive on/o switch

10. Tool drive on/o switch

11. Handle

12. Air temperature potentiometer

13. Hot air blower switch

Instruction for tool switch:

•

For starting the tool press and hold tool drive on/o switch (10)

•

For stopping the tool release tool drive on/o switch (10)

•

While holding tool drive on/o switch (10) press locking device drive on/o switch (9) for automatic

mode.

Before turn on power supply, all switches have to be turned o and make sure potentiometer is at «0».

Preparation for welding

The hand extruder must not be operated in inﬂ ammable environments or where explosion hazards

exist. Ensure stable position during operation. The connection cable and the welding rod must remain

unimpeded and must not hinder the user or others during operation.

Ensure power supply voltage is single phase 220V~230V,

with minimum power load capacity of 3000 W.
