ASSEMBLING THE ROLLER WHEEL ASSEMBLIES
(FIG. A)
NOTE: All four wheel assemblies are different.
1. The two stationary wheel assemblies (9) are used for
left side legs and the other two roller wheels are used
for right side legs.
2. Position the wheel as shown onto the left front leg,
insert bolt (10) through the stand leg. Place nut (8)
onto bolt and tighten.
3. The stationary wheel marked “ R ” is used for Left-
Rear leg and marked “ F ” is used for Left-Front leg.
4. Insert bolt (11) through wheel bracket and left front
leg as shown, thread nut (12) onto bolt and tighten.
5. Repeat steps 1-2 for left rear stationary wheel.
6. Insert bolts (13 & 14) through right front roller wheel
bracket and right front leg as shown. Thread one nut
(23) onto each of the two bolts and tighten.
7. The roller wheel marked “ R ” is used for the Right-
Rear leg and marked “ F ” is used for Right -Front
leg.
8. Repeat steps 4-5 for right rear leg and roller
assembly.
9. Place the stand on a level surface and adjust the
Left-Front and Left-Rear adjustable nut (26) and foot
pads (27), so all legs are contacting the floor and are
at similar angle on floor.
ASSEMBLE BASE COVER TO TABLE SAW (FIG. B)
NOTE:
Your saw is supplied with the base cover
unassembled.
1. Assemble the base cover (1) to the saw base (2) by
using the 4 screws (3) in the loose parts bag supplied .
2. Tighten the 4 screws (3) before mounting the saw on
the stand.
Fig. B
For your own safety, never connect the plug to
power source outlet until all assembly steps are
completed and you have read and understood the
safety and operational instructions.
ESTIMATED ASSEMBLY TIME 30~40 MINUTES
STAND ASSEMBLY (FIG. A)
1. Unpack all parts and group by type and size. Refer to
the parts list for correct quantities.
2. Attach one long upper support (1) to top of leg (2)
using one bolt (3) and nut (4).
NOTE:
Align detents in stand leg with support brackets to
ensure proper fit.
Do not tighten bolts until stand is properly
aligned (see step #7 before tightening).
3. Attach other end of long upper support to top of
another leg using one bolt and nut.
4. Attach one bottom support (5) to the higher holes
(19) of the leg using bolt (3) and nut (4). This
completes the front frame section.
5. Assemble rear frame section in exactly the same
manner.
6. Join front and rear frame assemblies using two short
upper supports (6) and two bottom supports (7), bolts
and nuts.
NOTE: Place the two bottom supports (7) to the
lower holes (20) of the leg.
7. Place stand on level surface and adjust so all legs
are contacting the floor and are at similar angles to
the floor, and detents in stand leg align with support
brackets, then tighten all bolts.
NOTE: To avoid rocking, tighten all bolts.
Fig. A

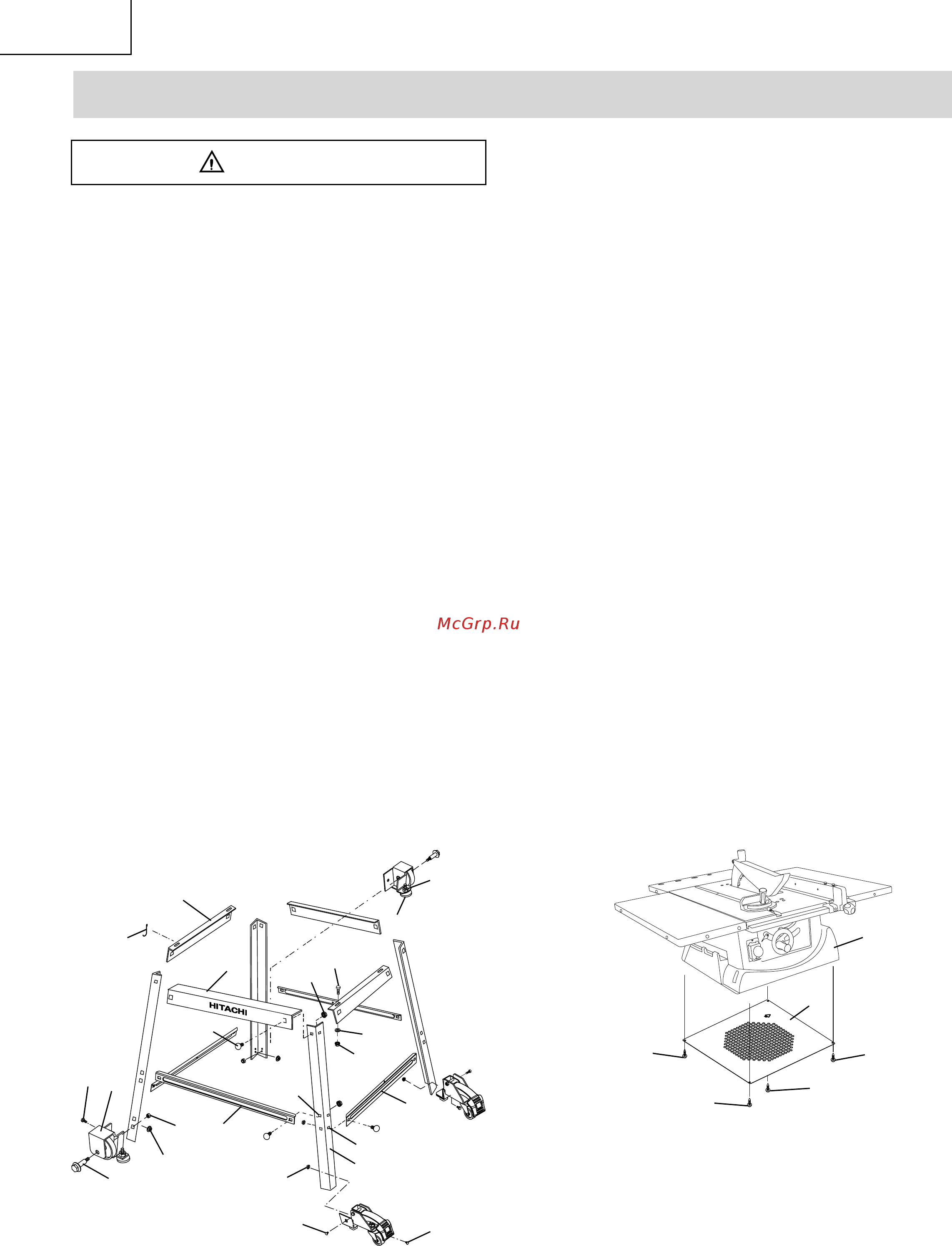

ASSEMBLY AND ADJUSTMENTS
3
3
3
3
1
2
WARNING
6
22
9
11
10
12
8
5
23
13
14
2
7
3
4
1
24
25
26
27
19
20
28
