– 11 –

English

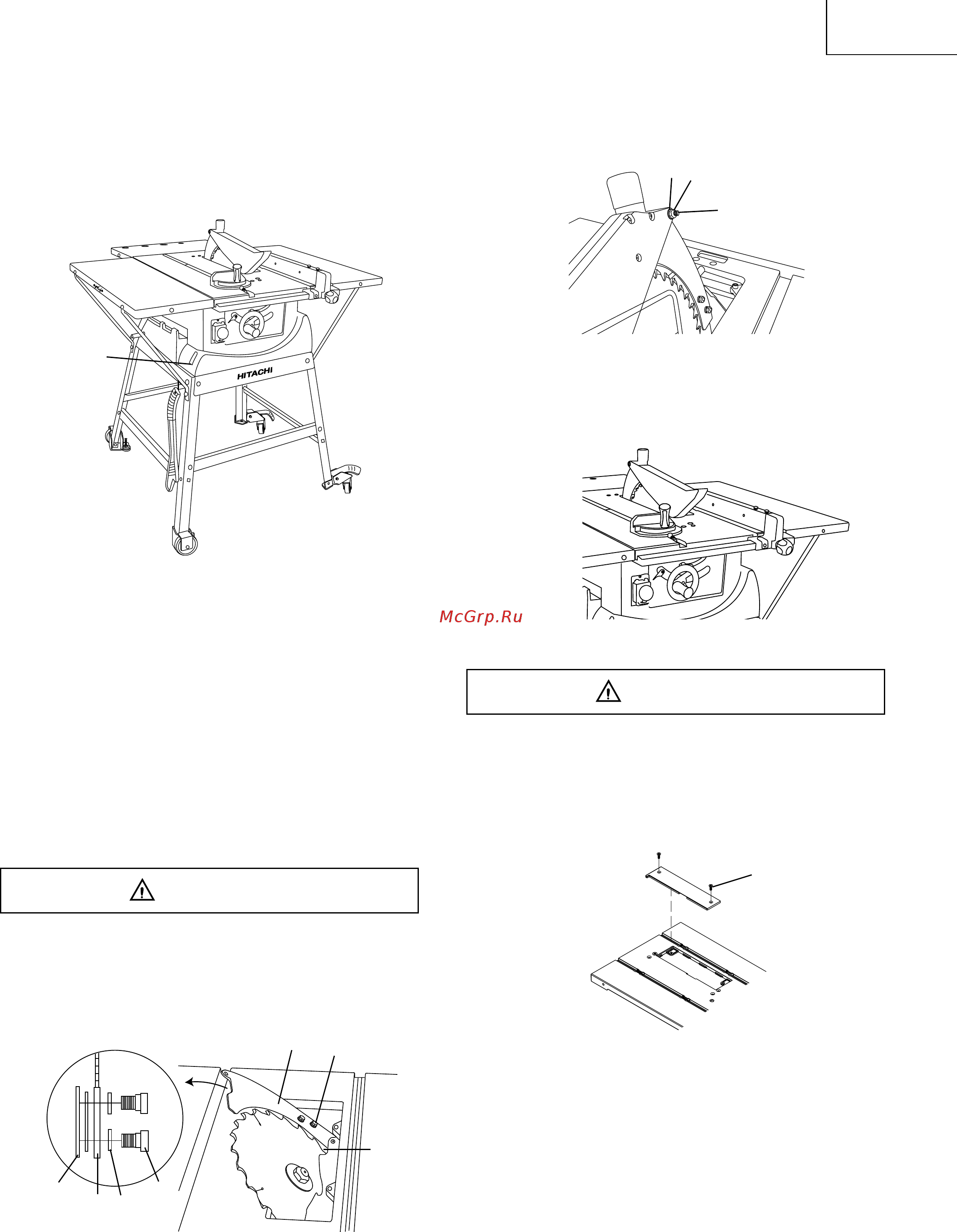

ASSEMBLE TABLE SAW TO STAND (FIG. A & C)

1. Position the saw base on the leg set and match the

holes (1) of the saw base to the holes of the stand.

(Fig. C)

2. Secure the saw base to the leg set using bolts (28),

washers (24) and nuts (25). (Fig. A)

Fig. C

INSTALLING THE PUSH-STICK STORAGE (FIG. A)

Attach the hook (22-Fig. A) into the left short upper

support (6) for push stick storage.

INSTALLING THE RIVING KNIFE (FIG. D)

1. Rise the blade to its highest position by turning the

handwheel and tilt the blade to 45° bevel angle.

2. Loosen the screws on the table insert and remove the

table insert.

3. Place the knob bolts (3), and ﬂat washers (4) on the

riving knife bracket (5) and the riving knife (6).

4. Tighten the knob bolts (3).

5. Replace the table insert and tighten the screw.

The riving knife thickness of 2.5 mm. Make sure the

blade and riving knife are aligned on the same line.

If not, adjust the riving knife by loosening the knob

bolts. It should be less than 5 mm at all positions.

Fig. D

Blade Guard Assembly (Fig. E)

Place the blade guard on the riving knife and secure it

with the bolt (1), ﬂat washer (2), and nut (3).

Fig. E

INSTALLING THE RIP FENCE (FIG. F)

Slide in the rip fence assembly from the end of the table

with aligning the groove in the front of the table and the

tongue on the fence bracket.

Fig. F

INSTALLING AND CHANGING THE BLADE (

FIG. G, H)

To avoid injury from accidental starting, always turn

the switch off (“0”) and remove the power plug from

the power source before changing the blades.

1. Loosen the screws (3) on the table insert by a

screwdriver and remove the table insert.

Fig. G

2. Raise the saw blade to its maximum height.

3. Use the supplied open end wrench (1) to keep the

arbor from turning and the supplied box-end wrench

(2) to loosen the arbor nut. (Fig. H)

4. Remove the arbor nut and ﬂange.

5. Replace the saw blade. Make sure the teeth of the

blade point down at the front of the table.

6. Assemble the arbor ﬂange and arbor nut back to the

saw arbor and tighten the arbor nut.

7. Replace the table insert and retighten the two screws.

WARNING
