– 12 –
English
Fig. J

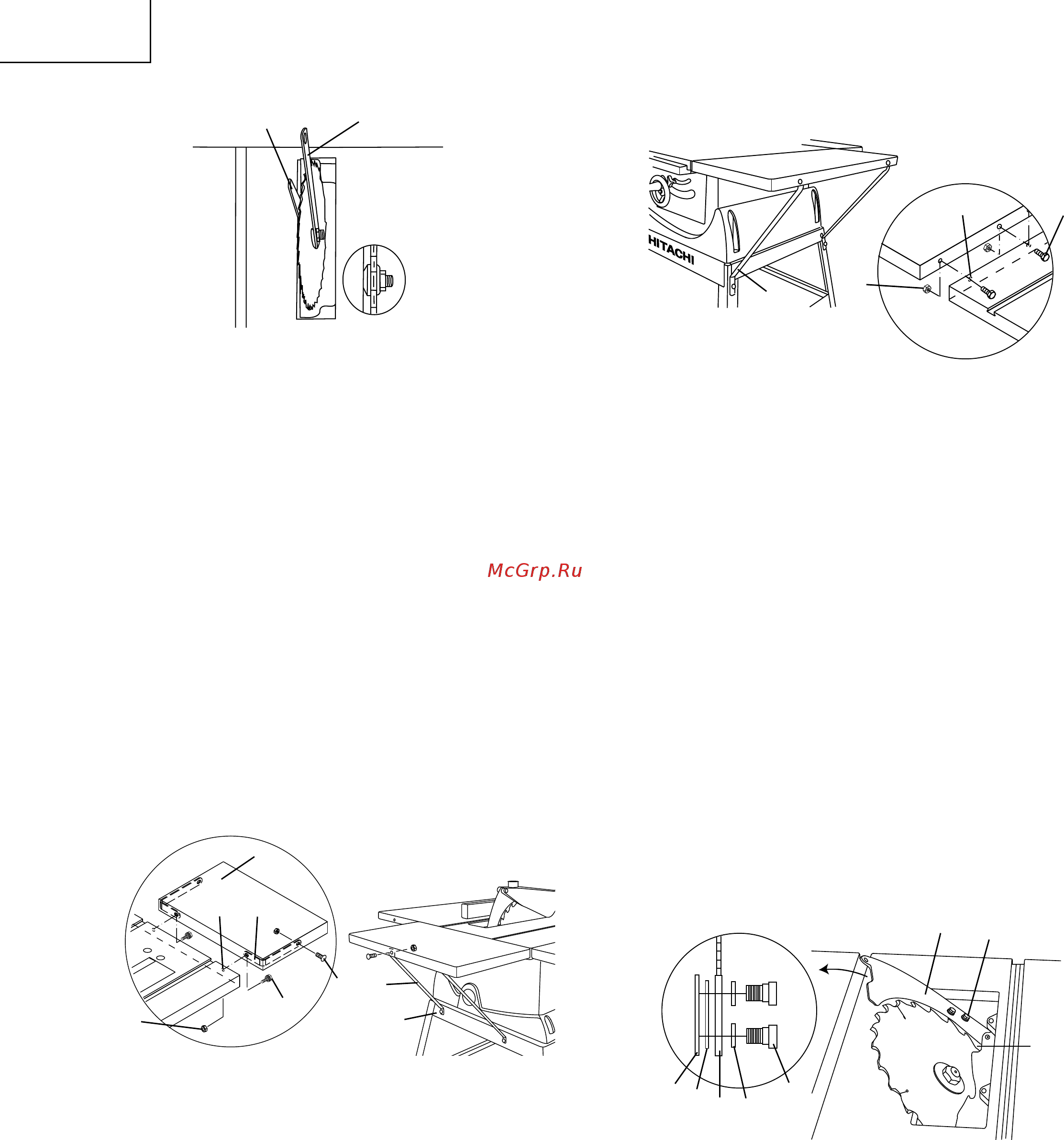

ALIGNING THE RIVING KNIFE (FIG. K)
1. If the blade and riving knife are not correctly aligned:
a. Remove the table insert by removing the screws.
b. Remove the blade guard by removing the bolt, flat
washer and nut that lock the guard in place.
c. Loosen the two bolts (3) from the riving knife
bracket (5).
2. Insert the spacers (7) between the riving knife (6)
and bracket (5).
3. Retighten the two mounting bolts (3) securely.
4. Replace the blade guard assembly using the bolt, flat
washer and nut.
5. Check the riving knife and blade alignment again at
both 90° and 45°.
6. Add or remove the spacers until the alignment is
correct.
7. Replace the table insert.
Fig. K
NOTE: This tool is accurately adjusted before shipping
from the factory. Check the following accuracy and
readjust them if necessary in order to obtain the best
results in operation.
Fig. H
INSTALLING REAR TABLE EXTENSION (FIG. I )
1. Place the rear table extension (3) next to the table
saw, aligning the mounting holes (1).
2. Insert the bolt (2) through the bracket (5), rear table
extension (3) into the mounting hole (1).
3. Place the nut (6) and tighten.
4. Insert the bolt (2) and through the table extension (3)
into the other end of the bracket (5) and tighten the nut.
5. Attach the other end of the rear table extension to the
table saw using bolts and nuts.
6. Place a straight edge or combination square on the
saw table, across the rear table extension (3).
7. Adjust the bolts (2) until the extension is flush with the
saw table. Tighten the nuts (6).
8. Place the extension supports (7) to the rear table
extension and secure them on the stand (4) with bolts
and nuts.
Fig. I
INSTALLING TABLE SIDE EXTENSION (FIG. J)
1. Place the left table extension next to the saw table,
aligning the mounting holes (1).
2. Insert the bolts (4) through the mounting holes and
attach the nuts (2).
3. Place a straight edge or combination square on the
saw table, across the table extension.
4. Adjust the nut (2) until the extension is flush with the
saw table. Tighten.
5. Place the extension supports (3) to the left table
extension and secure them on the stand with bolts
and nuts.
6. Repeat these procedures for the right extension table.
6
3
4
5
7
3
5
6
1
2
2
1
4
3
4
2
3
1
5
7
6
8
