Ricoh Aficio 2020d [102/130] Changing the paper size in the optional paper tray unit

Troubleshooting

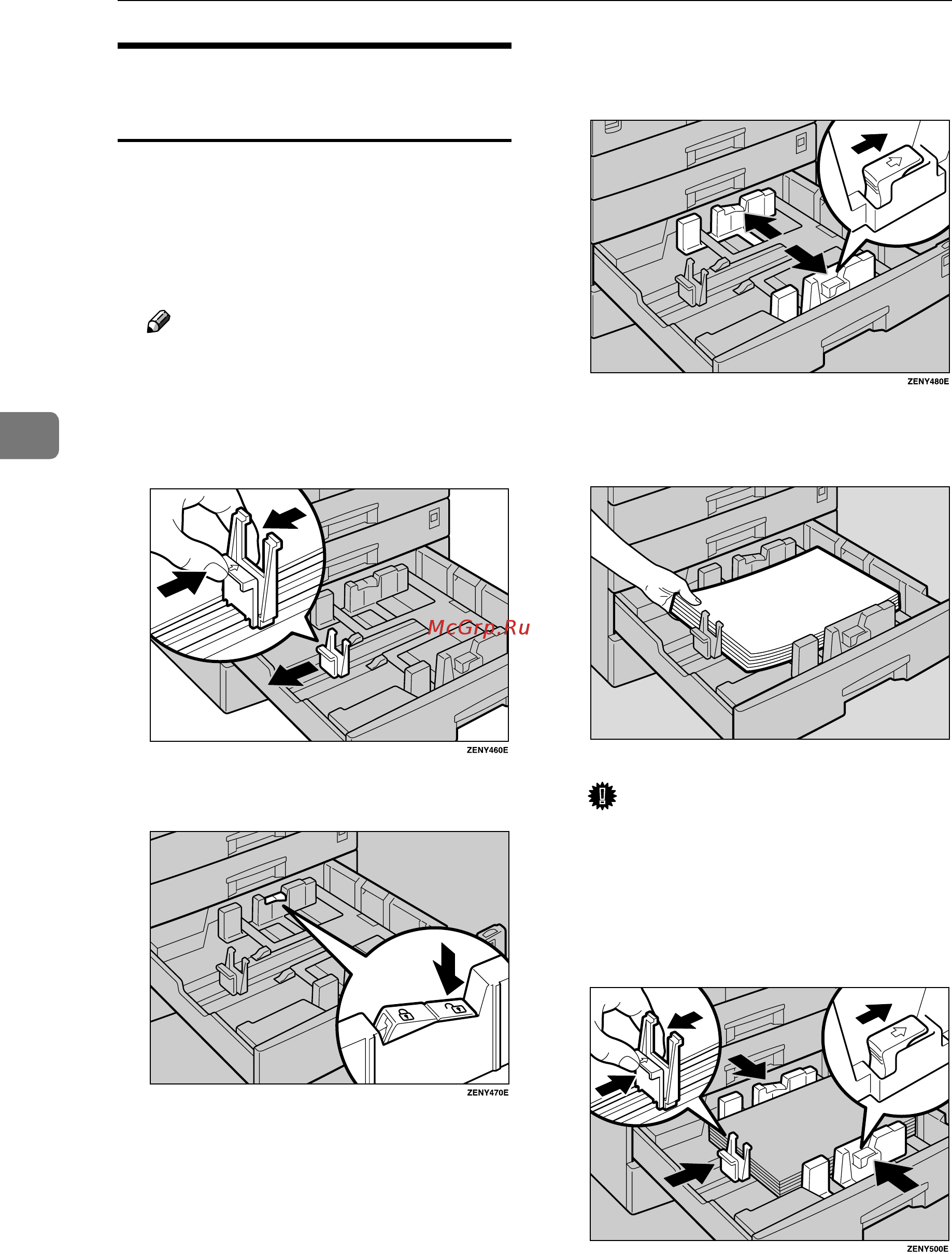

Changing the Paper Size in the

Optional Paper Tray Unit

Make sure the paper tray is not in

use.

Pull out the paper tray until it

stops.

Note

❒ Remove any remaining copy

paper.

While pinching the release lever,

adjust the back fence.

Press down the release button.

While pressing the release lever,

adjust the side fences.

Square the paper and set it in the

tray.

Important

❒ Do not stack paper over the lim-

it mark.

While pinching the release lever,

adjust the side and back fences to

the new paper size.

AAI034S
