TEMP Button : Push this button to decrease the indoor
temperature setting.
RESET Button: When you press the recessed RESET button,
all current settings are cancelled and the control will return to
the initial settings.
SLEEP Button: Press this button to go into the Energy-Saving
operation mode. Press it again to cancel. This function is only
can be used on COOL, HEAT and AUTO mode and maintain the
most comfortable temperature for you.
2
NOTE: COOL only model has no HEAT feature.
!
1
6
ON/OFF Button: Push this button to start operation, push the
button again to stop operation.
9
TEMP Button : Push this button to increase the indoor
temperature setting .
2
AIR DIRECTION Button: Press this button to change the swing
angle of the louver. The swing angle of the louver is 6 for
each press. When the louver swing at a certain angle which
would affect the cooling and heating effect of the air conditioner,
it would automatically change the swing direction . No symbol
will appear in the display area when press this button. (Not
applicable to units without this function).
o
MODE Selection Button: Each time the button is pressed, the
operation mode is shifted in the direction of the arrow:
AUTO
COOL
DRY
HEAT
FAN
3
FAN SPEED Button: Used to select the Fan Speed in four steps-
AUTO LOW MED or HIGH. Each time the button is pressed,
the fan speed mode is shifted.
8
TIMER ON Button: Press this button to initiate the auto-on time
sequence. Each press will increase the auto-timed setting in 30
minutes increments. When the setting time displays 10:00, each
press will increase the auto-timed setting 60 minutes increments.
To cancel the auto-timed program, simply adjust the auto-on time
to 0:00.
10
11
4
5
NOTE: While the unit is running under SLEEP operation
mode, it would be canceled if you press the other button.
!
1
Model
Transmission Distance
Lowest Voltage of CPU
Emitting Signal
Rated Voltage
R51M/(C)E, R51M/BG(C)E, RG51M2/(C)E,
RG51A/(C)E, RG51M3/(C)E.
-5 C 60 C
8m (when using 3.0 voltage,
it Gets 11m)
3.0V(Alkaline dry batteries LR03 2)
2.0V
~

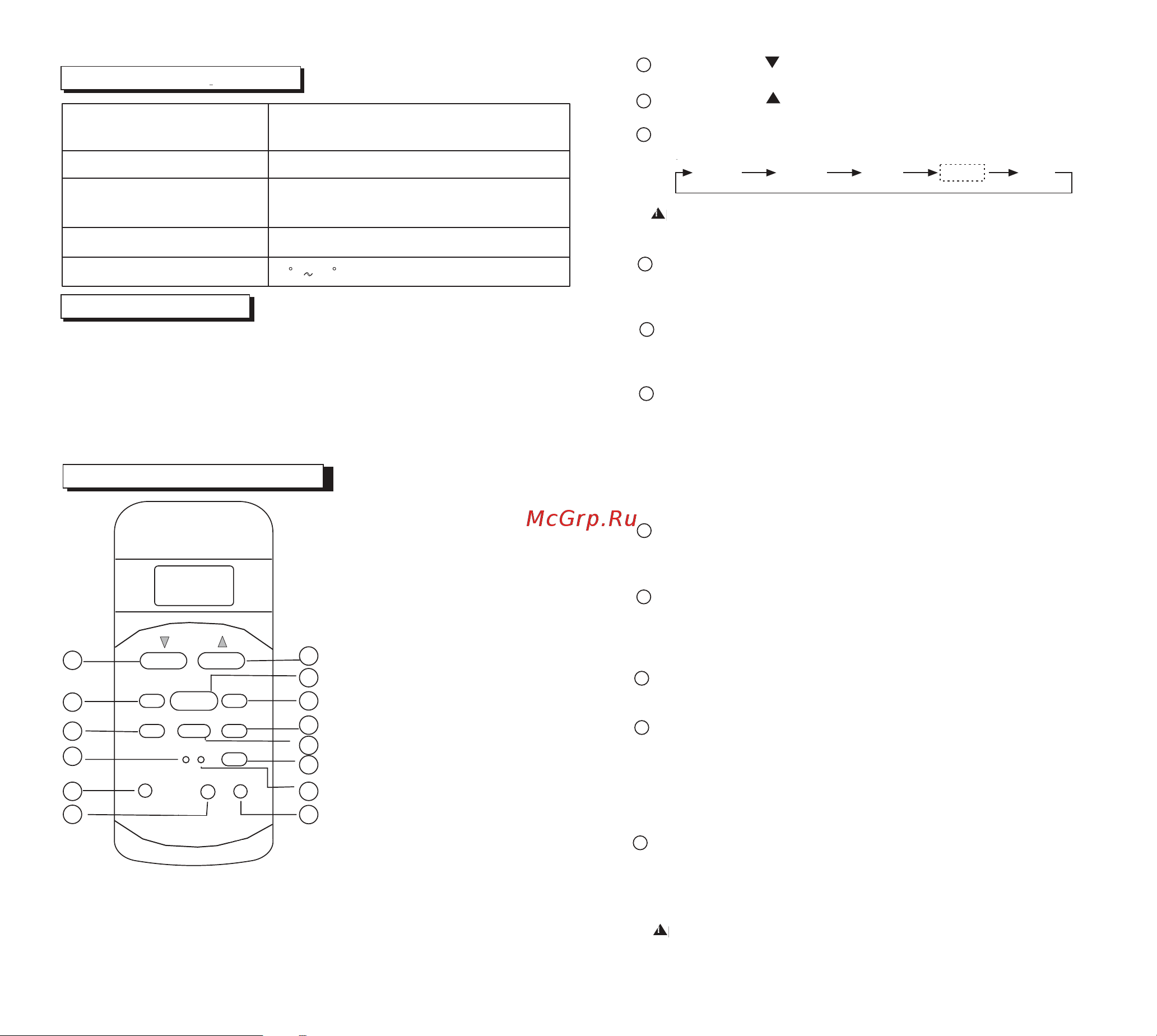

Remote Controller Specification
Performance Features
Features of the Remote controller buttons
1. Operating Mode: AUTO COOL DRY
HEAT(Cooling only model without) and FAN .
2. Timer Setting Function in 24 hours.
3. Indoor Setting Temperature Range : 17 C~30 C.
4. Full function of LCD (Liquid Crystal Display)
5. Back light emitting(only available for R51M/BG(C)E models)
Fig. 1
( C)
TEMP
AUTO
COOL
DRY
HEAT
FAN
HIGH
MED
LOW
MODE
FAN SPEED
TIMER ON
SLEEP
ON/OFF
TIMER OFF
AIR
DIRECTION
RESET LOCK
1
2
4
5
6
7
3
8
9
10
11
12
13
14
Environment
SET TEMPERATURE
SWING
LED
DISPLAY
TURBO
SWING Button: Push this switch button to activate auto
swing feature of the horizontal louver. Push it again to stop.
LED DISPLAY Button: Press this button to clear the digit
display in the air conditioner, press it again to activate it (Not
available for the units without LED display window).
7
*
*
*
*
*
*
*
*
NOTE:
: Indicates optional
button.
M odels RG51M2/(C)E:
without 14 and 15
buttons.
Models RG51M3/(C)E:
without 7 , 14 and
15 buttons.
Models R51M/(C)E
and R51M/BG(C)E:
without 15 button.
CLEAN
AIR
15
*
*
TEMP Button : Push this button to decrease the indoor
temperature setting.
RESET Button: When you press the recessed RESET button,
all current settings are cancelled and the control will return to
the initial settings.
SLEEP Button: Press this button to go into the Energy-Saving
operation mode. Press it again to cancel. This function is only
can be used on COOL, HEAT and AUTO mode and maintain the
most comfortable temperature for you.
2
NOTE: COOL only model has no HEAT feature.
!
1
6
ON/OFF Button: Push this button to start operation, push the
button again to stop operation.
9
TEMP Button : Push this button to increase the indoor
temperature setting .
2
AIR DIRECTION Button: Press this button to change the swing
angle of the louver. The swing angle of the louver is 6 for
each press. When the louver swing at a certain angle which
would affect the cooling and heating effect of the air conditioner,
it would automatically change the swing direction . No symbol
will appear in the display area when press this button. (Not
applicable to units without this function).
o
MODE Selection Button: Each time the button is pressed, the
operation mode is shifted in the direction of the arrow:
AUTO
COOL
DRY
HEAT
FAN
3
FAN SPEED Button: Used to select the Fan Speed in four steps-
AUTO LOW MED or HIGH. Each time the button is pressed,
the fan speed mode is shifted.
8
TIMER ON Button: Press this button to initiate the auto-on time
sequence. Each press will increase the auto-timed setting in 30
minutes increments. When the setting time displays 10:00, each
press will increase the auto-timed setting 60 minutes increments.
To cancel the auto-timed program, simply adjust the auto-on time
to 0:00.
10
11
4
5
NOTE: While the unit is running under SLEEP operation
mode, it would be canceled if you press the other button.
!
1
Model
Transmission Distance
Lowest Voltage of CPU
Emitting Signal
Rated Voltage
R51M/(C)E, R51M/BG(C)E, RG51M2/(C)E,
RG51A/(C)E, RG51M3/(C)E.
-5 C 60 C
8m (when using 3.0 voltage,
it Gets 11m)
3.0V(Alkaline dry batteries LR03 2)
2.0V
~
Remote Controller Specification
Performance Features
Features of the Remote controller buttons
1. Operating Mode: AUTO COOL DRY
HEAT(Cooling only model without) and FAN .
2. Timer Setting Function in 24 hours.
3. Indoor Setting Temperature Range : 17 C~30 C.
4. Full function of LCD (Liquid Crystal Display)
5. Back light emitting(only available for R51M/BG(C)E models)
Fig. 1
( C)
TEMP
AUTO
COOL
DRY
HEAT
FAN
HIGH
MED
LOW
MODE
FAN SPEED
TIMER ON
SLEEP
ON/OFF
TIMER OFF
AIR
DIRECTION
RESET LOCK
1
2
4
5
6
7
3
8
9
10
11
12
13
14
Environment
SET TEMPERATURE
SWING
LED
DISPLAY
TURBO
SWING Button: Push this switch button to activate auto
swing feature of the horizontal louver. Push it again to stop.
LED DISPLAY Button: Press this button to clear the digit
display in the air conditioner, press it again to activate it (Not
available for the units without LED display window).
7
*
*
*
*
*
*
*
*
NOTE:
: Indicates optional
button.
M odels RG51M2/(C)E:
without 14 and 15
buttons.
Models RG51M3/(C)E:
without 7 , 14 and
15 buttons.
Models R51M/(C)E
and R51M/BG(C)E:
without 15 button.
CLEAN
AIR
15
*
*
TEMP Button : Push this button to decrease the indoor
temperature setting.
RESET Button: When you press the recessed RESET button,
all current settings are cancelled and the control will return to
the initial settings.
SLEEP Button: Press this button to go into the Energy-Saving
operation mode. Press it again to cancel. This function is only
can be used on COOL, HEAT and AUTO mode and maintain the
most comfortable temperature for you.
2
NOTE: COOL only model has no HEAT feature.
!
1
6
ON/OFF Button: Push this button to start operation, push the
button again to stop operation.
9
TEMP Button : Push this button to increase the indoor
temperature setting .
2
AIR DIRECTION Button: Press this button to change the swing
angle of the louver. The swing angle of the louver is 6 for
each press. When the louver swing at a certain angle which
would affect the cooling and heating effect of the air conditioner,
it would automatically change the swing direction . No symbol
will appear in the display area when press this button. (Not
applicable to units without this function).
o
MODE Selection Button: Each time the button is pressed, the
operation mode is shifted in the direction of the arrow:
AUTO
COOL
DRY
HEAT
FAN
3
FAN SPEED Button: Used to select the Fan Speed in four steps-
AUTO LOW MED or HIGH. Each time the button is pressed,
the fan speed mode is shifted.
8
TIMER ON Button: Press this button to initiate the auto-on time
sequence. Each press will increase the auto-timed setting in 30
minutes increments. When the setting time displays 10:00, each
press will increase the auto-timed setting 60 minutes increments.
To cancel the auto-timed program, simply adjust the auto-on time
to 0:00.
10
11
4
5
NOTE: While the unit is running under SLEEP operation
mode, it would be canceled if you press the other button.
!
1
Model
Transmission Distance
Lowest Voltage of CPU
Emitting Signal
Rated Voltage
R51M/(C)E, R51M/BG(C)E, RG51M2/(C)E,
RG51A/(C)E, RG51M3/(C)E.
-5 C 60 C
8m (when using 3.0 voltage,
it Gets 11m)
3.0V(Alkaline dry batteries LR03 2)
2.0V
~
Remote Controller Specification
Performance Features
Features of the Remote controller buttons
1. Operating Mode: AUTO COOL DRY
HEAT(Cooling only model without) and FAN .
2. Timer Setting Function in 24 hours.
3. Indoor Setting Temperature Range : 17 C~30 C.
4. Full function of LCD (Liquid Crystal Display)
5. Back light emitting(only available for R51M/BG(C)E models)
Fig. 1
( C)
TEMP
AUTO
COOL
DRY
HEAT
FAN
HIGH
MED
LOW
MODE
FAN SPEED
TIMER ON
SLEEP
ON/OFF
TIMER OFF
AIR
DIRECTION
RESET LOCK
1
2
4
5
6
7
3
8
9
10
11
12
13
14
Environment
SET TEMPERATURE
SWING
LED
DISPLAY
TURBO
SWING Button: Push this switch button to activate auto
swing feature of the horizontal louver. Push it again to stop.
LED DISPLAY Button: Press this button to clear the digit
display in the air conditioner, press it again to activate it (Not
available for the units without LED display window).
7
*
*
*
*
*
*
*
*
NOTE:
: Indicates optional
button.
M odels RG51M2/(C)E:
without 14 and 15
buttons.
Models RG51M3/(C)E:
without 7 , 14 and
15 buttons.
Models R51M/(C)E
and R51M/BG(C)E:
without 15 button.
CLEAN
AIR
15
*
*
Технические характеристики ДУ
Номинальное напряжение
Минимальное напряжение
ЦПУ при генерировании
сигнала
Расстояние передачи
Температура
Модель
R51M/(C)E, R51M/BG(C)E, RG51M2/(C)E,
RG51A/(C)E, RG51M3/(C)E.
3,0 В (сухие щелочные батареи LR03 2)
2,0 В
8 м (при напряжении 3,0 В – 11 м)
TEMP Button : Push this button to decrease the indoor
temperature setting.
RESET Button: When you press the recessed RESET button,
all current settings are cancelled and the control will return to
the initial settings.
SLEEP Button: Press this button to go into the Energy-Saving
operation mode. Press it again to cancel. This function is only
can be used on COOL, HEAT and AUTO mode and maintain the
most comfortable temperature for you.
2
NOTE: COOL only model has no HEAT feature.
!
1
6
ON/OFF Button: Push this button to start operation, push the
button again to stop operation.
9
TEMP Button : Push this button to increase the indoor
temperature setting .
2
AIR DIRECTION Button: Press this button to change the swing
angle of the louver. The swing angle of the louver is 6 for
each press. When the louver swing at a certain angle which
would affect the cooling and heating effect of the air conditioner,
it would automatically change the swing direction . No symbol
will appear in the display area when press this button. (Not
applicable to units without this function).
o
MODE Selection Button: Each time the button is pressed, the
operation mode is shifted in the direction of the arrow:
AUTO
COOL
DRY
HEAT
FAN
3
FAN SPEED Button: Used to select the Fan Speed in four steps-
AUTO LOW MED or HIGH. Each time the button is pressed,
the fan speed mode is shifted.
8
TIMER ON Button: Press this button to initiate the auto-on time
sequence. Each press will increase the auto-timed setting in 30
minutes increments. When the setting time displays 10:00, each
press will increase the auto-timed setting 60 minutes increments.
To cancel the auto-timed program, simply adjust the auto-on time
to 0:00.
10
11
4
5
NOTE: While the unit is running under SLEEP operation
mode, it would be canceled if you press the other button.
!
1
Model
Transmission Distance
Lowest Voltage of CPU
Emitting Signal
Rated Voltage
R51M/(C)E, R51M/BG(C)E, RG51M2/(C)E,
RG51A/(C)E, RG51M3/(C)E.
-5 C 60 C
8m (when using 3.0 voltage,
it Gets 11m)
3.0V(Alkaline dry batteries LR03 2)
2.0V
~
Remote Controller Specification
Performance Features
Features of the Remote controller buttons
1. Operating Mode: AUTO COOL DRY
HEAT(Cooling only model without) and FAN .
2. Timer Setting Function in 24 hours.
3. Indoor Setting Temperature Range : 17 C~30 C.
4. Full function of LCD (Liquid Crystal Display)
5. Back light emitting(only available for R51M/BG(C)E models)
Fig. 1
( C)
TEMP
AUTO
COOL
DRY
HEAT
FAN
HIGH
MED
LOW
MODE
FAN SPEED
TIMER ON
SLEEP
ON/OFF
TIMER OFF
AIR
DIRECTION
RESET LOCK
1
2
4
5
6
7
3
8
9
10
11
12
13
14
Environment
SET TEMPERATURE
SWING
LED
DISPLAY
TURBO
SWING Button: Push this switch button to activate auto
swing feature of the horizontal louver. Push it again to stop.
LED DISPLAY Button: Press this button to clear the digit
display in the air conditioner, press it again to activate it (Not
available for the units without LED display window).
7
*
*
*
*
*
*
*
*
NOTE:
: Indicates optional
button.
M odels RG51M2/(C)E:
without 14 and 15
buttons.
Models RG51M3/(C)E:
without 7 , 14 and
15 buttons.
Models R51M/(C)E
and R51M/BG(C)E:
without 15 button.
CLEAN
AIR
15
*
*
Функции ДУ
1. Режим работы: AUTO, COOL (охлаждение),
DRY (осушение), HEAT (отопление; нет в моделях, где только
охлаждение) и FAN (вентиляция).
2. Настройка таймера на 24 часа.
3. Поддержание температуры в помещении от 17 ºC до 30 ºC.
4. Полнофункциональный жидкокристаллический экран.
5. Подсветка экрана (только у моделей R51M/BG(C)E).
Кнопки пульта ДУ
Рис. 1
TEMP Button : Push this button to decrease the indoor
temperature setting.
RESET Button: When you press the recessed RESET button,
all current settings are cancelled and the control will return to
the initial settings.
SLEEP Button: Press this button to go into the Energy-Saving
operation mode. Press it again to cancel. This function is only
can be used on COOL, HEAT and AUTO mode and maintain the
most comfortable temperature for you.
2
NOTE: COOL only model has no HEAT feature.
!
1
6
ON/OFF Button: Push this button to start operation, push the
button again to stop operation.
9
TEMP Button : Push this button to increase the indoor
temperature setting .
2
AIR DIRECTION Button: Press this button to change the swing
angle of the louver. The swing angle of the louver is 6 for
each press. When the louver swing at a certain angle which
would affect the cooling and heating effect of the air conditioner,
it would automatically change the swing direction . No symbol
will appear in the display area when press this button. (Not
applicable to units without this function).
o
MODE Selection Button: Each time the button is pressed, the
operation mode is shifted in the direction of the arrow:
AUTO
COOL
DRY
HEAT
FAN
3
FAN SPEED Button: Used to select the Fan Speed in four steps-
AUTO LOW MED or HIGH. Each time the button is pressed,
the fan speed mode is shifted.
8
TIMER ON Button: Press this button to initiate the auto-on time
sequence. Each press will increase the auto-timed setting in 30
minutes increments. When the setting time displays 10:00, each
press will increase the auto-timed setting 60 minutes increments.
To cancel the auto-timed program, simply adjust the auto-on time
to 0:00.
10
11
4
5
NOTE: While the unit is running under SLEEP operation
mode, it would be canceled if you press the other button.
!
1
Model
Transmission Distance
Lowest Voltage of CPU
Emitting Signal
Rated Voltage
R51M/(C)E, R51M/BG(C)E, RG51M2/(C)E,
RG51A/(C)E, RG51M3/(C)E.
-5 C 60 C
8m (when using 3.0 voltage,
it Gets 11m)
3.0V(Alkaline dry batteries LR03 2)
2.0V
~
Remote Controller Specification
Performance Features
Features of the Remote controller buttons
1. Operating Mode: AUTO COOL DRY
HEAT(Cooling only model without) and FAN .
2. Timer Setting Function in 24 hours.
3. Indoor Setting Temperature Range : 17 C~30 C.
4. Full function of LCD (Liquid Crystal Display)
5. Back light emitting(only available for R51M/BG(C)E models)
Fig. 1
( C)
TEMP
AUTO
COOL
DRY
HEAT
FAN
HIGH
MED
LOW
MODE
FAN SPEED
TIMER ON
SLEEP
ON/OFF
TIMER OFF
AIR
DIRECTION
RESET LOCK
1
2
4
5
6
7
3
8
9
10
11
12
13
14
Environment
SET TEMPERATURE
SWING
LED
DISPLAY
TURBO
SWING Button: Push this switch button to activate auto
swing feature of the horizontal louver. Push it again to stop.
LED DISPLAY Button: Press this button to clear the digit
display in the air conditioner, press it again to activate it (Not
available for the units without LED display window).
7
*
*
*
*
*
*
*
*
NOTE:
: Indicates optional
button.
M odels RG51M2/(C)E:
without 14 and 15
buttons.
Models RG51M3/(C)E:
without 7 , 14 and
15 buttons.
Models R51M/(C)E
and R51M/BG(C)E:
without 15 button.
CLEAN
AIR
15
*
*
Кнопка TEMP Эта кнопка снижает установленную для
помещения температуру.
Кнопка TEMP : Эта кнопка повышает установленную для
помещения температуру.
Кнопка выбора режима MODE При каждом нажатии этой
кнопки режим работы переключается по направлению стрелки:
ПРИМЕЧАНИЕ: У моделей, которые только охлаждают воздух,
нет режима HEAT.
Кнопка SWING: Эта кнопка включает режим автоматического
движения горизонтальных жалюзи. Повторное нажатие кнопки
выключает движение.
Кнопка RESET: При нажатии кнопки RESET происходит сброс
всех текущих настроек и восстанавливаются первоначальные
настройки системы.
Кнопка AIR DIRECTION: Эта кнопка изменяет угол наклона
жалюзи. С каждым нажатием кнопки угол наклона изменяется
на 6º. Если угол изменится настолько, что положение жалюзи
будет уменьшать охлаждающее или нагревающее действие
кондиционера, то направление движения жалюзи изменится.
При нажатии этой кнопки на экране не появляются символы. (Не
применяется на системах, у которых нет такой функции.)
Кнопка LED DISPLAY: Выключает цифровой экран кондиционера;
повторное нажатие снова включает экран. (Не применяется на
системах, у которых нет жидкокристаллического экрана.)
Кнопка FAN SPEED: Переключает частоту вращения вентилятора
последовательно между четырьмя ступенями скорости: AUTO,
LOW, MED и HIGH. Скорость переключается при каждом нажатии
кнопки.
Кнопка ON/OFF: Нажмите кнопку, чтобы включить систему.
Повторное нажатие выключает систему.
Кнопка TIMER ON: Эта кнопка включает режим автоматического
включения по таймеру. С каждым нажатием кнопки настройка
таймера увеличивается на 30 минут. Когда настраиваемое время
дойдет до 10:00, с каждым нажатием кнопки настройка таймера
будет увеличиваться на 60 минут. Чтобы отменить включение по
таймеру, установите время включения на 0:00.
Кнопка SLEEP: Кнопка переключения в экономичный режим
работы. Повторное нажатие кнопки выключает экономичный
режим. Эта функция используется только в режимах COOL,
HEAT и AUTO для поддержания наиболее комфортной для вас
температуры.
ПРИМЕЧАНИЕ: Когда система работает в экономичном
режиме, нажатие любой другой кнопки выводит ее из этого
режима.
TEMP Button : Push this button to decrease the indoor
temperature setting.
RESET Button: When you press the recessed RESET button,
all current settings are cancelled and the control will return to
the initial settings.
SLEEP Button: Press this button to go into the Energy-Saving
operation mode. Press it again to cancel. This function is only
can be used on COOL, HEAT and AUTO mode and maintain the
most comfortable temperature for you.
2
NOTE: COOL only model has no HEAT feature.
!
1
6
ON/OFF Button: Push this button to start operation, push the
button again to stop operation.
9
TEMP Button : Push this button to increase the indoor
temperature setting .
2
AIR DIRECTION Button: Press this button to change the swing
angle of the louver. The swing angle of the louver is 6 for
each press. When the louver swing at a certain angle which
would affect the cooling and heating effect of the air conditioner,
it would automatically change the swing direction . No symbol
will appear in the display area when press this button. (Not
applicable to units without this function).
o
MODE Selection Button: Each time the button is pressed, the
operation mode is shifted in the direction of the arrow:
AUTO
COOL
DRY
HEAT
FAN
3
FAN SPEED Button: Used to select the Fan Speed in four steps-
AUTO LOW MED or HIGH. Each time the button is pressed,
the fan speed mode is shifted.
8
TIMER ON Button: Press this button to initiate the auto-on time
sequence. Each press will increase the auto-timed setting in 30
minutes increments. When the setting time displays 10:00, each
press will increase the auto-timed setting 60 minutes increments.
To cancel the auto-timed program, simply adjust the auto-on time
to 0:00.
10
11
4
5
NOTE: While the unit is running under SLEEP operation
mode, it would be canceled if you press the other button.
!
1
Model
Transmission Distance
Lowest Voltage of CPU
Emitting Signal
Rated Voltage
R51M/(C)E, R51M/BG(C)E, RG51M2/(C)E,
RG51A/(C)E, RG51M3/(C)E.
-5 C 60 C
8m (when using 3.0 voltage,
it Gets 11m)
3.0V(Alkaline dry batteries LR03 2)
2.0V
~
Remote Controller Specification
Performance Features
Features of the Remote controller buttons
1. Operating Mode: AUTO COOL DRY
HEAT(Cooling only model without) and FAN .
2. Timer Setting Function in 24 hours.
3. Indoor Setting Temperature Range : 17 C~30 C.
4. Full function of LCD (Liquid Crystal Display)
5. Back light emitting(only available for R51M/BG(C)E models)
Fig. 1
( C)
TEMP
AUTO
COOL
DRY
HEAT
FAN
HIGH
MED
LOW
MODE
FAN SPEED
TIMER ON
SLEEP
ON/OFF
TIMER OFF
AIR
DIRECTION
RESET LOCK
1
2
4
5
6
7
3
8
9
10
11
12
13
14
Environment
SET TEMPERATURE
SWING
LED
DISPLAY
TURBO
SWING Button: Push this switch button to activate auto
swing feature of the horizontal louver. Push it again to stop.
LED DISPLAY Button: Press this button to clear the digit
display in the air conditioner, press it again to activate it (Not
available for the units without LED display window).
7
*
*
*
*
*
*
*
*
NOTE:
: Indicates optional
button.
M odels RG51M2/(C)E:
without 14 and 15
buttons.
Models RG51M3/(C)E:
without 7 , 14 and
15 buttons.
Models R51M/(C)E
and R51M/BG(C)E:
without 15 button.
CLEAN
AIR
15
*
*
TEMP Button : Push this button to decrease the indoor
temperature setting.
RESET Button: When you press the recessed RESET button,
all current settings are cancelled and the control will return to
the initial settings.
SLEEP Button: Press this button to go into the Energy-Saving
operation mode. Press it again to cancel. This function is only
can be used on COOL, HEAT and AUTO mode and maintain the
most comfortable temperature for you.
2
NOTE: COOL only model has no HEAT feature.
!
1
6
ON/OFF Button: Push this button to start operation, push the
button again to stop operation.
9
TEMP Button : Push this button to increase the indoor
temperature setting .
2
AIR DIRECTION Button: Press this button to change the swing
angle of the louver. The swing angle of the louver is 6 for
each press. When the louver swing at a certain angle which
would affect the cooling and heating effect of the air conditioner,
it would automatically change the swing direction . No symbol
will appear in the display area when press this button. (Not
applicable to units without this function).
o
MODE Selection Button: Each time the button is pressed, the
operation mode is shifted in the direction of the arrow:
AUTO
COOL
DRY
HEAT
FAN
3
FAN SPEED Button: Used to select the Fan Speed in four steps-
AUTO LOW MED or HIGH. Each time the button is pressed,
the fan speed mode is shifted.
8
TIMER ON Button: Press this button to initiate the auto-on time
sequence. Each press will increase the auto-timed setting in 30
minutes increments. When the setting time displays 10:00, each
press will increase the auto-timed setting 60 minutes increments.
To cancel the auto-timed program, simply adjust the auto-on time
to 0:00.
10
11
4
5
NOTE: While the unit is running under SLEEP operation
mode, it would be canceled if you press the other button.
!
1
Model
Transmission Distance
Lowest Voltage of CPU
Emitting Signal
Rated Voltage
R51M/(C)E, R51M/BG(C)E, RG51M2/(C)E,
RG51A/(C)E, RG51M3/(C)E.
-5 C 60 C
8m (when using 3.0 voltage,
it Gets 11m)
3.0V(Alkaline dry batteries LR03 2)
2.0V
~
Remote Controller Specification
Performance Features
Features of the Remote controller buttons
1. Operating Mode: AUTO COOL DRY
HEAT(Cooling only model without) and FAN .
2. Timer Setting Function in 24 hours.
3. Indoor Setting Temperature Range : 17 C~30 C.
4. Full function of LCD (Liquid Crystal Display)
5. Back light emitting(only available for R51M/BG(C)E models)
Fig. 1
( C)
TEMP
AUTO
COOL
DRY
HEAT
FAN
HIGH
MED
LOW
MODE
FAN SPEED
TIMER ON
SLEEP
ON/OFF
TIMER OFF
AIR
DIRECTION
RESET LOCK
1
2
4
5
6
7
3
8
9
10
11
12
13
14
Environment
SET TEMPERATURE
SWING
LED
DISPLAY
TURBO
SWING Button: Push this switch button to activate auto
swing feature of the horizontal louver. Push it again to stop.
LED DISPLAY Button: Press this button to clear the digit
display in the air conditioner, press it again to activate it (Not
available for the units without LED display window).
7
*
*
*
*
*
*
*
*
NOTE:
: Indicates optional
button.
M odels RG51M2/(C)E:
without 14 and 15
buttons.
Models RG51M3/(C)E:
without 7 , 14 and
15 buttons.
Models R51M/(C)E
and R51M/BG(C)E:
without 15 button.
CLEAN
AIR
15
*
*
TEMP Button : Push this button to decrease the indoor
temperature setting.
RESET Button: When you press the recessed RESET button,
all current settings are cancelled and the control will return to
the initial settings.
SLEEP Button: Press this button to go into the Energy-Saving
operation mode. Press it again to cancel. This function is only
can be used on COOL, HEAT and AUTO mode and maintain the
most comfortable temperature for you.
2
NOTE: COOL only model has no HEAT feature.
!
1
6
ON/OFF Button: Push this button to start operation, push the
button again to stop operation.
9
TEMP Button : Push this button to increase the indoor
temperature setting .
2
AIR DIRECTION Button: Press this button to change the swing
angle of the louver. The swing angle of the louver is 6 for
each press. When the louver swing at a certain angle which
would affect the cooling and heating effect of the air conditioner,
it would automatically change the swing direction . No symbol
will appear in the display area when press this button. (Not
applicable to units without this function).
o
MODE Selection Button: Each time the button is pressed, the
operation mode is shifted in the direction of the arrow:
AUTO
COOL
DRY
HEAT
FAN
3
FAN SPEED Button: Used to select the Fan Speed in four steps-
AUTO LOW MED or HIGH. Each time the button is pressed,
the fan speed mode is shifted.
8
TIMER ON Button: Press this button to initiate the auto-on time
sequence. Each press will increase the auto-timed setting in 30
minutes increments. When the setting time displays 10:00, each
press will increase the auto-timed setting 60 minutes increments.
To cancel the auto-timed program, simply adjust the auto-on time
to 0:00.
10
11
4
5
NOTE: While the unit is running under SLEEP operation
mode, it would be canceled if you press the other button.
!
1
Model
Transmission Distance
Lowest Voltage of CPU
Emitting Signal
Rated Voltage
R51M/(C)E, R51M/BG(C)E, RG51M2/(C)E,
RG51A/(C)E, RG51M3/(C)E.
-5 C 60 C
8m (when using 3.0 voltage,
it Gets 11m)
3.0V(Alkaline dry batteries LR03 2)
2.0V
~
Remote Controller Specification
Performance Features
Features of the Remote controller buttons
1. Operating Mode: AUTO COOL DRY
HEAT(Cooling only model without) and FAN .
2. Timer Setting Function in 24 hours.
3. Indoor Setting Temperature Range : 17 C~30 C.
4. Full function of LCD (Liquid Crystal Display)
5. Back light emitting(only available for R51M/BG(C)E models)
Fig. 1
( C)
TEMP
AUTO
COOL
DRY
HEAT
FAN
HIGH
MED
LOW
MODE
FAN SPEED
TIMER ON
SLEEP
ON/OFF
TIMER OFF
AIR
DIRECTION
RESET LOCK
1
2
4
5
6
7
3
8
9
10
11
12
13
14
Environment
SET TEMPERATURE
SWING
LED
DISPLAY
TURBO
SWING Button: Push this switch button to activate auto
swing feature of the horizontal louver. Push it again to stop.
LED DISPLAY Button: Press this button to clear the digit
display in the air conditioner, press it again to activate it (Not
available for the units without LED display window).
7
*
*
*
*
*
*
*
*
NOTE:
: Indicates optional
button.
M odels RG51M2/(C)E:
without 14 and 15
buttons.
Models RG51M3/(C)E:
without 7 , 14 and
15 buttons.
Models R51M/(C)E
and R51M/BG(C)E:
without 15 button.
CLEAN
AIR
15
*
*
TEMP Button : Push this button to decrease the indoor
temperature setting.
RESET Button: When you press the recessed RESET button,
all current settings are cancelled and the control will return to
the initial settings.
SLEEP Button: Press this button to go into the Energy-Saving
operation mode. Press it again to cancel. This function is only
can be used on COOL, HEAT and AUTO mode and maintain the
most comfortable temperature for you.
2
NOTE: COOL only model has no HEAT feature.
!
1
6
ON/OFF Button: Push this button to start operation, push the
button again to stop operation.
9
TEMP Button : Push this button to increase the indoor
temperature setting .
2
AIR DIRECTION Button: Press this button to change the swing
angle of the louver. The swing angle of the louver is 6 for
each press. When the louver swing at a certain angle which
would affect the cooling and heating effect of the air conditioner,
it would automatically change the swing direction . No symbol
will appear in the display area when press this button. (Not
applicable to units without this function).
o
MODE Selection Button: Each time the button is pressed, the
operation mode is shifted in the direction of the arrow:
AUTO
COOL
DRY
HEAT
FAN
3
FAN SPEED Button: Used to select the Fan Speed in four steps-
AUTO LOW MED or HIGH. Each time the button is pressed,
the fan speed mode is shifted.
8
TIMER ON Button: Press this button to initiate the auto-on time
sequence. Each press will increase the auto-timed setting in 30
minutes increments. When the setting time displays 10:00, each
press will increase the auto-timed setting 60 minutes increments.
To cancel the auto-timed program, simply adjust the auto-on time
to 0:00.
10
11
4
5
NOTE: While the unit is running under SLEEP operation
mode, it would be canceled if you press the other button.
!
1
Model
Transmission Distance
Lowest Voltage of CPU
Emitting Signal
Rated Voltage
R51M/(C)E, R51M/BG(C)E, RG51M2/(C)E,
RG51A/(C)E, RG51M3/(C)E.
-5 C 60 C
8m (when using 3.0 voltage,
it Gets 11m)
3.0V(Alkaline dry batteries LR03 2)
2.0V
~
Remote Controller Specification
Performance Features
Features of the Remote controller buttons
1. Operating Mode: AUTO COOL DRY
HEAT(Cooling only model without) and FAN .
2. Timer Setting Function in 24 hours.
3. Indoor Setting Temperature Range : 17 C~30 C.
4. Full function of LCD (Liquid Crystal Display)
5. Back light emitting(only available for R51M/BG(C)E models)
Fig. 1
( C)
TEMP
AUTO
COOL
DRY
HEAT
FAN
HIGH
MED
LOW
MODE
FAN SPEED
TIMER ON
SLEEP
ON/OFF
TIMER OFF
AIR
DIRECTION
RESET LOCK
1
2
4
5
6
7
3
8
9
10
11
12
13
14
Environment
SET TEMPERATURE
SWING
LED
DISPLAY
TURBO
SWING Button: Push this switch button to activate auto
swing feature of the horizontal louver. Push it again to stop.
LED DISPLAY Button: Press this button to clear the digit
display in the air conditioner, press it again to activate it (Not
available for the units without LED display window).
7
*
*
*
*
*
*
*
*
NOTE:
: Indicates optional
button.
M odels RG51M2/(C)E:
without 14 and 15
buttons.
Models RG51M3/(C)E:
without 7 , 14 and
15 buttons.
Models R51M/(C)E
and R51M/BG(C)E:
without 15 button.
CLEAN
AIR
15
*
*
TEMP Button : Push this button to decrease the indoor
temperature setting.
RESET Button: When you press the recessed RESET button,
all current settings are cancelled and the control will return to
the initial settings.
SLEEP Button: Press this button to go into the Energy-Saving
operation mode. Press it again to cancel. This function is only
can be used on COOL, HEAT and AUTO mode and maintain the
most comfortable temperature for you.
2
NOTE: COOL only model has no HEAT feature.
!
1
6
ON/OFF Button: Push this button to start operation, push the
button again to stop operation.
9
TEMP Button : Push this button to increase the indoor
temperature setting .
2
AIR DIRECTION Button: Press this button to change the swing
angle of the louver. The swing angle of the louver is 6 for
each press. When the louver swing at a certain angle which
would affect the cooling and heating effect of the air conditioner,
it would automatically change the swing direction . No symbol
will appear in the display area when press this button. (Not
applicable to units without this function).
o
MODE Selection Button: Each time the button is pressed, the
operation mode is shifted in the direction of the arrow:
AUTO
COOL
DRY
HEAT
FAN
3
FAN SPEED Button: Used to select the Fan Speed in four steps-
AUTO LOW MED or HIGH. Each time the button is pressed,
the fan speed mode is shifted.
8
TIMER ON Button: Press this button to initiate the auto-on time
sequence. Each press will increase the auto-timed setting in 30
minutes increments. When the setting time displays 10:00, each
press will increase the auto-timed setting 60 minutes increments.
To cancel the auto-timed program, simply adjust the auto-on time
to 0:00.
10
11
4
5
NOTE: While the unit is running under SLEEP operation
mode, it would be canceled if you press the other button.
!
1
Model
Transmission Distance
Lowest Voltage of CPU
Emitting Signal
Rated Voltage
R51M/(C)E, R51M/BG(C)E, RG51M2/(C)E,
RG51A/(C)E, RG51M3/(C)E.
-5 C 60 C
8m (when using 3.0 voltage,
it Gets 11m)
3.0V(Alkaline dry batteries LR03 2)
2.0V
~
Remote Controller Specification
Performance Features
Features of the Remote controller buttons
1. Operating Mode: AUTO COOL DRY
HEAT(Cooling only model without) and FAN .
2. Timer Setting Function in 24 hours.
3. Indoor Setting Temperature Range : 17 C~30 C.
4. Full function of LCD (Liquid Crystal Display)
5. Back light emitting(only available for R51M/BG(C)E models)
Fig. 1
( C)
TEMP
AUTO
COOL
DRY
HEAT
FAN
HIGH
MED
LOW
MODE
FAN SPEED
TIMER ON
SLEEP
ON/OFF
TIMER OFF
AIR
DIRECTION
RESET LOCK
1
2
4
5
6
7
3
8
9
10
11
12
13
14
Environment
SET TEMPERATURE
SWING
LED
DISPLAY
TURBO
SWING Button: Push this switch button to activate auto
swing feature of the horizontal louver. Push it again to stop.
LED DISPLAY Button: Press this button to clear the digit
display in the air conditioner, press it again to activate it (Not
available for the units without LED display window).
7
*
*
*
*
*
*
*
*
NOTE:
: Indicates optional
button.
M odels RG51M2/(C)E:
without 14 and 15
buttons.
Models RG51M3/(C)E:
without 7 , 14 and
15 buttons.
Models R51M/(C)E
and R51M/BG(C)E:
without 15 button.
CLEAN
AIR
15
*
*
TEMP Button : Push this button to decrease the indoor
temperature setting.
RESET Button: When you press the recessed RESET button,
all current settings are cancelled and the control will return to
the initial settings.
SLEEP Button: Press this button to go into the Energy-Saving
operation mode. Press it again to cancel. This function is only
can be used on COOL, HEAT and AUTO mode and maintain the
most comfortable temperature for you.
2
NOTE: COOL only model has no HEAT feature.
!
1
6
ON/OFF Button: Push this button to start operation, push the
button again to stop operation.
9
TEMP Button : Push this button to increase the indoor
temperature setting .
2
AIR DIRECTION Button: Press this button to change the swing
angle of the louver. The swing angle of the louver is 6 for
each press. When the louver swing at a certain angle which
would affect the cooling and heating effect of the air conditioner,
it would automatically change the swing direction . No symbol
will appear in the display area when press this button. (Not
applicable to units without this function).
o
MODE Selection Button: Each time the button is pressed, the
operation mode is shifted in the direction of the arrow:
AUTO
COOL
DRY
HEAT
FAN
3
FAN SPEED Button: Used to select the Fan Speed in four steps-
AUTO LOW MED or HIGH. Each time the button is pressed,
the fan speed mode is shifted.
8
TIMER ON Button: Press this button to initiate the auto-on time
sequence. Each press will increase the auto-timed setting in 30
minutes increments. When the setting time displays 10:00, each
press will increase the auto-timed setting 60 minutes increments.
To cancel the auto-timed program, simply adjust the auto-on time
to 0:00.
10
11
4
5
NOTE: While the unit is running under SLEEP operation
mode, it would be canceled if you press the other button.
!
1
Model
Transmission Distance
Lowest Voltage of CPU
Emitting Signal
Rated Voltage
R51M/(C)E, R51M/BG(C)E, RG51M2/(C)E,
RG51A/(C)E, RG51M3/(C)E.
-5 C 60 C
8m (when using 3.0 voltage,
it Gets 11m)
3.0V(Alkaline dry batteries LR03 2)
2.0V
~
Remote Controller Specification
Performance Features
Features of the Remote controller buttons
1. Operating Mode: AUTO COOL DRY
HEAT(Cooling only model without) and FAN .
2. Timer Setting Function in 24 hours.
3. Indoor Setting Temperature Range : 17 C~30 C.
4. Full function of LCD (Liquid Crystal Display)
5. Back light emitting(only available for R51M/BG(C)E models)
Fig. 1
( C)
TEMP
AUTO
COOL
DRY
HEAT
FAN
HIGH
MED
LOW
MODE
FAN SPEED
TIMER ON
SLEEP
ON/OFF
TIMER OFF
AIR
DIRECTION
RESET LOCK
1
2
4
5
6
7
3
8
9
10
11
12
13
14
Environment
SET TEMPERATURE
SWING
LED
DISPLAY
TURBO
SWING Button: Push this switch button to activate auto
swing feature of the horizontal louver. Push it again to stop.
LED DISPLAY Button: Press this button to clear the digit
display in the air conditioner, press it again to activate it (Not
available for the units without LED display window).
7
*
*
*
*
*
*
*
*
NOTE:
: Indicates optional
button.
M odels RG51M2/(C)E:
without 14 and 15
buttons.
Models RG51M3/(C)E:
without 7 , 14 and
15 buttons.
Models R51M/(C)E
and R51M/BG(C)E:
without 15 button.
CLEAN
AIR
15
*
*
TEMP Button : Push this button to decrease the indoor
temperature setting.
RESET Button: When you press the recessed RESET button,
all current settings are cancelled and the control will return to
the initial settings.
SLEEP Button: Press this button to go into the Energy-Saving
operation mode. Press it again to cancel. This function is only
can be used on COOL, HEAT and AUTO mode and maintain the
most comfortable temperature for you.
2
NOTE: COOL only model has no HEAT feature.
!
1
6
ON/OFF Button: Push this button to start operation, push the
button again to stop operation.
9
TEMP Button : Push this button to increase the indoor
temperature setting .
2
AIR DIRECTION Button: Press this button to change the swing
angle of the louver. The swing angle of the louver is 6 for
each press. When the louver swing at a certain angle which
would affect the cooling and heating effect of the air conditioner,
it would automatically change the swing direction . No symbol
will appear in the display area when press this button. (Not
applicable to units without this function).
o
MODE Selection Button: Each time the button is pressed, the
operation mode is shifted in the direction of the arrow:
AUTO
COOL
DRY
HEAT
FAN
3
FAN SPEED Button: Used to select the Fan Speed in four steps-
AUTO LOW MED or HIGH. Each time the button is pressed,
the fan speed mode is shifted.
8
TIMER ON Button: Press this button to initiate the auto-on time
sequence. Each press will increase the auto-timed setting in 30
minutes increments. When the setting time displays 10:00, each
press will increase the auto-timed setting 60 minutes increments.
To cancel the auto-timed program, simply adjust the auto-on time
to 0:00.
10
11
4
5
NOTE: While the unit is running under SLEEP operation
mode, it would be canceled if you press the other button.
!
1
Model
Transmission Distance
Lowest Voltage of CPU
Emitting Signal
Rated Voltage
R51M/(C)E, R51M/BG(C)E, RG51M2/(C)E,
RG51A/(C)E, RG51M3/(C)E.
-5 C 60 C
8m (when using 3.0 voltage,
it Gets 11m)
3.0V(Alkaline dry batteries LR03 2)
2.0V
~
Remote Controller Specification
Performance Features
Features of the Remote controller buttons
1. Operating Mode: AUTO COOL DRY
HEAT(Cooling only model without) and FAN .
2. Timer Setting Function in 24 hours.
3. Indoor Setting Temperature Range : 17 C~30 C.
4. Full function of LCD (Liquid Crystal Display)
5. Back light emitting(only available for R51M/BG(C)E models)
Fig. 1
( C)
TEMP
AUTO
COOL
DRY
HEAT
FAN
HIGH
MED
LOW
MODE
FAN SPEED
TIMER ON
SLEEP
ON/OFF
TIMER OFF
AIR
DIRECTION
RESET LOCK
1
2
4
5
6
7
3
8
9
10
11
12
13
14
Environment
SET TEMPERATURE
SWING
LED
DISPLAY
TURBO
SWING Button: Push this switch button to activate auto
swing feature of the horizontal louver. Push it again to stop.
LED DISPLAY Button: Press this button to clear the digit
display in the air conditioner, press it again to activate it (Not
available for the units without LED display window).
7
*
*
*
*
*
*
*
*
NOTE:
: Indicates optional
button.
M odels RG51M2/(C)E:
without 14 and 15
buttons.
Models RG51M3/(C)E:
without 7 , 14 and
15 buttons.
Models R51M/(C)E
and R51M/BG(C)E:
without 15 button.
CLEAN
AIR
15
*
*
TEMP Button : Push this button to decrease the indoor
temperature setting.
RESET Button: When you press the recessed RESET button,
all current settings are cancelled and the control will return to
the initial settings.
SLEEP Button: Press this button to go into the Energy-Saving
operation mode. Press it again to cancel. This function is only
can be used on COOL, HEAT and AUTO mode and maintain the
most comfortable temperature for you.
2
NOTE: COOL only model has no HEAT feature.
!
1
6
ON/OFF Button: Push this button to start operation, push the
button again to stop operation.
9
TEMP Button : Push this button to increase the indoor
temperature setting .
2
AIR DIRECTION Button: Press this button to change the swing
angle of the louver. The swing angle of the louver is 6 for
each press. When the louver swing at a certain angle which
would affect the cooling and heating effect of the air conditioner,
it would automatically change the swing direction . No symbol
will appear in the display area when press this button. (Not
applicable to units without this function).
o
MODE Selection Button: Each time the button is pressed, the
operation mode is shifted in the direction of the arrow:
AUTO
COOL
DRY
HEAT
FAN
3
FAN SPEED Button: Used to select the Fan Speed in four steps-
AUTO LOW MED or HIGH. Each time the button is pressed,
the fan speed mode is shifted.
8
TIMER ON Button: Press this button to initiate the auto-on time
sequence. Each press will increase the auto-timed setting in 30
minutes increments. When the setting time displays 10:00, each
press will increase the auto-timed setting 60 minutes increments.
To cancel the auto-timed program, simply adjust the auto-on time
to 0:00.
10
11
4
5
NOTE: While the unit is running under SLEEP operation
mode, it would be canceled if you press the other button.
!
1
Model
Transmission Distance
Lowest Voltage of CPU
Emitting Signal
Rated Voltage
R51M/(C)E, R51M/BG(C)E, RG51M2/(C)E,
RG51A/(C)E, RG51M3/(C)E.
-5 C 60 C
8m (when using 3.0 voltage,
it Gets 11m)
3.0V(Alkaline dry batteries LR03 2)
2.0V
~
Remote Controller Specification
Performance Features
Features of the Remote controller buttons
1. Operating Mode: AUTO COOL DRY
HEAT(Cooling only model without) and FAN .
2. Timer Setting Function in 24 hours.
3. Indoor Setting Temperature Range : 17 C~30 C.
4. Full function of LCD (Liquid Crystal Display)
5. Back light emitting(only available for R51M/BG(C)E models)
Fig. 1
( C)
TEMP
AUTO
COOL
DRY
HEAT
FAN
HIGH
MED
LOW
MODE
FAN SPEED
TIMER ON
SLEEP
ON/OFF
TIMER OFF
AIR
DIRECTION
RESET LOCK
1
2
4
5
6
7
3
8
9
10
11
12
13
14
Environment
SET TEMPERATURE
SWING
LED
DISPLAY
TURBO
SWING Button: Push this switch button to activate auto
swing feature of the horizontal louver. Push it again to stop.
LED DISPLAY Button: Press this button to clear the digit
display in the air conditioner, press it again to activate it (Not
available for the units without LED display window).
7
*
*
*
*
*
*
*
*
NOTE:
: Indicates optional
button.
M odels RG51M2/(C)E:
without 14 and 15
buttons.
Models RG51M3/(C)E:
without 7 , 14 and
15 buttons.
Models R51M/(C)E
and R51M/BG(C)E:
without 15 button.
CLEAN
AIR
15
*
*
TEMP Button : Push this button to decrease the indoor
temperature setting.
RESET Button: When you press the recessed RESET button,
all current settings are cancelled and the control will return to
the initial settings.
SLEEP Button: Press this button to go into the Energy-Saving
operation mode. Press it again to cancel. This function is only
can be used on COOL, HEAT and AUTO mode and maintain the
most comfortable temperature for you.
2
NOTE: COOL only model has no HEAT feature.
!
1
6
ON/OFF Button: Push this button to start operation, push the
button again to stop operation.
9
TEMP Button : Push this button to increase the indoor
temperature setting .
2
AIR DIRECTION Button: Press this button to change the swing
angle of the louver. The swing angle of the louver is 6 for
each press. When the louver swing at a certain angle which
would affect the cooling and heating effect of the air conditioner,
it would automatically change the swing direction . No symbol
will appear in the display area when press this button. (Not
applicable to units without this function).
o
MODE Selection Button: Each time the button is pressed, the
operation mode is shifted in the direction of the arrow:
AUTO
COOL
DRY
HEAT
FAN
3
FAN SPEED Button: Used to select the Fan Speed in four steps-
AUTO LOW MED or HIGH. Each time the button is pressed,
the fan speed mode is shifted.
8
TIMER ON Button: Press this button to initiate the auto-on time
sequence. Each press will increase the auto-timed setting in 30
minutes increments. When the setting time displays 10:00, each
press will increase the auto-timed setting 60 minutes increments.
To cancel the auto-timed program, simply adjust the auto-on time
to 0:00.
10
11
4
5
NOTE: While the unit is running under SLEEP operation
mode, it would be canceled if you press the other button.
!
1
Model
Transmission Distance
Lowest Voltage of CPU
Emitting Signal
Rated Voltage
R51M/(C)E, R51M/BG(C)E, RG51M2/(C)E,
RG51A/(C)E, RG51M3/(C)E.
-5 C 60 C
8m (when using 3.0 voltage,
it Gets 11m)
3.0V(Alkaline dry batteries LR03 2)
2.0V
~
Remote Controller Specification
Performance Features
Features of the Remote controller buttons
1. Operating Mode: AUTO COOL DRY
HEAT(Cooling only model without) and FAN .
2. Timer Setting Function in 24 hours.
3. Indoor Setting Temperature Range : 17 C~30 C.
4. Full function of LCD (Liquid Crystal Display)
5. Back light emitting(only available for R51M/BG(C)E models)
Fig. 1
( C)
TEMP
AUTO
COOL
DRY
HEAT
FAN
HIGH
MED
LOW
MODE
FAN SPEED
TIMER ON
SLEEP
ON/OFF
TIMER OFF
AIR
DIRECTION
RESET LOCK
1
2
4
5
6
7
3
8
9
10
11
12
13
14
Environment
SET TEMPERATURE
SWING
LED
DISPLAY
TURBO
SWING Button: Push this switch button to activate auto
swing feature of the horizontal louver. Push it again to stop.
LED DISPLAY Button: Press this button to clear the digit
display in the air conditioner, press it again to activate it (Not
available for the units without LED display window).
7
*
*
*
*
*
*
*
*
NOTE:
: Indicates optional
button.
M odels RG51M2/(C)E:
without 14 and 15
buttons.
Models RG51M3/(C)E:
without 7 , 14 and
15 buttons.
Models R51M/(C)E
and R51M/BG(C)E:
without 15 button.
CLEAN
AIR
15
*
*
TEMP Button : Push this button to decrease the indoor
temperature setting.
RESET Button: When you press the recessed RESET button,
all current settings are cancelled and the control will return to
the initial settings.
SLEEP Button: Press this button to go into the Energy-Saving
operation mode. Press it again to cancel. This function is only
can be used on COOL, HEAT and AUTO mode and maintain the
most comfortable temperature for you.
2
NOTE: COOL only model has no HEAT feature.
!
1
6
ON/OFF Button: Push this button to start operation, push the
button again to stop operation.
9
TEMP Button : Push this button to increase the indoor
temperature setting .
2
AIR DIRECTION Button: Press this button to change the swing
angle of the louver. The swing angle of the louver is 6 for
each press. When the louver swing at a certain angle which
would affect the cooling and heating effect of the air conditioner,
it would automatically change the swing direction . No symbol
will appear in the display area when press this button. (Not
applicable to units without this function).
o
MODE Selection Button: Each time the button is pressed, the
operation mode is shifted in the direction of the arrow:
AUTO
COOL
DRY
HEAT
FAN
3
FAN SPEED Button: Used to select the Fan Speed in four steps-
AUTO LOW MED or HIGH. Each time the button is pressed,
the fan speed mode is shifted.
8
TIMER ON Button: Press this button to initiate the auto-on time
sequence. Each press will increase the auto-timed setting in 30
minutes increments. When the setting time displays 10:00, each
press will increase the auto-timed setting 60 minutes increments.
To cancel the auto-timed program, simply adjust the auto-on time
to 0:00.
10
11
4
5
NOTE: While the unit is running under SLEEP operation
mode, it would be canceled if you press the other button.
!
1
Model
Transmission Distance
Lowest Voltage of CPU
Emitting Signal
Rated Voltage
R51M/(C)E, R51M/BG(C)E, RG51M2/(C)E,
RG51A/(C)E, RG51M3/(C)E.
-5 C 60 C
8m (when using 3.0 voltage,
it Gets 11m)
3.0V(Alkaline dry batteries LR03 2)
2.0V
~
Remote Controller Specification
Performance Features
Features of the Remote controller buttons
1. Operating Mode: AUTO COOL DRY
HEAT(Cooling only model without) and FAN .
2. Timer Setting Function in 24 hours.
3. Indoor Setting Temperature Range : 17 C~30 C.
4. Full function of LCD (Liquid Crystal Display)
5. Back light emitting(only available for R51M/BG(C)E models)
Fig. 1
( C)
TEMP
AUTO
COOL
DRY
HEAT
FAN
HIGH
MED
LOW
MODE
FAN SPEED
TIMER ON
SLEEP
ON/OFF
TIMER OFF
AIR
DIRECTION
RESET LOCK
1
2
4
5
6
7
3
8
9
10
11
12
13
14
Environment
SET TEMPERATURE
SWING
LED
DISPLAY
TURBO
SWING Button: Push this switch button to activate auto
swing feature of the horizontal louver. Push it again to stop.
LED DISPLAY Button: Press this button to clear the digit
display in the air conditioner, press it again to activate it (Not
available for the units without LED display window).
7
*
*
*
*
*
*
*
*
NOTE:
: Indicates optional
button.
M odels RG51M2/(C)E:
without 14 and 15
buttons.
Models RG51M3/(C)E:
without 7 , 14 and
15 buttons.
Models R51M/(C)E
and R51M/BG(C)E:
without 15 button.
CLEAN
AIR
15
*
*
TEMP Button : Push this button to decrease the indoor
temperature setting.
RESET Button: When you press the recessed RESET button,
all current settings are cancelled and the control will return to
the initial settings.
SLEEP Button: Press this button to go into the Energy-Saving
operation mode. Press it again to cancel. This function is only
can be used on COOL, HEAT and AUTO mode and maintain the
most comfortable temperature for you.
2
NOTE: COOL only model has no HEAT feature.
!
1
6
ON/OFF Button: Push this button to start operation, push the
button again to stop operation.
9
TEMP Button : Push this button to increase the indoor
temperature setting .
2
AIR DIRECTION Button: Press this button to change the swing
angle of the louver. The swing angle of the louver is 6 for
each press. When the louver swing at a certain angle which
would affect the cooling and heating effect of the air conditioner,
it would automatically change the swing direction . No symbol
will appear in the display area when press this button. (Not
applicable to units without this function).
o
MODE Selection Button: Each time the button is pressed, the
operation mode is shifted in the direction of the arrow:
AUTO
COOL
DRY
HEAT
FAN
3
FAN SPEED Button: Used to select the Fan Speed in four steps-
AUTO LOW MED or HIGH. Each time the button is pressed,
the fan speed mode is shifted.
8
TIMER ON Button: Press this button to initiate the auto-on time
sequence. Each press will increase the auto-timed setting in 30
minutes increments. When the setting time displays 10:00, each
press will increase the auto-timed setting 60 minutes increments.
To cancel the auto-timed program, simply adjust the auto-on time
to 0:00.
10
11
4
5
NOTE: While the unit is running under SLEEP operation
mode, it would be canceled if you press the other button.
!
1
Model
Transmission Distance
Lowest Voltage of CPU
Emitting Signal
Rated Voltage
R51M/(C)E, R51M/BG(C)E, RG51M2/(C)E,
RG51A/(C)E, RG51M3/(C)E.
-5 C 60 C
8m (when using 3.0 voltage,
it Gets 11m)
3.0V(Alkaline dry batteries LR03 2)
2.0V
~
Remote Controller Specification
Performance Features
Features of the Remote controller buttons
1. Operating Mode: AUTO COOL DRY
HEAT(Cooling only model without) and FAN .
2. Timer Setting Function in 24 hours.
3. Indoor Setting Temperature Range : 17 C~30 C.
4. Full function of LCD (Liquid Crystal Display)
5. Back light emitting(only available for R51M/BG(C)E models)
Fig. 1
( C)
TEMP
AUTO
COOL
DRY
HEAT
FAN
HIGH
MED
LOW
MODE
FAN SPEED
TIMER ON
SLEEP
ON/OFF
TIMER OFF
AIR
DIRECTION
RESET LOCK
1
2
4
5
6
7
3
8
9
10
11
12
13
14
Environment
SET TEMPERATURE
SWING
LED
DISPLAY
TURBO
SWING Button: Push this switch button to activate auto
swing feature of the horizontal louver. Push it again to stop.
LED DISPLAY Button: Press this button to clear the digit
display in the air conditioner, press it again to activate it (Not
available for the units without LED display window).
7
*
*
*
*
*
*
*
*
NOTE:
: Indicates optional
button.
M odels RG51M2/(C)E:
without 14 and 15
buttons.
Models RG51M3/(C)E:
without 7 , 14 and
15 buttons.
Models R51M/(C)E
and R51M/BG(C)E:
without 15 button.
CLEAN
AIR
15
*
*
TEMP Button : Push this button to decrease the indoor
temperature setting.
RESET Button: When you press the recessed RESET button,
all current settings are cancelled and the control will return to
the initial settings.
SLEEP Button: Press this button to go into the Energy-Saving
operation mode. Press it again to cancel. This function is only
can be used on COOL, HEAT and AUTO mode and maintain the
most comfortable temperature for you.
2
NOTE: COOL only model has no HEAT feature.
!
1
6
ON/OFF Button: Push this button to start operation, push the
button again to stop operation.
9
TEMP Button : Push this button to increase the indoor
temperature setting .
2
AIR DIRECTION Button: Press this button to change the swing
angle of the louver. The swing angle of the louver is 6 for
each press. When the louver swing at a certain angle which
would affect the cooling and heating effect of the air conditioner,
it would automatically change the swing direction . No symbol
will appear in the display area when press this button. (Not
applicable to units without this function).
o
MODE Selection Button: Each time the button is pressed, the
operation mode is shifted in the direction of the arrow:
AUTO
COOL
DRY
HEAT
FAN
3
FAN SPEED Button: Used to select the Fan Speed in four steps-
AUTO LOW MED or HIGH. Each time the button is pressed,
the fan speed mode is shifted.
8
TIMER ON Button: Press this button to initiate the auto-on time
sequence. Each press will increase the auto-timed setting in 30
minutes increments. When the setting time displays 10:00, each
press will increase the auto-timed setting 60 minutes increments.
To cancel the auto-timed program, simply adjust the auto-on time
to 0:00.
10
11
4
5
NOTE: While the unit is running under SLEEP operation
mode, it would be canceled if you press the other button.
!
1
Model
Transmission Distance
Lowest Voltage of CPU
Emitting Signal
Rated Voltage
R51M/(C)E, R51M/BG(C)E, RG51M2/(C)E,
RG51A/(C)E, RG51M3/(C)E.
-5 C 60 C
8m (when using 3.0 voltage,
it Gets 11m)
3.0V(Alkaline dry batteries LR03 2)
2.0V
~
Remote Controller Specification
Performance Features
Features of the Remote controller buttons
1. Operating Mode: AUTO COOL DRY
HEAT(Cooling only model without) and FAN .
2. Timer Setting Function in 24 hours.
3. Indoor Setting Temperature Range : 17 C~30 C.
4. Full function of LCD (Liquid Crystal Display)
5. Back light emitting(only available for R51M/BG(C)E models)
Fig. 1
( C)
TEMP
AUTO
COOL
DRY
HEAT
FAN
HIGH
MED
LOW
MODE
FAN SPEED
TIMER ON
SLEEP
ON/OFF
TIMER OFF
AIR
DIRECTION
RESET LOCK
1
2
4
5
6
7
3
8
9
10
11
12
13
14
Environment
SET TEMPERATURE
SWING
LED
DISPLAY
TURBO
SWING Button: Push this switch button to activate auto
swing feature of the horizontal louver. Push it again to stop.
LED DISPLAY Button: Press this button to clear the digit
display in the air conditioner, press it again to activate it (Not
available for the units without LED display window).
7
*
*
*
*
*
*
*
*
NOTE:
: Indicates optional
button.
M odels RG51M2/(C)E:
without 14 and 15
buttons.
Models RG51M3/(C)E:
without 7 , 14 and
15 buttons.
Models R51M/(C)E
and R51M/BG(C)E:
without 15 button.
CLEAN
AIR
15
*
*
TEMP Button : Push this button to decrease the indoor
temperature setting.
RESET Button: When you press the recessed RESET button,
all current settings are cancelled and the control will return to
the initial settings.
SLEEP Button: Press this button to go into the Energy-Saving
operation mode. Press it again to cancel. This function is only
can be used on COOL, HEAT and AUTO mode and maintain the
most comfortable temperature for you.
2
NOTE: COOL only model has no HEAT feature.
!
1
6
ON/OFF Button: Push this button to start operation, push the
button again to stop operation.
9
TEMP Button : Push this button to increase the indoor
temperature setting .
2
AIR DIRECTION Button: Press this button to change the swing
angle of the louver. The swing angle of the louver is 6 for
each press. When the louver swing at a certain angle which
would affect the cooling and heating effect of the air conditioner,
it would automatically change the swing direction . No symbol
will appear in the display area when press this button. (Not
applicable to units without this function).
o
MODE Selection Button: Each time the button is pressed, the
operation mode is shifted in the direction of the arrow:
AUTO
COOL
DRY
HEAT
FAN
3
FAN SPEED Button: Used to select the Fan Speed in four steps-
AUTO LOW MED or HIGH. Each time the button is pressed,
the fan speed mode is shifted.
8
TIMER ON Button: Press this button to initiate the auto-on time
sequence. Each press will increase the auto-timed setting in 30
minutes increments. When the setting time displays 10:00, each
press will increase the auto-timed setting 60 minutes increments.
To cancel the auto-timed program, simply adjust the auto-on time
to 0:00.
10
11
4
5
NOTE: While the unit is running under SLEEP operation
mode, it would be canceled if you press the other button.
!
1
Model
Transmission Distance
Lowest Voltage of CPU
Emitting Signal
Rated Voltage
R51M/(C)E, R51M/BG(C)E, RG51M2/(C)E,
RG51A/(C)E, RG51M3/(C)E.
-5 C 60 C
8m (when using 3.0 voltage,
it Gets 11m)
3.0V(Alkaline dry batteries LR03 2)
2.0V
~
Remote Controller Specification
Performance Features
Features of the Remote controller buttons
1. Operating Mode: AUTO COOL DRY
HEAT(Cooling only model without) and FAN .
2. Timer Setting Function in 24 hours.
3. Indoor Setting Temperature Range : 17 C~30 C.
4. Full function of LCD (Liquid Crystal Display)
5. Back light emitting(only available for R51M/BG(C)E models)
Fig. 1
( C)
TEMP
AUTO
COOL
DRY
HEAT
FAN
HIGH
MED
LOW
MODE
FAN SPEED
TIMER ON
SLEEP
ON/OFF
TIMER OFF
AIR
DIRECTION
RESET LOCK
1
2
4
5
6
7
3
8
9
10
11
12
13
14
Environment
SET TEMPERATURE
SWING
LED
DISPLAY
TURBO
SWING Button: Push this switch button to activate auto
swing feature of the horizontal louver. Push it again to stop.
LED DISPLAY Button: Press this button to clear the digit
display in the air conditioner, press it again to activate it (Not
available for the units without LED display window).
7
*
*
*
*
*
*
*
*
NOTE:
: Indicates optional
button.
M odels RG51M2/(C)E:
without 14 and 15
buttons.
Models RG51M3/(C)E:
without 7 , 14 and
15 buttons.
Models R51M/(C)E
and R51M/BG(C)E:
without 15 button.
CLEAN
AIR
15
*
*
TEMP Button : Push this button to decrease the indoor
temperature setting.
RESET Button: When you press the recessed RESET button,
all current settings are cancelled and the control will return to
the initial settings.
SLEEP Button: Press this button to go into the Energy-Saving
operation mode. Press it again to cancel. This function is only
can be used on COOL, HEAT and AUTO mode and maintain the
most comfortable temperature for you.
2
NOTE: COOL only model has no HEAT feature.
!
1
6
ON/OFF Button: Push this button to start operation, push the
button again to stop operation.
9
TEMP Button : Push this button to increase the indoor
temperature setting .
2
AIR DIRECTION Button: Press this button to change the swing
angle of the louver. The swing angle of the louver is 6 for
each press. When the louver swing at a certain angle which
would affect the cooling and heating effect of the air conditioner,
it would automatically change the swing direction . No symbol
will appear in the display area when press this button. (Not
applicable to units without this function).
o
MODE Selection Button: Each time the button is pressed, the
operation mode is shifted in the direction of the arrow:
AUTO
COOL
DRY
HEAT
FAN
3
FAN SPEED Button: Used to select the Fan Speed in four steps-
AUTO LOW MED or HIGH. Each time the button is pressed,
the fan speed mode is shifted.
8
TIMER ON Button: Press this button to initiate the auto-on time
sequence. Each press will increase the auto-timed setting in 30
minutes increments. When the setting time displays 10:00, each
press will increase the auto-timed setting 60 minutes increments.
To cancel the auto-timed program, simply adjust the auto-on time
to 0:00.
10
11
4
5
NOTE: While the unit is running under SLEEP operation
mode, it would be canceled if you press the other button.
!
1
Model
Transmission Distance
Lowest Voltage of CPU
Emitting Signal
Rated Voltage
R51M/(C)E, R51M/BG(C)E, RG51M2/(C)E,
RG51A/(C)E, RG51M3/(C)E.
-5 C 60 C
8m (when using 3.0 voltage,
it Gets 11m)
3.0V(Alkaline dry batteries LR03 2)
2.0V
~
Remote Controller Specification
Performance Features
Features of the Remote controller buttons
1. Operating Mode: AUTO COOL DRY
HEAT(Cooling only model without) and FAN .
2. Timer Setting Function in 24 hours.
3. Indoor Setting Temperature Range : 17 C~30 C.
4. Full function of LCD (Liquid Crystal Display)
5. Back light emitting(only available for R51M/BG(C)E models)
Fig. 1
( C)
TEMP
AUTO
COOL
DRY
HEAT
FAN
HIGH
MED
LOW
MODE
FAN SPEED
TIMER ON
SLEEP
ON/OFF
TIMER OFF
AIR
DIRECTION
RESET LOCK
1
2
4
5
6
7
3
8
9
10
11
12
13
14
Environment
SET TEMPERATURE
SWING
LED
DISPLAY
TURBO
SWING Button: Push this switch button to activate auto
swing feature of the horizontal louver. Push it again to stop.
LED DISPLAY Button: Press this button to clear the digit
display in the air conditioner, press it again to activate it (Not
available for the units without LED display window).
7
*
*
*
*
*
*
*
*
NOTE:
: Indicates optional
button.
M odels RG51M2/(C)E:
without 14 and 15
buttons.
Models RG51M3/(C)E:
without 7 , 14 and
15 buttons.
Models R51M/(C)E
and R51M/BG(C)E:
without 15 button.
CLEAN
AIR
15
*
*
TEMP Button : Push this button to decrease the indoor
temperature setting.
RESET Button: When you press the recessed RESET button,
all current settings are cancelled and the control will return to
the initial settings.
SLEEP Button: Press this button to go into the Energy-Saving
operation mode. Press it again to cancel. This function is only
can be used on COOL, HEAT and AUTO mode and maintain the
most comfortable temperature for you.
2
NOTE: COOL only model has no HEAT feature.
!
1
6
ON/OFF Button: Push this button to start operation, push the
button again to stop operation.
9
TEMP Button : Push this button to increase the indoor
temperature setting .
2
AIR DIRECTION Button: Press this button to change the swing
angle of the louver. The swing angle of the louver is 6 for
each press. When the louver swing at a certain angle which
would affect the cooling and heating effect of the air conditioner,
it would automatically change the swing direction . No symbol
will appear in the display area when press this button. (Not
applicable to units without this function).
o
MODE Selection Button: Each time the button is pressed, the
operation mode is shifted in the direction of the arrow:
AUTO
COOL
DRY
HEAT
FAN
3
FAN SPEED Button: Used to select the Fan Speed in four steps-
AUTO LOW MED or HIGH. Each time the button is pressed,
the fan speed mode is shifted.
8
TIMER ON Button: Press this button to initiate the auto-on time
sequence. Each press will increase the auto-timed setting in 30
minutes increments. When the setting time displays 10:00, each
press will increase the auto-timed setting 60 minutes increments.
To cancel the auto-timed program, simply adjust the auto-on time
to 0:00.
10
11
4
5
NOTE: While the unit is running under SLEEP operation
mode, it would be canceled if you press the other button.
!
1
Model
Transmission Distance
Lowest Voltage of CPU
Emitting Signal
Rated Voltage
R51M/(C)E, R51M/BG(C)E, RG51M2/(C)E,
RG51A/(C)E, RG51M3/(C)E.
-5 C 60 C
8m (when using 3.0 voltage,
it Gets 11m)
3.0V(Alkaline dry batteries LR03 2)
2.0V
~
Remote Controller Specification
Performance Features
Features of the Remote controller buttons
1. Operating Mode: AUTO COOL DRY
HEAT(Cooling only model without) and FAN .
2. Timer Setting Function in 24 hours.
3. Indoor Setting Temperature Range : 17 C~30 C.
4. Full function of LCD (Liquid Crystal Display)
5. Back light emitting(only available for R51M/BG(C)E models)
Fig. 1
( C)
TEMP
AUTO
COOL
DRY
HEAT
FAN
HIGH
MED
LOW
MODE
FAN SPEED
TIMER ON
SLEEP
ON/OFF
TIMER OFF
AIR
DIRECTION
RESET LOCK
1
2
4
5
6
7
3
8
9
10
11
12
13
14
Environment
SET TEMPERATURE
SWING
LED
DISPLAY
TURBO
SWING Button: Push this switch button to activate auto
swing feature of the horizontal louver. Push it again to stop.
LED DISPLAY Button: Press this button to clear the digit
display in the air conditioner, press it again to activate it (Not
available for the units without LED display window).
7
*
*
*
*
*
*
*
*
NOTE:
: Indicates optional
button.
M odels RG51M2/(C)E:
without 14 and 15
buttons.
Models RG51M3/(C)E:
without 7 , 14 and
15 buttons.
Models R51M/(C)E
and R51M/BG(C)E:
without 15 button.
CLEAN
AIR
15
*
*
TEMP Button : Push this button to decrease the indoor
temperature setting.
RESET Button: When you press the recessed RESET button,
all current settings are cancelled and the control will return to
the initial settings.
SLEEP Button: Press this button to go into the Energy-Saving
operation mode. Press it again to cancel. This function is only
can be used on COOL, HEAT and AUTO mode and maintain the
most comfortable temperature for you.
2
NOTE: COOL only model has no HEAT feature.
!
1
6
ON/OFF Button: Push this button to start operation, push the
button again to stop operation.
9
TEMP Button : Push this button to increase the indoor
temperature setting .
2
AIR DIRECTION Button: Press this button to change the swing
angle of the louver. The swing angle of the louver is 6 for
each press. When the louver swing at a certain angle which
would affect the cooling and heating effect of the air conditioner,
it would automatically change the swing direction . No symbol
will appear in the display area when press this button. (Not
applicable to units without this function).
o
MODE Selection Button: Each time the button is pressed, the
operation mode is shifted in the direction of the arrow:
AUTO
COOL
DRY
HEAT
FAN
3
FAN SPEED Button: Used to select the Fan Speed in four steps-
AUTO LOW MED or HIGH. Each time the button is pressed,
the fan speed mode is shifted.
8
TIMER ON Button: Press this button to initiate the auto-on time
sequence. Each press will increase the auto-timed setting in 30
minutes increments. When the setting time displays 10:00, each
press will increase the auto-timed setting 60 minutes increments.
To cancel the auto-timed program, simply adjust the auto-on time
to 0:00.
10
11
4
5
NOTE: While the unit is running under SLEEP operation
mode, it would be canceled if you press the other button.
!
1
Model
Transmission Distance
Lowest Voltage of CPU
Emitting Signal
Rated Voltage
R51M/(C)E, R51M/BG(C)E, RG51M2/(C)E,
RG51A/(C)E, RG51M3/(C)E.
-5 C 60 C
8m (when using 3.0 voltage,
it Gets 11m)
3.0V(Alkaline dry batteries LR03 2)
2.0V
~
Remote Controller Specification
Performance Features
Features of the Remote controller buttons
1. Operating Mode: AUTO COOL DRY
HEAT(Cooling only model without) and FAN .
2. Timer Setting Function in 24 hours.
3. Indoor Setting Temperature Range : 17 C~30 C.
4. Full function of LCD (Liquid Crystal Display)
5. Back light emitting(only available for R51M/BG(C)E models)
Fig. 1
( C)
TEMP
AUTO
COOL
DRY
HEAT
FAN
HIGH
MED
LOW
MODE
FAN SPEED
TIMER ON
SLEEP
ON/OFF
TIMER OFF
AIR
DIRECTION
RESET LOCK
1
2
4
5
6
7
3
8
9
10
11
12
13
14
Environment
SET TEMPERATURE
SWING
LED
DISPLAY
TURBO
SWING Button: Push this switch button to activate auto
swing feature of the horizontal louver. Push it again to stop.
LED DISPLAY Button: Press this button to clear the digit
display in the air conditioner, press it again to activate it (Not
available for the units without LED display window).
7
*
*
*
*
*
*
*
*
NOTE:
: Indicates optional
button.
M odels RG51M2/(C)E:
without 14 and 15
buttons.
Models RG51M3/(C)E:
without 7 , 14 and
15 buttons.
Models R51M/(C)E
and R51M/BG(C)E:
without 15 button.
CLEAN
AIR
15
*
*
Содержание
- Cs322 r 1
- Remote controller 1
- Be sure there are no obstacles between the remote controller and the receiver of indoor unit otherwise the air conditioner will not work 2 keep the remote controller away from any liquids 3 protect the remote controller from the high temperatures and exposure to radiation 4 keep the indoor receiver out of direct sunlight or the air condi tioner may malfunction 5 keep remote controller away from emi electro magnetic interference supplied by other household appliances 2
- Contents 2
- Set the starting stopping time 2
- The setting time is relative time that is the time set is based on the delay of the current time 2
- Индикаторы на экране 2
- Кнопки пульта ду 2
- Предупреждение 2
- Содержание 2
- Технические характеристики ду 2
- Управление с пульта ду 2
- Функции ду 2
- 0 в сухие щелочные батареи lr03 2 3
- 5 c 60 c 3
- Air direction button press this button to change the swing angle of the louver the swing angle of the louver is 6 for each press when the louver swing at a certain angle which would affect the cooling and heating effect of the air conditioner it would automatically change the swing direction no symbol will appear in the display area when press this button not applicable to units without this function 3
- Environment 3
- Fan speed button used to select the fan speed in four steps auto low med or high each time the button is pressed the fan speed mode is shifted 3
- Features of the remote controller buttons 3
- Led display button press this button to clear the digit display in the air conditioner press it again to activate it not available for the units without led display window 3
- Lowest voltage of cpu emitting signal 3
- M when using 3 voltage it gets 11m 3
- Mode selection button each time the button is pressed the operation mode is shifted in the direction of the arrow 3
- Note cool only model has no heat feature 3
- Note while the unit is running under sleep operation mode it would be canceled if you press the other button 3
- On off button push this button to start operation push the button again to stop operation 3
- Operating mode auto cool dry heat cooling only model without and fan 2 timer setting function in 24 hours 3 indoor setting temperature range 17 c 30 c 4 full function of lcd liquid crystal display 5 back light emitting only available for r51m bg c e models 3
- R51m c e r51m bg c e rg51m2 c e rg51a c e rg51m3 c e 3
- Rated voltage 3
- Reset button when you press the recessed reset button all current settings are cancelled and the control will return to the initial settings 3
- Sleep button press this button to go into the energy saving operation mode press it again to cancel this function is only can be used on cool heat and auto mode and maintain the most comfortable temperature for you 3
- Swing button push this switch button to activate auto swing feature of the horizontal louver push it again to stop 3
- Temp button push this button to decrease the indoor temperature setting 3
- Temp button push this button to increase the indoor temperature setting 3
- Timer on button press this button to initiate the auto on time sequence each press will increase the auto timed setting in 30 minutes increments when the setting time displays 10 00 each press will increase the auto timed setting 60 minutes increments to cancel the auto timed program simply adjust the auto on time to 0 00 3
- Transmission distance 3
- V alkaline dry batteries lr03 2 3
- Кнопка air direction эта кнопка изменяет угол наклона жалюзи с каждым нажатием кнопки угол наклона изменяется на 6º если угол изменится настолько что положение жалюзи будет уменьшать охлаждающее или нагревающее действие кондиционера то направление движения жалюзи изменится при нажатии этой кнопки на экране не появляются символы не применяется на системах у которых нет такой функции 3
- Кнопка fan speed переключает частоту вращения вентилятора последовательно между четырьмя ступенями скорости auto low med и high скорость переключается при каждом нажатии кнопки 3
- Кнопка led display выключает цифровой экран кондиционера повторное нажатие снова включает экран не применяется на системах у которых нет жидкокристаллического экрана 3
- Кнопка on off нажмите кнопку чтобы включить систему повторное нажатие выключает систему 3
- Кнопка reset при нажатии кнопки reset происходит сброс всех текущих настроек и восстанавливаются первоначальные настройки системы 3
- Кнопка sleep кнопка переключения в экономичный режим работы повторное нажатие кнопки выключает экономичный режим эта функция используется только в режимах cool heat и auto для поддержания наиболее комфортной для вас температуры примечание когда система работает в экономичном режиме нажатие любой другой кнопки выводит ее из этого режима 3
- Кнопка swing эта кнопка включает режим автоматического движения горизонтальных жалюзи повторное нажатие кнопки выключает движение 3
- Кнопка temp эта кнопка снижает установленную для помещения температуру кнопка temp эта кнопка повышает установленную для помещения температуру кнопка выбора режима mode при каждом нажатии этой кнопки режим работы переключается по направлению стрелки 3
- Кнопка timer on эта кнопка включает режим автоматического включения по таймеру с каждым нажатием кнопки настройка таймера увеличивается на 30 минут когда настраиваемое время дойдет до 10 00 с каждым нажатием кнопки настройка таймера будет увеличиваться на 60 минут чтобы отменить включение по таймеру установите время включения на 0 00 3
- Кнопки пульта ду 3
- М при напряжении 3 0 в 11 м 3
- Модель r51m c e r51m bg c e rg51m2 c e rg51a c e rg51m3 c e 3
- Номинальное напряжение минимальное напряжение цпу при генерировании сигнала расстояние передачи 3
- Примечание у моделей которые только охлаждают воздух нет режима heat 3
- Режим работы auto cool охлаждение dry осушение heat отопление нет в моделях где только охлаждение и fan вентиляция 2 настройка таймера на 24 часа 3 поддержание температуры в помещении от 17 ºc до 30 ºc 4 полнофункциональный жидкокристаллический экран 5 подсветка экрана только у моделей r51m bg c e 3
- Рис 1 3
- Температура 3
- Технические характеристики ду 3
- Функции ду 3
- Clean air button on some models when push this button the ionizer or plasma dust collector depending on models is energized and will help to remove pollen and impurities from the air 4
- Fan speed indicator press the fan speed button to select the desired fan speed setting auto low med high you selection will be displayed in the lcd window except the auto fan speed 4
- Lock button when you press the recessed lock button all current settings are locked in and the remote controller does not accept any operation except that of the lock press again to cancel the lock mode 4
- Lock indicator lock display is displayed by pushing the lock button push the lock button to clear display 4
- Operating the remote controller 4
- Timer off button press this button to initiate the auto off time sequence each press will increase the auto timed setting in 30 minutes increments when the setting time displays 10 00 each press will increase the auto timed setting 60 minutes increments to cancel the auto timed program simply adjust the auto off time to 0 00 4
- Turbo button push this button on cool mode the air con ditioner goes into powerful cooling operation push again to cancel the turbo function not availabe for the air conditioner without turbo function 4
- When replacing batteries do not use old batteries or a different type battery this may cause the remote control to malfunction 2 if you do not use the remote controller for several weeks remove the batteries otherwise battery leakage may damage the remote controller 3 the average battery life under normal use is about 6 months 4 replace the batteries when there is no answering beep from the indoor unit or if the transmission indicator light fails to light 5 do not dispose batteries as unsorted municipal waste collection of such waste separately for special treatment is necessary 4
- Экран 4
- After setting the timer off there will be a one half second delay before the remote controller transmits the signal to the air conditioner then after approximately another 2 seconds the signal h disappears and the set temperature will re appear on the digital display 5
- Automatic operation 5
- If the auto mode is not comfortable you may manually over ride the settings by using cool heat or fan modes 2 push the temp button to set the desired room temperature when in cooling mode the most comfortable settings are 21 c or above when in heating mode the most comfortable settings are 28 c or below 3 push the fan speed to select the fan mode of auto high med or low 4 push the on off button the operation lamp lights and the air conditioner start to operate as your settings push the on off button again to stop this unit operation 5
- In the auto mode the air conditioner can logically choose the mode of cool fan and heat by sensing the difference between the actual ambient room temperature and the set temperature on the remote controller 2 if the auto mode is not comfortable for you the desired mode can be selected manually 5
- Push the mode button to select dry 2 push the temp button to set the desired temperature from 21 c to 28 c 3 push the on off button the operation lamp lights and the air conditioner starts to operate in dry mode at low fan speed push the on off button again to stop this unit operation 5
- Push the timer off button again to set the time you want to stop the operation 5
- Push the timer off button and the remote controller will show timer off the last set time for the stopping operation and the signal h will be shown on the digital display area you are now ready to reset the time of the stop operation 5
- Push the timer on button then the remote controller shows timer on the last set time for the starting operation and the signal h will be shown on the digital display area you are now ready to reset the time to start the operation 1 push the timer on button again to set desired unit start time 1 after setting the timer on there will be a one half second delay before the remote controller transmits the signal to the air conditioner then after approximately another 2 seconds the signal h disappears and the set temperature will re appear on the digital display 5
- Push timer on button to set the auto on time and timer off button to set the auto off time 5
- Switch on the power and the operation indication lamp on the display panel of the indoor unit starts flashing and turns off after flashes for 6 times 1 use the mode button to select auto 2 push the temp button to set the desired room temperature the most comfortable temperature settings are between 21 c to 28 c 3 push the on off button to start the air conditioner the ope ration lamp on the display panel of the indoor unit lights the fan speed is automatically set and there are no fan speed indicators shown on the display panel of the remote controller 4 push the on off button again to stop the unit operation 5
- The fan mode can not be used to control the temperature while in this mode only steps 1 3 and 4 may be performed 5
- To set the starting time 5
- To set the stopping time 5
Похожие устройства
- Nocchi MULTINOX-VE+ 4-120 T Инструкция по эксплуатации
- Nocchi MULTINOX-VE+ 4-120 T Каталог
- Nocchi MULTINOX-VE+ 4-30 M Инструкция по эксплуатации
- Nocchi MULTINOX-VE+ 4-30 M Каталог
- Nocchi MULTINOX-VE+ 4-30 T Инструкция по эксплуатации
- Nocchi MULTINOX-VE+ 4-30 T Каталог
- Nocchi MULTINOX-VE+ 4-40 M Инструкция по эксплуатации
- Nocchi MULTINOX-VE+ 4-40 M Каталог
- Nocchi MULTINOX-VE+ 4-40 T Инструкция по эксплуатации
- Nocchi MULTINOX-VE+ 4-40 T Каталог
- Nocchi MULTINOX-VE+ 4-50 M Инструкция по эксплуатации
- Nocchi MULTINOX-VE+ 4-50 M Каталог
- Nocchi MULTINOX-VE+ 4-50 T Инструкция по эксплуатации
- Nocchi MULTINOX-VE+ 4-50 T Каталог
- Nocchi MULTINOX-VE+ 4-60 M Инструкция по эксплуатации
- Nocchi MULTINOX-VE+ 4-60 M Каталог
- Nocchi MULTINOX-VE+ 4-60 T Инструкция по эксплуатации
- Nocchi MULTINOX-VE+ 4-60 T Каталог
- Nocchi MULTINOX-VE+ 4-70 M Инструкция по эксплуатации
- Nocchi MULTINOX-VE+ 4-70 M Каталог
