TIMER OFF Button: Press this button to initiate the auto-off time
sequence. Each press will increase the auto-timed setting in 30
minutes increments. When the setting time displays 10:00, each
press will increase the auto-timed setting 60 minutes increments.
To cancel the auto-timed program, simply adjust the auto-off time
to 0:00
12
1
2
5
4
6
4
3

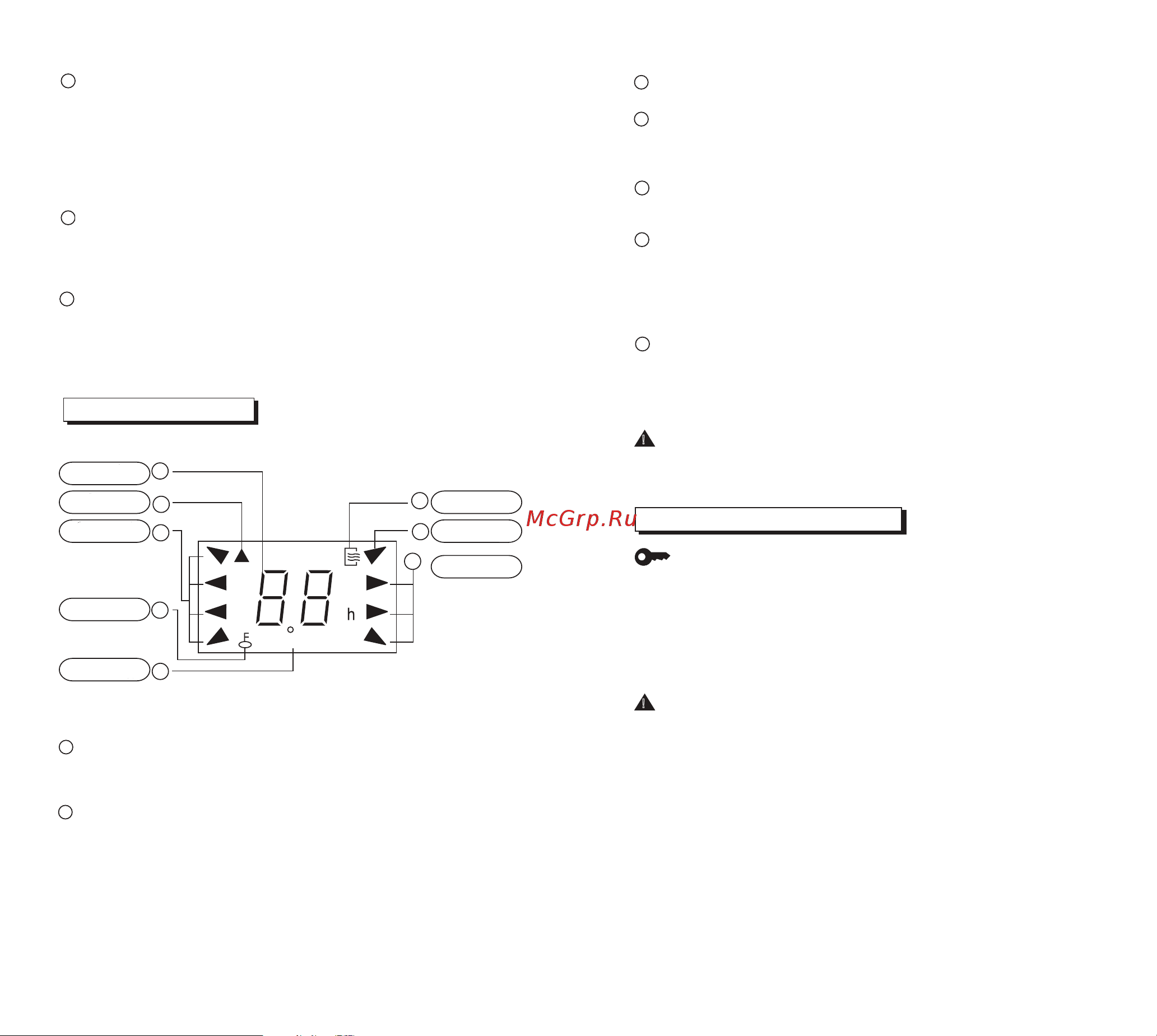

Indicators on Display Panel
Display Panel
TRANSMI-
SSION Indicator
OPERATION
MODE Indicator
LOCK Indicator
TIMER
DISPLAY Indicator
DIGITAL
DISPLAY area
ON/OFF Indicator
FAN SPEED Indicator
TIMER ON OFF
DIGITAL DISPLAY area: This area will show the set temperature
and, if in the TIMER mode, will show the ON and OFF settings of
the TIMER. If in the FAN mode, nothing is appeared.
TRANSMISSION Indicator: This indicator flashes one time
when remote controller transmits signals to the indoor unit.
Fig. 2
1
2
LOCK Button: When you press the recessed LOCK button, all
current settings are locked in and the remote controller does not
accept any operation except that of the LOCK. Press again to
cancel the LOCK mode.
13
4
TIMER DISPLAY Indicator: This display area shows the settings
of the TIMER. That is, if only the starting time of operation is set,
it will display the TIMER ON. If only the turning off time of operation
is set, it will display the TIMER OFF. If both operations are set,
it will show TIMER ON-OFF which indicates you have chosen
to set both the starting time and off time.
6
FAN SPEED Indicator: Press the FAN SPEED button to select
the desired fan speed setting (Auto-Low-Med-High). You selection
will be displayed in the LCD window except the Auto fan speed.
7
Operating the Remote Controller
The Remote Controller uses two alkaline dry batteries
(LR03X2).
1. To install the batteries, slide the back cover of the battery
compartment and install the batteries according the
direction (+and -)shown on the Remote Controller.
2. To replace the old batteries, use the same method as
mentioned above.
Install/Replace Batteries
NOTE: All signs shown in the Fig.2 is for the purpose of clear
presentation. But during the actual operation only the re-
lative functional signs are shown on the display panel.
!
LOCK Indicator: LOCK display is displayed by pushing the LOCK
button. Push the LOCK button to clear display.
OPERATION MODE Indicator: When press the MODE button,
it shows the current operating mode -- AUTO COOL DRY
HEAT (Cooling only model without) mode.
5
4
ON/OFF Indicator: This symbol appears when the unit is turned
on by the remote controller, and disappear when the unit is
turned off.
3
1. When replacing batteries, do not use old batteries or a different
type battery. This may cause the remote control
to malfunction.
2. If you do not use the remote controller for several weeks
remove the batteries. Otherwise battery leakage may damage
the remote controller.
3. The average battery life under normal use is about 6 months.
4. Replace the batteries when there is no answering beep from the
indoor unit or if the Transmission Indicator light fails to light.
5. Do not dispose batteries as unsorted municipal waste. Collection
of such waste separately for special treatment is necessary.
NOTE
TURBO Button: Push this button on COOL mode, the air con-
ditioner goes into powerful cooling operation. Push again to
cancel the TURBO function(Not availabe for the air conditioner
without TURBO function).
14
OPERATION
MODE Indicator
7
CLEAN AIR Button(on some models): When push this button,
the Ionizer or Plasma Dust Collector(depending on models) is
energized and will help to remove pollen and impurities from
the air.
15
3
TIMER OFF Button: Press this button to initiate the auto-off time
sequence. Each press will increase the auto-timed setting in 30
minutes increments. When the setting time displays 10:00, each
press will increase the auto-timed setting 60 minutes increments.
To cancel the auto-timed program, simply adjust the auto-off time
to 0:00
12
1
2
5
4
6
4
3
Indicators on Display Panel
Display Panel
TRANSMI-
SSION Indicator
OPERATION
MODE Indicator
LOCK Indicator
TIMER
DISPLAY Indicator
DIGITAL
DISPLAY area
ON/OFF Indicator
FAN SPEED Indicator
TIMER ON OFF
DIGITAL DISPLAY area: This area will show the set temperature
and, if in the TIMER mode, will show the ON and OFF settings of
the TIMER. If in the FAN mode, nothing is appeared.
TRANSMISSION Indicator: This indicator flashes one time
when remote controller transmits signals to the indoor unit.
Fig. 2
1
2
LOCK Button: When you press the recessed LOCK button, all
current settings are locked in and the remote controller does not
accept any operation except that of the LOCK. Press again to
cancel the LOCK mode.
13
4
TIMER DISPLAY Indicator: This display area shows the settings
of the TIMER. That is, if only the starting time of operation is set,
it will display the TIMER ON. If only the turning off time of operation
is set, it will display the TIMER OFF. If both operations are set,
it will show TIMER ON-OFF which indicates you have chosen
to set both the starting time and off time.
6
FAN SPEED Indicator: Press the FAN SPEED button to select
the desired fan speed setting (Auto-Low-Med-High). You selection
will be displayed in the LCD window except the Auto fan speed.
7
Operating the Remote Controller
The Remote Controller uses two alkaline dry batteries
(LR03X2).
1. To install the batteries, slide the back cover of the battery
compartment and install the batteries according the
direction (+and -)shown on the Remote Controller.
2. To replace the old batteries, use the same method as
mentioned above.
Install/Replace Batteries
NOTE: All signs shown in the Fig.2 is for the purpose of clear
presentation. But during the actual operation only the re-
lative functional signs are shown on the display panel.
!
LOCK Indicator: LOCK display is displayed by pushing the LOCK
button. Push the LOCK button to clear display.
OPERATION MODE Indicator: When press the MODE button,
it shows the current operating mode -- AUTO COOL DRY
HEAT (Cooling only model without) mode.
5
4
ON/OFF Indicator: This symbol appears when the unit is turned
on by the remote controller, and disappear when the unit is
turned off.
3
1. When replacing batteries, do not use old batteries or a different
type battery. This may cause the remote control
to malfunction.
2. If you do not use the remote controller for several weeks
remove the batteries. Otherwise battery leakage may damage
the remote controller.
3. The average battery life under normal use is about 6 months.
4. Replace the batteries when there is no answering beep from the
indoor unit or if the Transmission Indicator light fails to light.
5. Do not dispose batteries as unsorted municipal waste. Collection
of such waste separately for special treatment is necessary.
NOTE
TURBO Button: Push this button on COOL mode, the air con-
ditioner goes into powerful cooling operation. Push again to
cancel the TURBO function(Not availabe for the air conditioner
without TURBO function).
14
OPERATION
MODE Indicator
7
CLEAN AIR Button(on some models): When push this button,
the Ionizer or Plasma Dust Collector(depending on models) is
energized and will help to remove pollen and impurities from
the air.
15
