Climber 9.27/ Translation of the original instructions
TRACTION RELEASE DEVICE
The traction release device is located behind the seat; in case of emergency, to allow it to be towed or
moved by hand, move the lever outward (fig. 20). In the position shown (fig. 20A) the machine is in
working condition. Check that during working the hydraulic engine piston does not remain pressed down;
if necessary, adjust the nut (fig. 21).
DIFFERENTIAL LOCK ADJUSTMENT
The differential lock has to be activated when the pedal is half way of its travel (fig. 8). To adjust the
activation point of the differential lock use the screw (fig. 9).

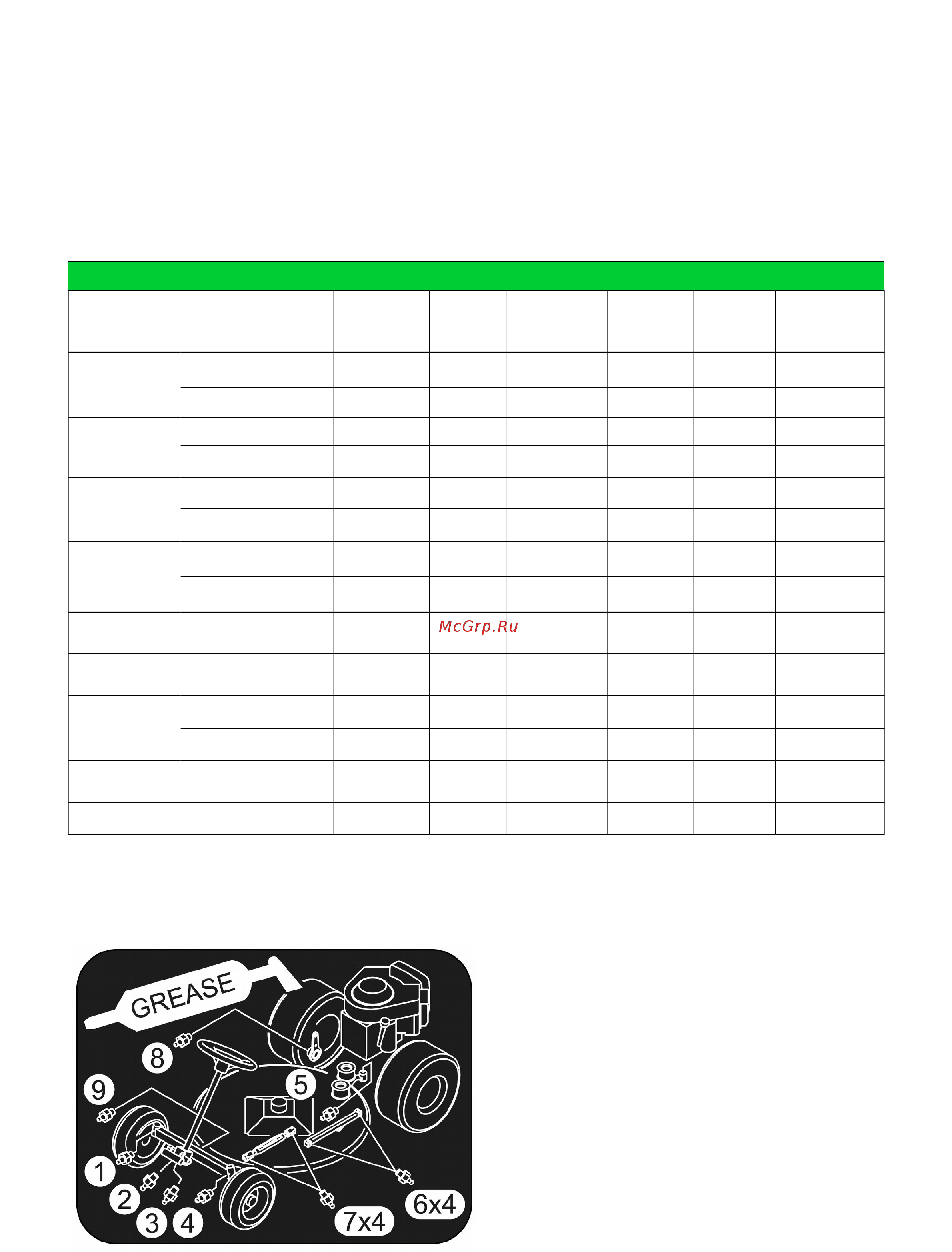

MAINTENACE SUMMARY TABLE
PROCEDURE EVERY 8
HOURS
AFTER
20
HOURS
EVERY 40
HOURS
EVERY
50
HOURS
EVERY
100
HOURS
EVERY
200
HOURS
Engine oil
check the level ●
change ● ●
Air filter
check ●
replace ٭
Spark plug
check/adjust ●
replace ●
Hydraulic
engine oil
check level ● ●
replace ●
Check that the engine intake
grid is clean
●
Check that engine cooling fins
and cylinders are clean
●
Gearbox oil
check the level
● ●
replace
٭
Check that blades are well-
sharpened and well-fixed
●
Lubricate with grease
●
● recommended procedure
٭ procedure to be carried out if necessary
LUBRICATION POINTS WITH GREASE
12
