Climber 9.27/ Translation of the original instructions
IMPROPER USE TO BE AVOIDED
29)Do not allow passengers to ride on the machine.
30)Do not allow under-age children to operate it; use is prohibited to children under 16 years old.
31)Do not operate the grass-cutter near to ditches or verges which could collapse under the weight of
the machine, especially when the surface is loose or wet.
32)Replace worn or damaged exhausts.
FURTHER SAFETY ADVICE
The above mentioned warnings could not be enough to avoid any risk, if the operator does not use the
present grass-cutter correctly. Therefore, for your safety we give you following advices:
33)The blade is very dangerous when rotating, never put hands or feet underneath the cutter deck.
34)Do not drive in reverse at high speed.
35)It is dangerous to operate the steering wheel abruptly with the engine at full power.
36)Fill the tank with fuel before starting the engine. Only refuel outdoors, always turn off the engine, keep
away from sparks or naked flames, do not smoke! Always replace the cap on the fuel tank and those on
fuel containers properly.
37)If the fuel tank has to be emptied, only do so outdoors.
38)Do not operate the grass-cutter over gravel which could become sucked up and drawn into the blade,
becoming very dangerous.
39)At the presence of children, hide the ignition key after using the machine.
40)CAUTION: to avoid the risk of fire, keep the engine compartment, exhaust, discharge outlets, battery,
tank area and fuel pipes free from grass, leaves, dirt etc.
41)Never store the machine with fuel in the tank inside a building where fumes may reach an open flame
or spark.
42)Disengage the cutter deck transmission, turn off the engine and disconnect the spark plugs:
a) before cleaning obstructed points.
b) before checking or repairing the brush cutter.
c) when the machine hits a foreign body (check the cutter deck to see if it is damaged).
d) if abnormal vibration occurs, stop and inspect the machine. Contact the nearest authorized
service centre if you need help.
IDENTIFICATION AND SERVICING

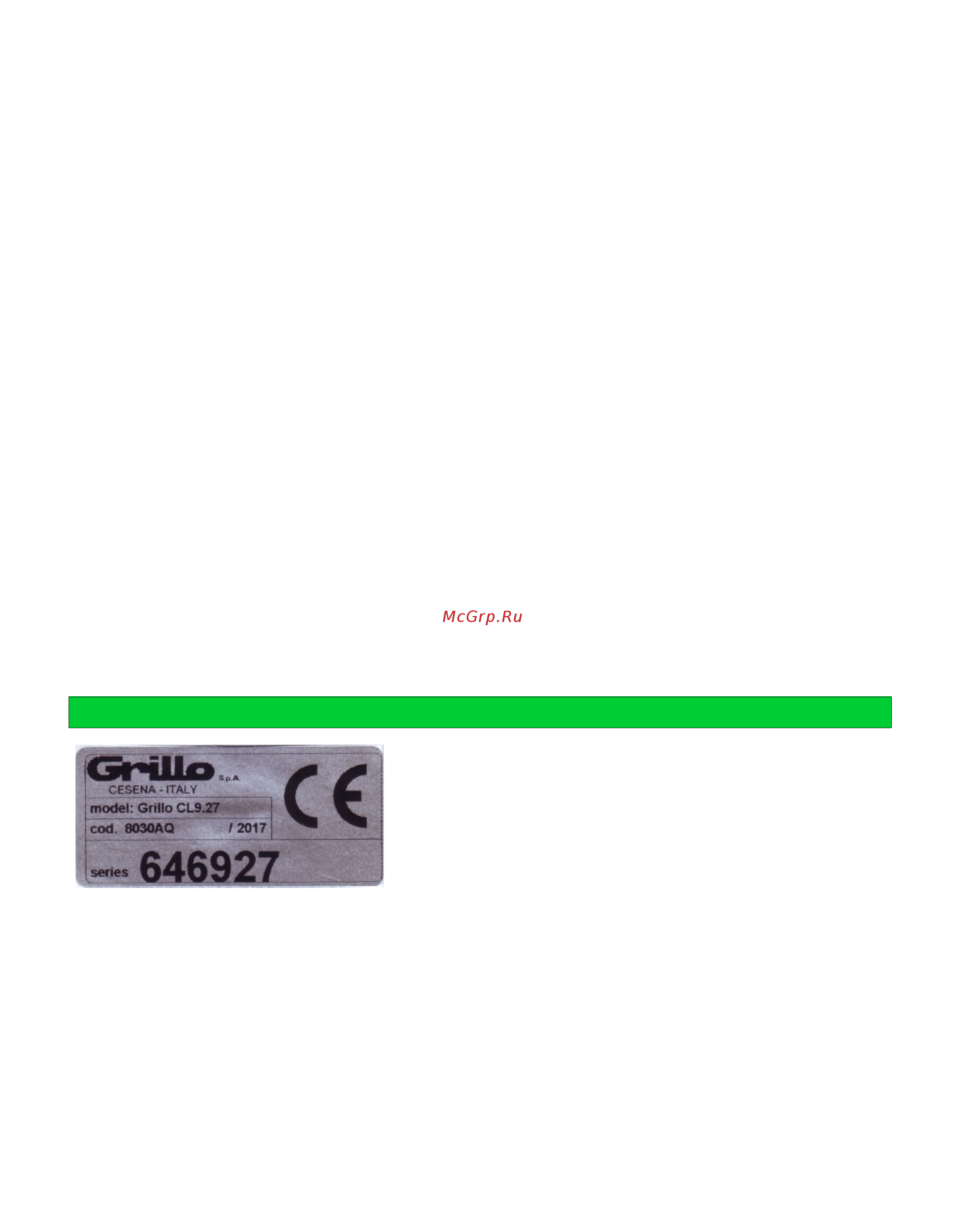

Climber 9.27 has a label, located on the steering
wheel column, indicating the serial no of the
machine.
TECHNICAL ASSISTANCE
This manual provides instructions for use and basic maintenance of the brush cutter by the user. For
operations that are not described in this manual, contact your Area Dealer.
SPARE PARTS
Only use original spare parts. These are the only parts that ensure safety and interchangeability. Always
quote the machine’s serial number and the code number of the part to be replaced when ordering spare
parts. For engine parts, follow the indications given in the specific manual.
WARRANTY
The guarantee is given in compliance with the current law. The dealer will have to give the client a copy
of the registration certificate of the machine, which they will print up from the Grillo website. For the
engine the guarantee of the relative manufacturers apply.
