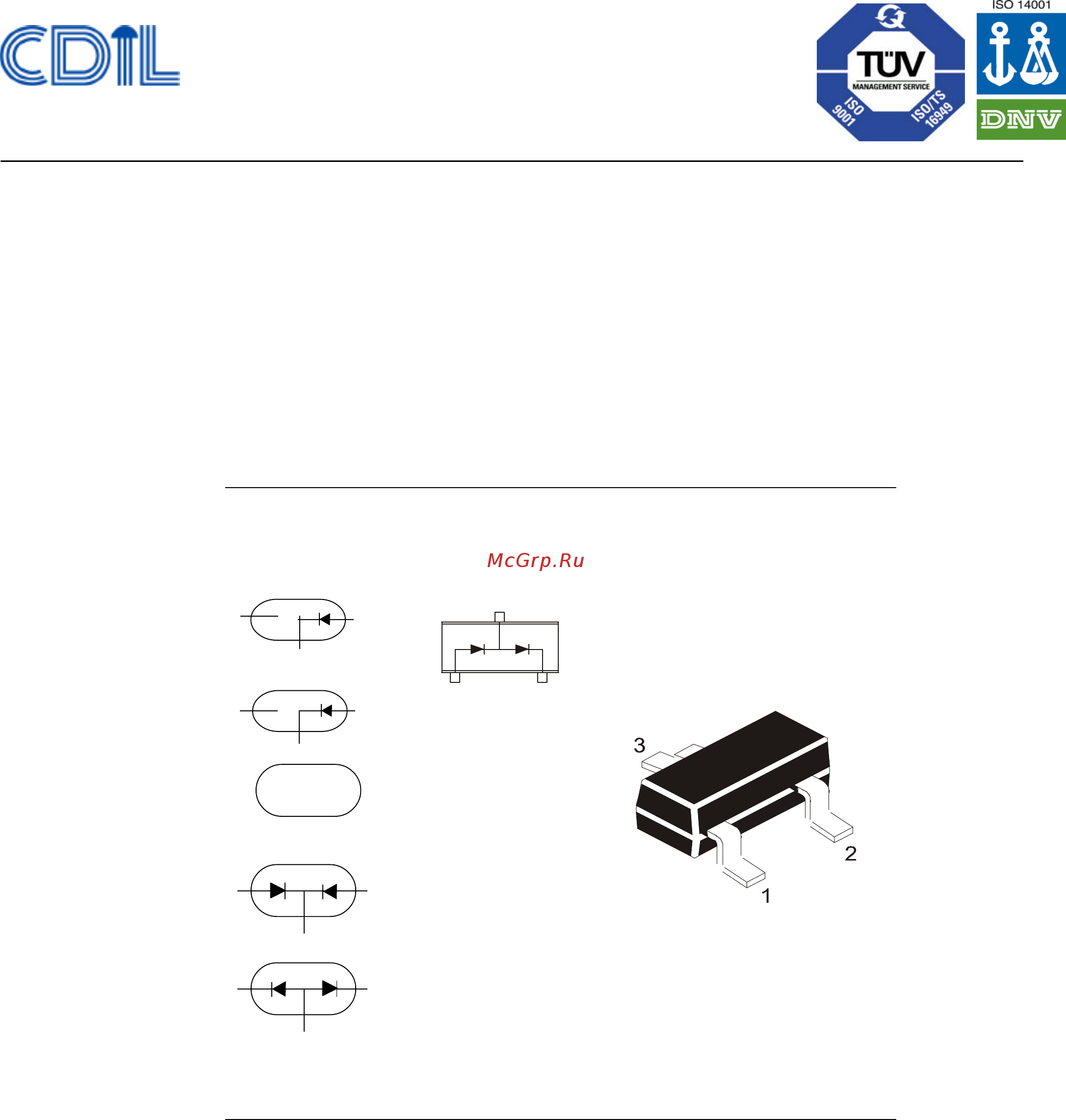

Continental Device India Limited Data Sheet Page 1 of 5
SILICON PLANAR EPITAXIAL HIGH SPEED DIODES
CMBD1201, 1202, are all single diodes
CMBD1204 is a dual diode, common cathode
CMBD1205 is a dual diode, common anode
ABSOLUTE MAXIMUM RATINGS (per diode)
Continuous reverse voltage V
R
max. 75 V
Repetitive peak reverse voltage V
RRM
max. 100 V
Repetitive peak forward current I
FRM
max. 500 mA
Forward current I
F
max. 215 mA
Junction temperature T
j
max. 150 ° C
Forward voltage at I
F
= 10 mA V
F
< 0.855 V
CMBD1201, 1202, 1203
CMBD1204, 1205
Marking
CMBD1201 – 24
CMBD1202 – 25
3
12
CMBD1201
CMBD1204 – 27
CMBD1205 – 28
21
CMBD1202
3
12
3
CMBD1204
12
3
CMBD1205
SOT-23 Formed SMD Package
Continental Device India Limited
An ISO/TS 16949, ISO 9001 and ISO 14001 Certified Company
CMBD1201_1205 Rev_1 220808E
3
Pin Configuration
1 = ANODE
2 =
3 =
CATHODE
CATHODE
ANODE/
1
2
CMBD1203
CMBD1203 - 26
CMBD1203 is a dual diode, in series
