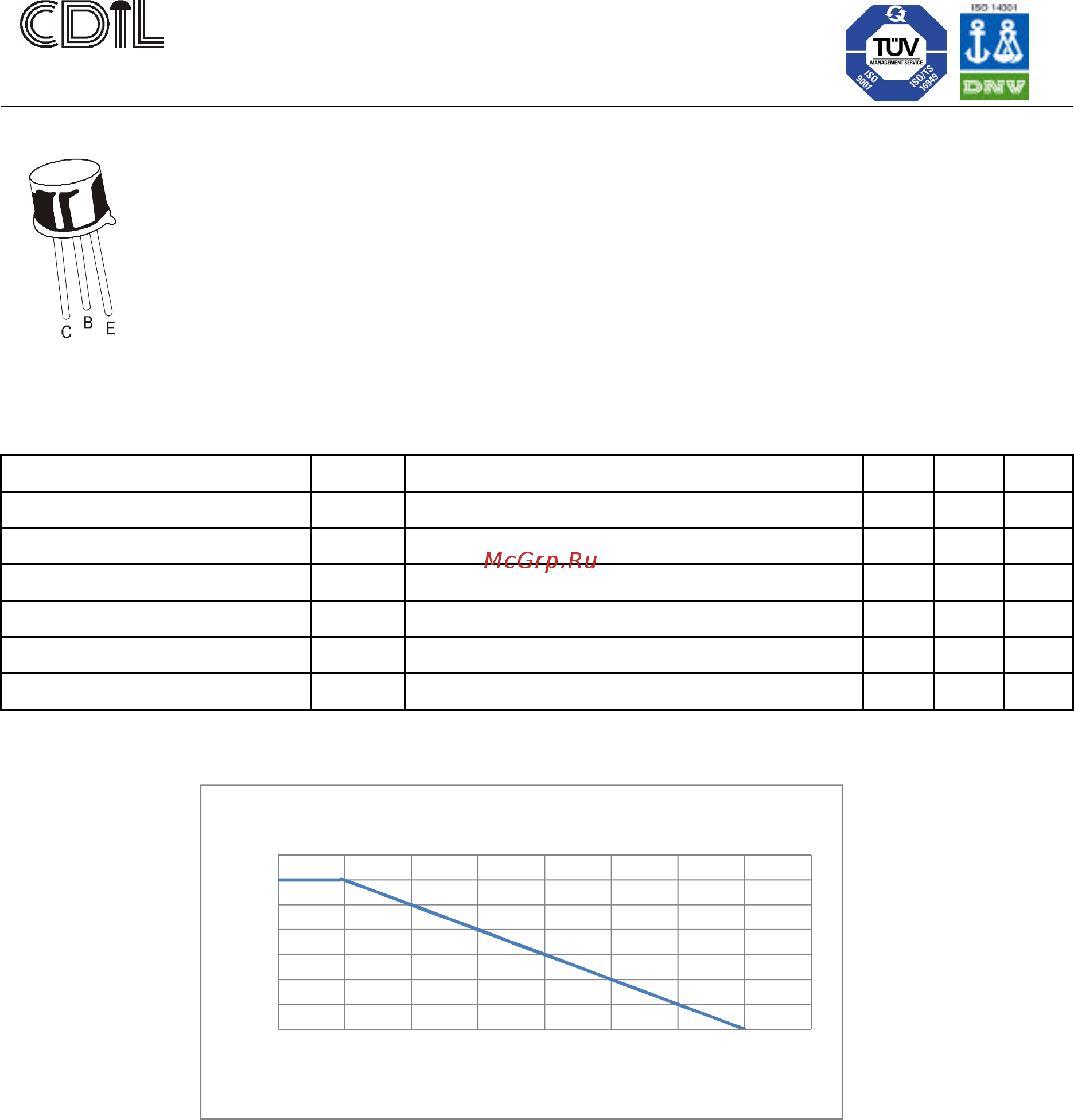

Continental Device India Limited
An ISO/TS 16949, ISO 9001 and ISO 14001 Certified Company
NPN SILICON PLANAR TRANSISTORS
2N5336 / 2N5337
2N5338 / 2N5339
TO-39
Metal Can Package
ELECTRICAL CHARACTERISTICS (T
a
=25ºC unless specified otherwise)
SMALL SIGNAL CHARACTERISTICS
DESCRIPTION SYMBOL MIN MAX UNIT
Transition Frequency
f
T
30 MHz
Output Capacitance
C
ob
250 pF
Input Capacitance
C
ib
1000 pF
ON Time
t
ON
200 ns
Storage Time
t
s
2
µs
Fall Time
t
f
200 ns
TEST CONDITION
V
CE
=10V, I
C
=0.5A, f=10MHz
V
CB
=10V, I
E
=0, f=0.1MHz
V
EB
=2V, I
C
=0, f=0.1MHz
V
CC
= 40V, I
C
= 2A, I
B1
= 0.2A
V
CC
= 40V, I
C
= 2A, I
B1
= I
B2
= 0.2A
V
CC
= 40V, I
C
= 2A, I
B1
= I
B2
= 0.2A
0
1
2
3
4
5
6
7
0 25 50 75 100 125 150 175 200
Power Dissipation (W)
Junction Temperature (°C)
Power Derating Curve
2N5336_5339 Rev_2 21032014E
Continental Device India Limited
Data Sheet Page 2 of 4
