CDIL 2N5416-CDI [3/4] Packing detail

2N 5415, 16

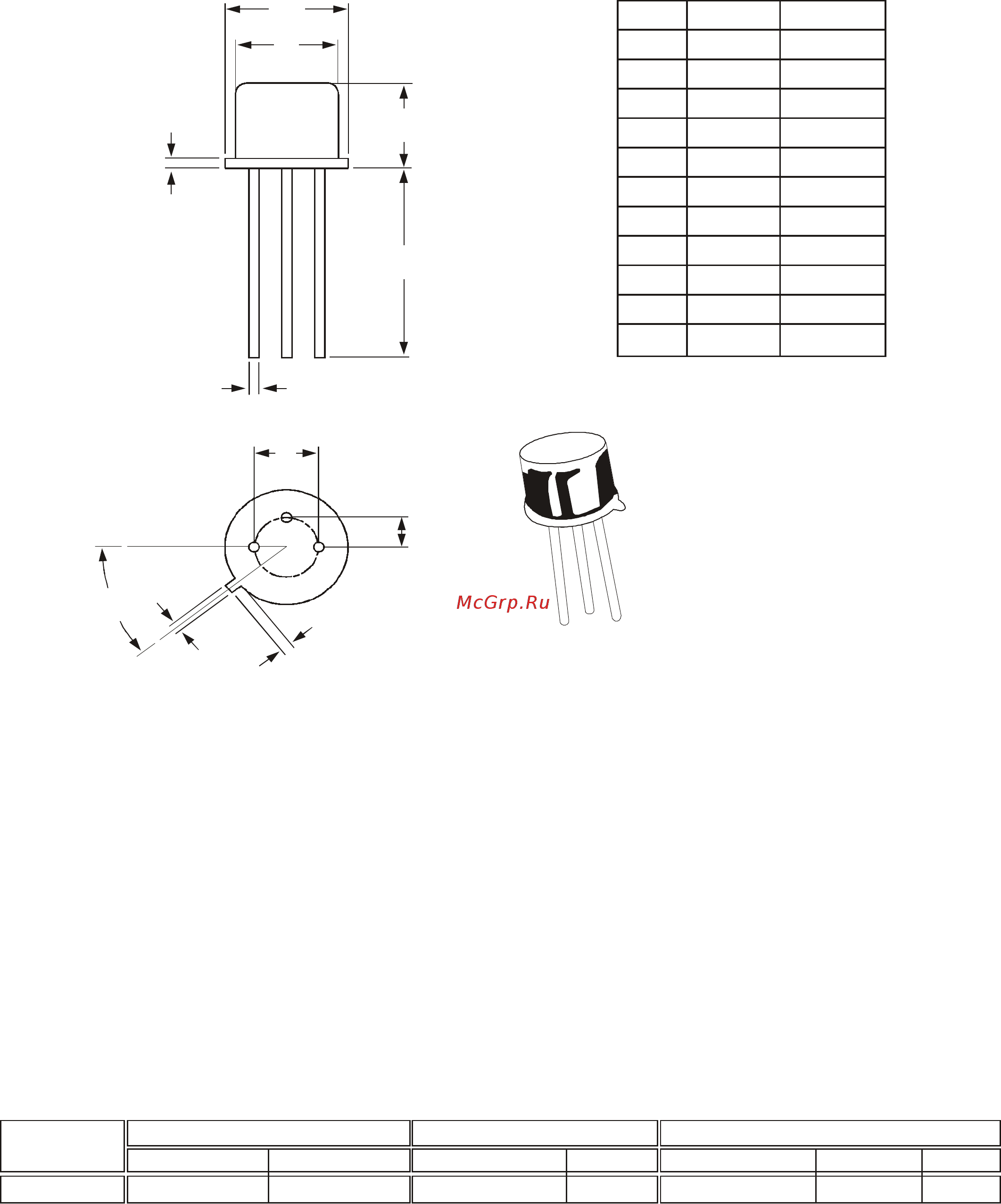

TO-39

Metal Can Package

TO-39 Metal Can Package

PIN CONFIGURATION

1. EMITTER

2. BASE

3. COLLECTOR

DIM MIN MAX

All dimensions are in mm

A 8.50 9.39

B 7.74 8.50

C 6.09 6.60

D 0.40 0.53

E—0.88

F 2.41 2.66

G 4.82 5.33

H 0.71 0.86

J 0.73 1.02

K12.70—

L 42 DEG 48 DEG

TO-39 500 pcs/polybag 540 gm/500 pcs 3" x 7.5" x 7.5" 20K 17" x 15" x 13.5" 32K 40 kgs

PACKAGE

Net Weight/Qty

Details

STANDARD PACK INNER CARTON BOX

Qty

OUTER CARTON BOX

Qty Gr WtSize Size

Packing Detail

Continental Device India Limited

Data Sheet Page 3 of 4
