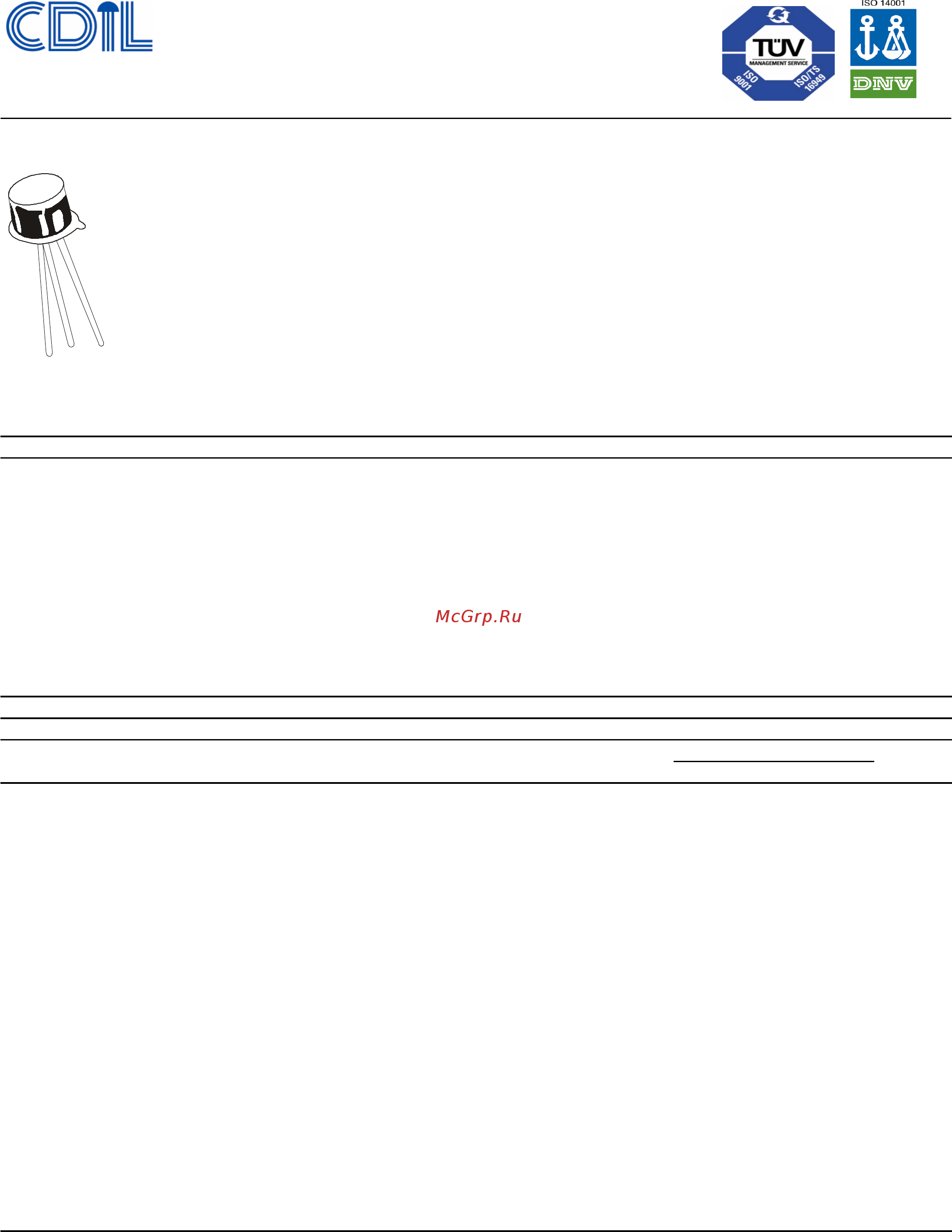

PNP SILICON PLANAR SWITCHING TRANSISTORS 2N2906A
2N2907A
TO-18
Switching And Linear Application DC to VHF Amplifier Applications
ABSOLUTE MAXIMUM RATINGS
DESCRIPTION SYMBOL 2N2906A, 07A UNIT
Collector -Emitter Voltage
VCEO 60 V
Collector -Base Voltage
VCBO 60 V
Emitter -Base Voltage
VEBO 5.0 V
Collector Current Continuous
IC 600 mA
Power Dissipation @Ta=25 degC
PD 400 mW
Derate Above 25deg C
2.28 mW/deg C
@ Tc=25 degC
PD 1.8 W
Derate Above 25deg C
10.3 mW/deg C
Operating And Storage Junction
Tj, Tstg deg C
Temperature Range
ELECTRICAL CHARACTERISTICS (Ta=25 deg C Unless Otherwise Specified)
DESCRIPTION SYMBOL TEST CONDITION VALUE
MIN MAX UNIT
Collector -Emitter Voltage
VCEO* IC=10mA,IB=0 60 - V
Collector -Base Voltage
VCBO IC=10uA.IE=0 60 - V
Emitter-Base Voltage
VEBO IE=10uA, IC=0 5.0 - V
Collector-Cut off Current
ICBO VCB=50V, IE=0 - 10 nA
Ta=150 deg C
VCB=50V, IE=0 - 10 uA
ICEX VCE=30V, VBE=0.5V - 50 nA
Base Current
IB VCE=30V, VBE=0.5V - 50 nA
Collector Emitter Saturation Voltage
VCE(Sat)* IC=150mA,IB=15mA - 0.4 V
IC=500mA,IB=50mA 1.6 V
Base Emitter Saturation Voltage
VBE(Sat) * IC=150mA,IB=15mA - 1.3 V
IC=500mA,IB=50mA - 2.6 V
2N2906A 2N2907A
DC Current Gain
hFE IC=0.1mA,VCE=10V >40 >75
IC=1mA,VCE=10V >40 >100
IC=10mA,VCE=10V >40 >100
IC=150mA,VCE=10V* 40-120 100-300
IC=500mA,VCE=10V* >40 >50
Continental Device India Limited
Data Sheet
Page 1 of 3
Continental Device India Limited
An ISO/TS 16949, ISO 9001 and ISO 14001 Certified Company
