ELECTRICAL CHARACTERISTICS (Ta=25 deg C Unless Otherwise Specified) 2N2906A-07A
DESCRIPTION SYMBOL TEST CONDITION MIN MAX UNIT
DYNAMIC CHARACTERISTICS
Transition Frequency
ft ** IC=50mA, VCE=20V,f=100MHz 200 - MHz
Out-Put Capacitance
Cob VCB=10V, IE=0,f=100kHz - 8.0 pF
Input Capacitance
Cib VBE=2V, IC=0, f=100kHz - 30 pF
Switching Time
Delay time
td IC=150mA,IB1=15mA - 10 ns
Rise time
tr VCC=30V - 40 ns
Turn-On Time
ton 45 ns
Storage time
ts IC=150mA, IB1=IB2=15mA - 80 ns
Fall time
tf VCC=6V - 30 ns
Turn-Off Time
toff - 100 ns
*Pulse Test :-Pulse Width=300us, Duty Cycle=2%
**ft is defined as the frequency at which \hfe/ extrapolates to unity

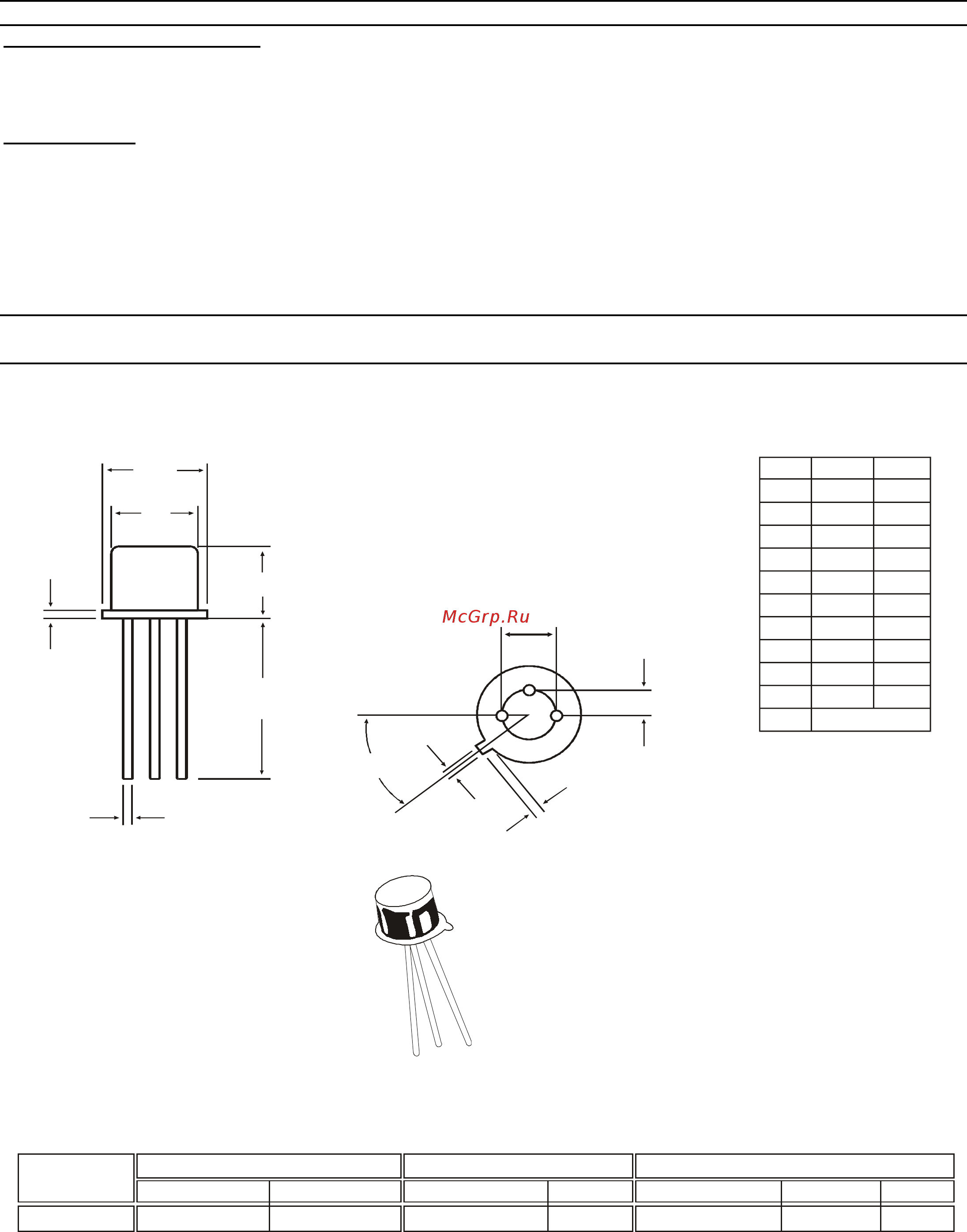

TO-18 Metal Can Package
G
1
2
3
H
J
L
F
A
D
B
E
C
K
DIM MIN MAX
All diminsions in mm.
A 5.24 5.84
B 4.52 4.97
C 4.3 1 5.3 3
D 0.40 0.53
E—0.76
F—1.27
G—2.97
H 0.9 1 1.1 7
J 0.71 1.21
K12.70 —
L45 DEG
PIN CONFIGURATION
1. EM ITTER
2. BASE
3. COLLECTOR
1
2
3
TO-18
1K/polybag
350 gm/1K pcs
3" x 7.5" x 7.5" 5.0K 17" x 15" x 13.5" 80.0K
34 kgs
PACKAGE
Net Weight/Qty
Details
STANDARD PACK INNER CARTON BOX
Qty
OUTER CARTON BOX
Qty Gr WtSize Size
Packing Detail
Continental Device India Limited
Data Sheet
Page 2 of 3
