3
1
8
• Hydronic Systems • Chillers 10
• Chillers • R-410A • EWYQ-ACV3P

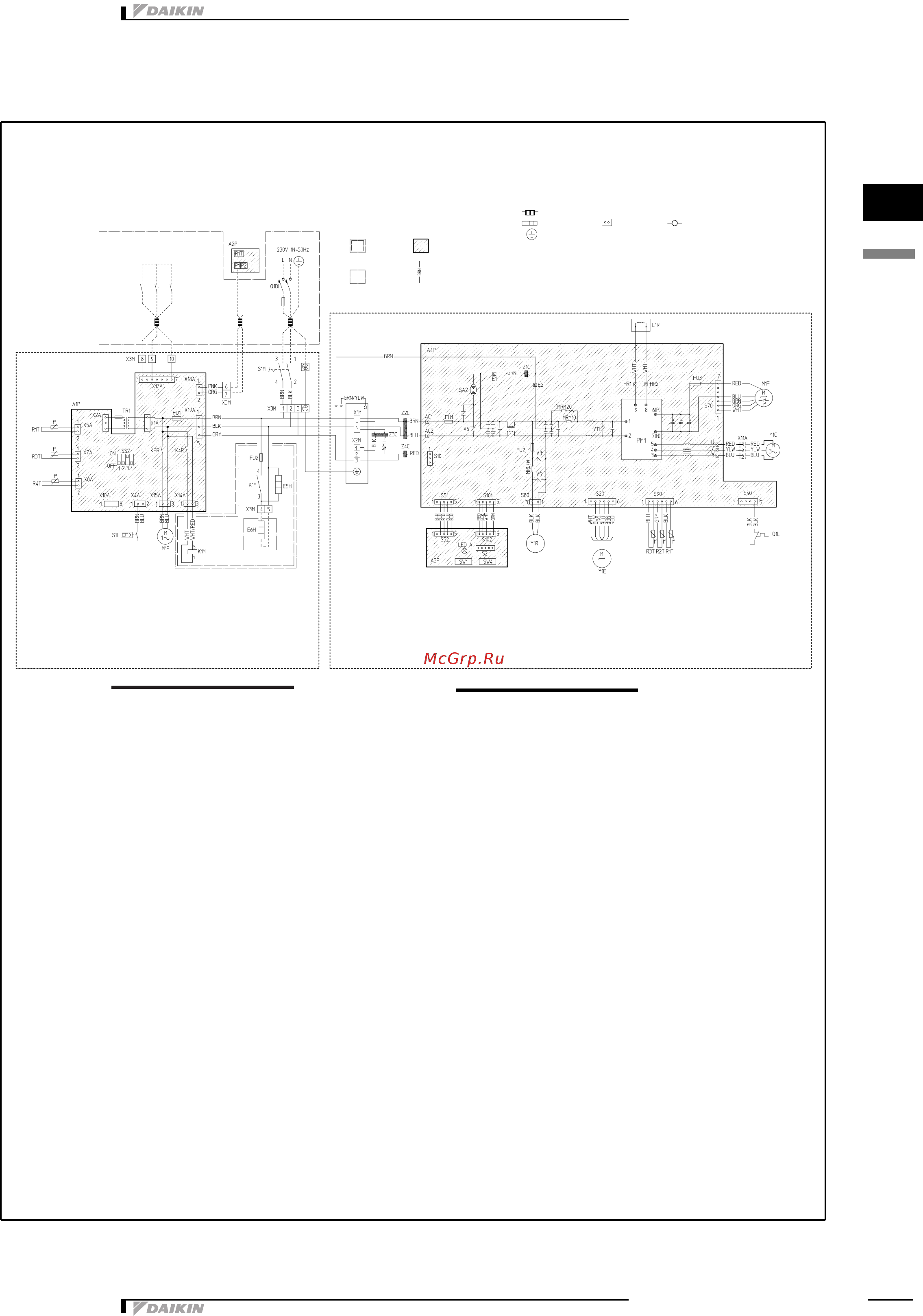

8 Wiring diagram
8 - 1 Wiring diagram
3TW57536-1A
EWAQ/EWYQ AC
Q1Dl Earth leakage protector
TR1 Transformer 24V for PCB
R4T Inlet water thermistor
R3T Refrigerant liquid side thermistor
R1T Outlet water heat exchanger
S1L Flowswitch
M1P Pump
A2P Remocom PCB (indoor)
A1P Main PCB
S1M Mainswitch
FU1 Fuse 3.15A T 250V
FU2 Fuse 5A 250V
X1A,X2A Connector
X4A,X5A Connector
X7A,X8A Connector
X10A,X15A Connector
X17A,X18A Connector
X19A,X20A Connector
E5H Heatertape
E6H Heatertape (Field supply)
SS2 Dipswitch
K1M Relay
X3M Terminal strip
User
interface
Power supply
Sheet metal
(Outdoor) (Discharge)
(Condensor)
see note 6
Notes:
1 This wiring diagram only applies to the outdoor unit
2
: Field wiring
3
: Terminal strip : Connector : Terminal
: Protective earth
4 Do not operate the unit by short-circuiting protection devices Q1L, S1L
5 BLK: Black / WHT: White / RED: Red / BLU: Blue / PINK: Pink / YLW: Yellow / BRN:
Brown / GRY: Grey / GRN: Green / ORG: Orange / VIO: Violet
6 When the remote ON/OFF, remote heating and remote cooling function is not
used, apply wire bridge between terminals 8, 9 and 10.
Z1C∼Z4C Ferrite core
X1M,X2M Terminal strip
Y1E Electronic expansion valve coil
V2,V3,V5,V6,V11 Varistor
SA2 Surge arrester
FU1 Fuse 30A 250V
FU2 Fuse 3.15A 250V
FU3 Fuse 3.15A 250V
AC1,AC2
U,V,W,X11A Connector
E1,E2
HR1,HR2 Connector
MRM10,MRM20 Magnetic relay
MRC/W Magnetic relay
R1T∼R3T Thermistor
S2∼S102 Connector
LED A Pilot lamp
L Live
N Neutral
SW1 Forced operation on/off SW (SW1)
SW4 Local setting SW (SW4)
M1C Compressor motors
M1F Fan motor
L1R Reactor
Q1L Overload protector
PM1 Power module
PCB1,2 Printed circuit board
Y1R Reversing solenoid valve coil
Sheet metal Terminal strip fixed plate
Option
Field wiring
PCB
Wire colour
OP10
(Option heatertape)
Remote
heating
cooling
On/Off
