![Daikin EWWD600DJYNN [39/58] Fig 14 picture of fr3200 compressor](/img/pdf.png)
Daikin EWWD600DJYNN [39/58] Fig 14 picture of fr3200 compressor
![Daikin EWWD600DJYNN [39/58] Fig 14 picture of fr3200 compressor](/views2/1656675/page39/bg27.png)
D - KIMWC00211-09EN - 39/58

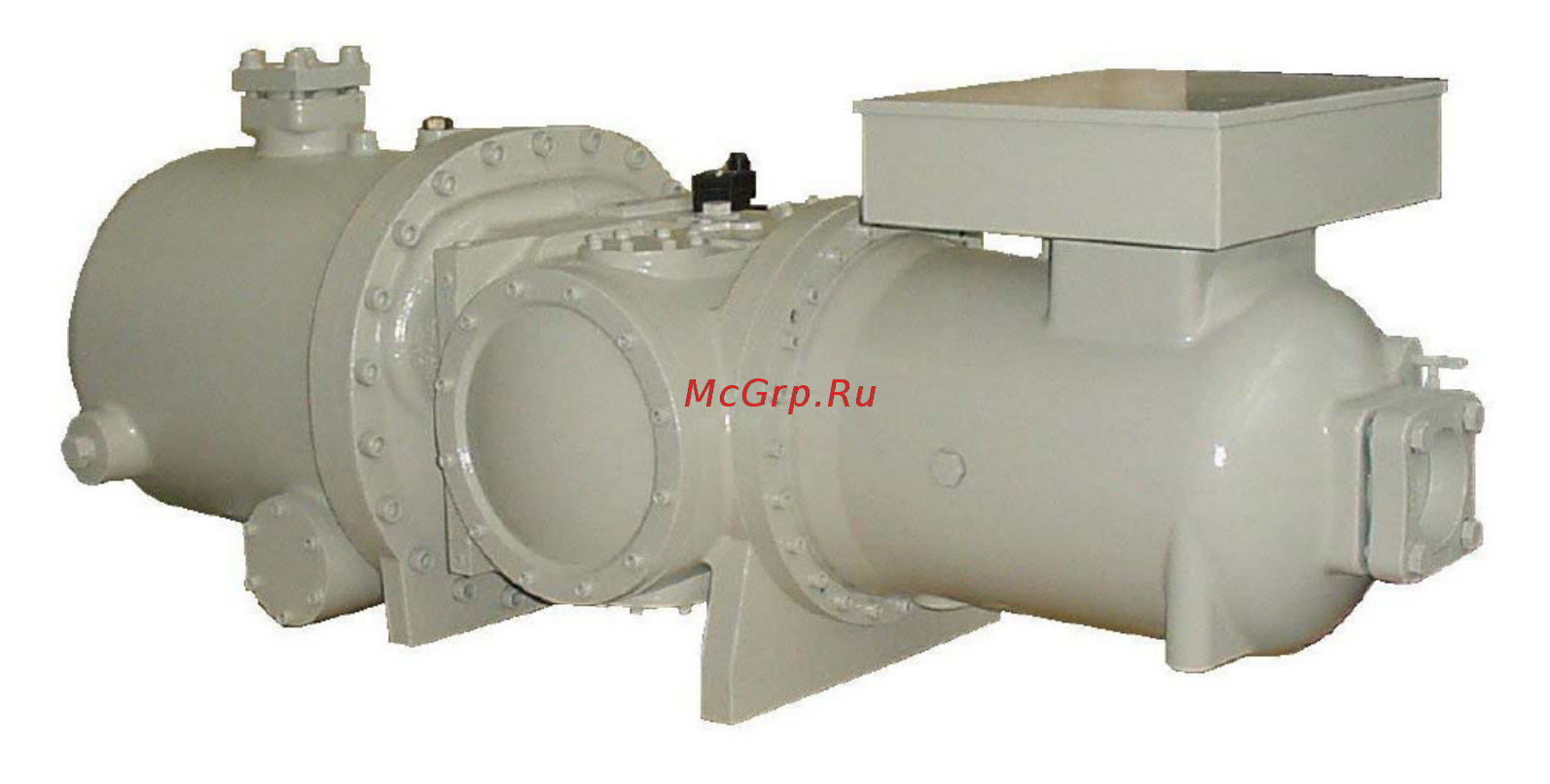

Fig. 14 Picture of Fr3200 compressor
In the Fr3200. series compressor, access to internal parts is allowed by two covers positioned sidewise.
Compression process
With the singlescrew compressor the suction, compression and discharge process takes place in a continuous manner
thanks to the upper satellite. In this process the suction gas penetrates into the profile between the rotor, the teeth of the
upper satellite and the compressor body. The volume is gradually reduced by compression of the refrigerant. The
compressed gas under high pressure is thus discharged into the builtin oil separator. In the oil separator, the gas/oil
mixture and the oil are collected in a cavity in the lower part of the compressor, where they are injected into the
compression mechanisms in order to guarantee compession’s sealing and lubrication of the ball bearings.
