Daikin EWADC19C-SR [90/96] Dimensional drawings
![Daikin EWADC19C-SR [90/96] Dimensional drawings](/views2/1658333/page90/bg5a.png)
90

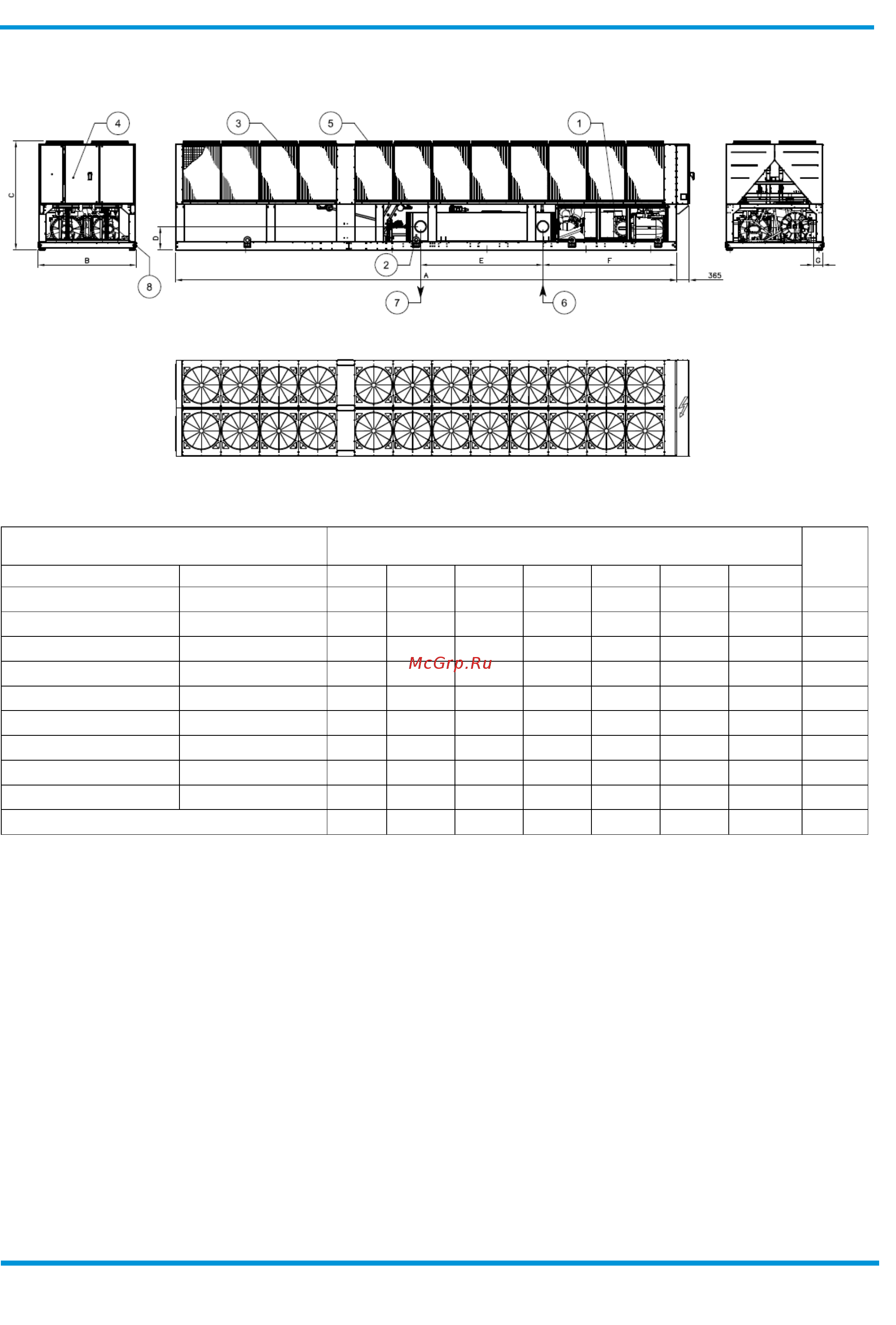

EWAD-C- (3 circuits)
Drawing is for illustration only. Please refer to the table below for unit dimensions.
EWAD~C-
Dimensions (mm)
Fans
Size Size A B C D E F G
EWADC14÷C15C-SS/SL EWADC13÷C14C-SR 2285 10185 2540 4440 2360 540 285 Nr 20
EWADC16÷C17C-SS/SL EWADC15÷C16C-SR 2285 11085 2540 5340 2360 540 285 Nr 22
EWADC18C-SS/SL EWADC17C-SR 2285 11085 2540 4780 2840 540 210 Nr 22
EWADC19÷C20C-SS/SL EWADC18÷C19C-SR 2285 11985 2540 5680 2840 540 210 Nr 24
EWADC14C-XS/XL EWADC14C-XR 2285 11985 2540 5680 2910 540 285 Nr 24
EWADC15÷C16C-XS/XL EWADC15÷C16C-XR 2285 11985 2540 5680 2840 540 210 Nr 24
EWADC17C-XS/XL EWADC17C-XR 2285 12885 2540 6580 2840 540 210 Nr 26
EWADC18C-XS/XL EWADC18C-XR 2285 13785 2540 7480 2840 540 210 Nr 28
EWADC19C- XS/XL EWADC19C-XR 2285 14685 2540 8380 2840 540 210 Nr 30
EWADH14÷H15C-XS/XL/XR 2285 14685 2540 8380 2840 540 210 Nr 30
LEGEND
1. Compressor
2. Evaporator
3. Condenser coil
4. Electrical panel
5. Fan
6. Evaporator Water inlet
7. Evaporator Water outlet
8. Slot for power and control connection
DIMENSIONAL DRAWINGS
